FUEL TANK ('76-'77 S2/S3)

KZ400S2 SPECIAL 1976 USA CANADA

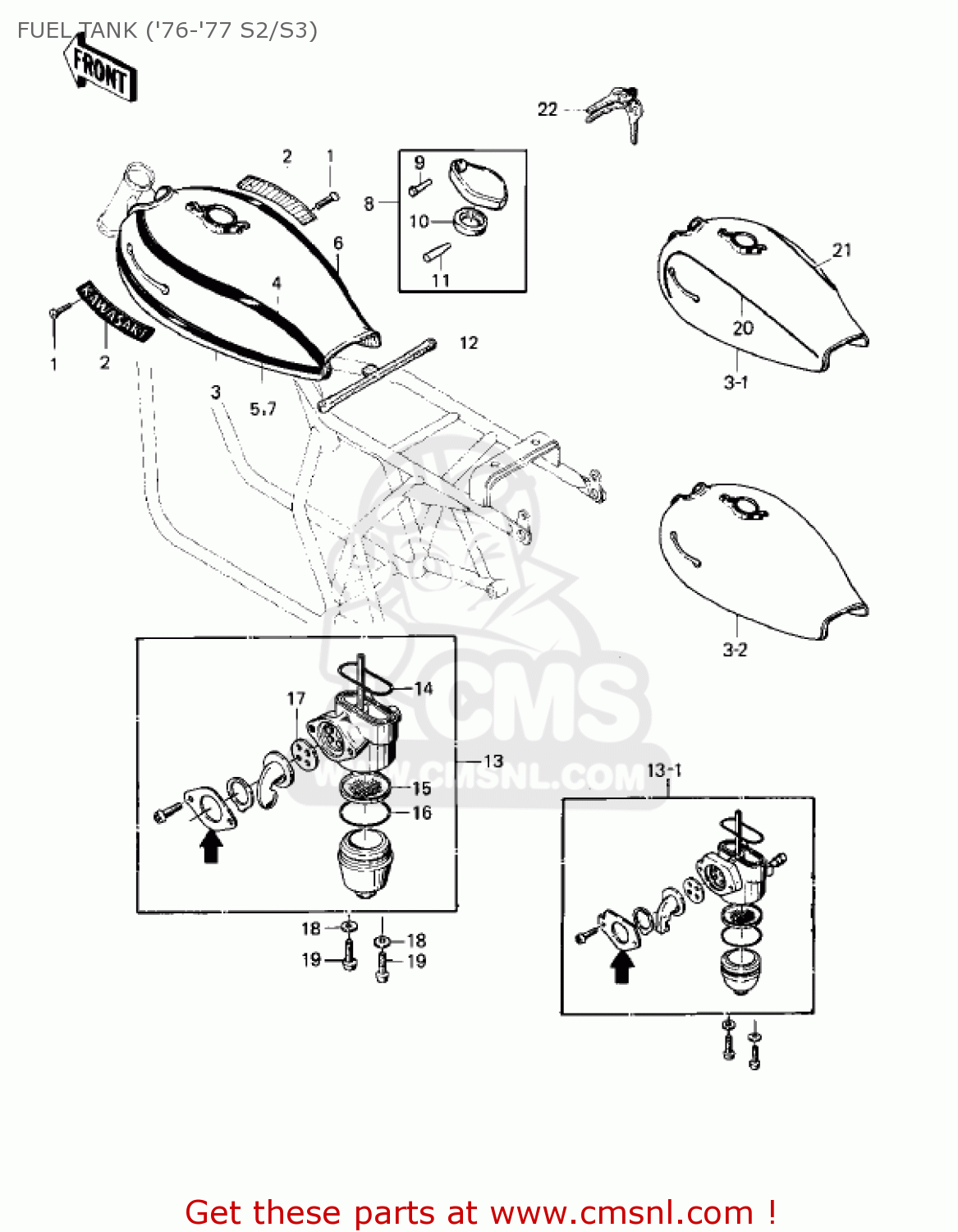

Fuel tank ('76-'77 s2/s3) diagram KZ400S2 SPECIAL 1976 USA CANADA

FUEL TANK ('76-'77 S2/S3) KZ400S2 SPECIAL 1976 USA CANADA

FUEL TANK ('76-'77 S2/S3) KZ400S2 SPECIAL 1976 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

221C0306
ref: 1

SCREW-CSR-CROS

€ 0.50

2

560141014
ref: 2

EMBLEM,FUEL TANK,RH

€ 44.00

3

510011094G
ref: 3
KZ400-S2

FUEL TANK,METALLIC PERMANENT RED

€ 1,463.50

3-1

510011214G
ref: 3-1

FUEL TANK,METALLIC PERMANENT RED

€ 1,085.00

3-2

510011244X
ref: 3-2
KZ-400-S3

FUEL TANK,CANDY ORIENT BLUE

€ 1,163.50

4

56027469SP
ref: 4
*

*** N.L.A.*** (Canada)

€ 0.00

5

56027470SP
ref: 5
*

*** N.L.A.*** (Canada)

€ 0.00

6

56027471SP
ref: 6
*

*** N.L.A.*** (Canada)

€ 0.00

7

56027472SP
ref: 7
*

*** N.L.A.*** (Canada)

€ 0.00

8

51048012
ref: 8

CAP-ASSY-TANK,FUEL

€ 72.00

9

92043126
ref: 9

PIN,3X27

€ 2.50

10

51059008
ref: 10

GASKET,FUEL TANK CAP (NAS)

€ 7.00

11

92043127
ref: 11

PIN,CAP HINGE

€ 3.00

12

92072042
ref: 12

BAND,FUEL TANK

€ 9.00

13

51023051
ref: 13
KZ-400-S2

COCK ASSY,FUEL

€ 67.50

13-1

51023060
ref: 13-1
KZ-400-S3

TAP ASSY,FUEL

€ 65.00

14

51039007
ref: 14

'0'RING,FUEL COCK JNT

€ 3.00

15

51038010
ref: 15

STRAINER,FUEL

€ 3.50

16

51039009
ref: 16

'0'RING,FUEL COCK CUP

€ 2.00

17

92065099
ref: 17

GASKET,FUEL TAP CUP (NAS)

€ 8.50

18

92065096
ref: 18

GASKET,FUEL COCK (NAS)

€ 3.00

19

220B0635
ref: 19

SCREW-PAN HEAD,6X35

€ 1.00

20

56029100SP
ref: 20
USE FOR 51001-121-4G

*** N.L.A.*** (Canada)

€ 0.00

21

56029101SP
ref: 21
USE FOR 51001-121-4G

*** N.L.A.*** (Canada)

€ 0.00
