CRANKCASE ('75 S)
KZ400S2 SPECIAL 1976 USA CANADA

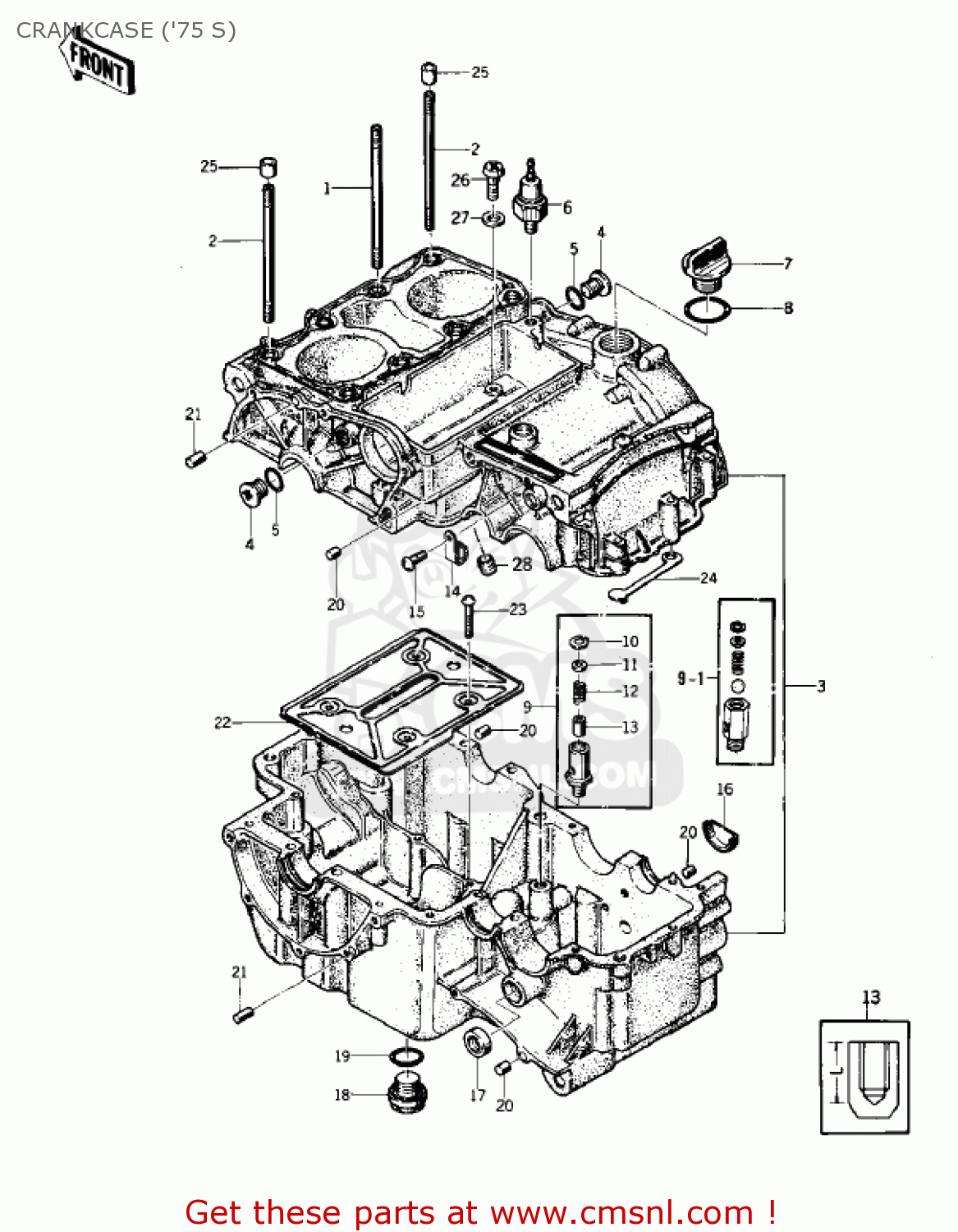

Crankcase ('75 s) diagram KZ400S2 SPECIAL 1976 USA CANADA
CRANKCASE ('75 S) KZ400S2 SPECIAL 1976 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
92004052
ref: 1
STUD,8X201
€ 3.00
2
92004053
ref: 2
STUD,8X190
€ 3.00
3
14001102
ref: 3
CRANKCASE SET,W/STUD
€ 1,025.50
3
14001102
ref: 3
INCL PARTS MARKED
CRANKCASE SET,W/STUD
€ 1,025.50
4
92066067
ref: 4
PLUG
€ 4.00
4
92066067
ref: 4
PLUG
€ 4.00
5
92055073
ref: 5
RING-O,13.5MM
€ 6.50
6
270101157
ref: 6
SWITCH,OIL PRESSURE
€ 27.50
7
16115013
ref: 7
PLUG-OIL FILLER
€ 13.50
8
92055049
ref: 8
'0'RING,31MM
€ 2.50
9
161301001
ref: 9
- E/NO. 027555
VALVE-ASSY-RELIEF
€ 28.50
9-1
161301001
ref: 9-1
E/NO. 027556 -
VALVE-ASSY-RELIEF
€ 28.50
10
?
ref: 10
?
11
92026097
ref: 11
USE 16130-1001
SPACER,RELEAF VALVE
€ 1.00
12
16133003
ref: 12
USE 16130-1001
SPRING,RELEAF VALVE
€ 1.50
13
16126002
ref: 13
USE 16130-1001
PISTON,RELEAF VALVE
€ 7.00
14
21126008
ref: 14
CLAMP,WIRING HARNESS
€ 3.00
14
21126008
ref: 14
CLAMP,WIRING HARNESS
€ 3.00
15
220B0612
ref: 15
SCREW-PAN HEAD,6X12
€ 1.00
16
14015005
ref: 16
RECEIVER,OIL
€ 8.50
17
92051005A
ref: 17
FOR 14001-071
OIL SEAL,TB13225.5
€ 5.50
18
920011183
ref: 18
FOR 14001-071
BOLT,OIL DRAIN
€ 37.50
18
920661174
ref: 18
FOR 14001-102
PLUG,OIL DRAIN,12X15
€ 4.00
19
670B2022
ref: 19
FOR 14001-071
O RING,22MM
€ 3.00
19
92065097
ref: 19
FOR 14001-102
GASKET,DRAIN PLUG BOL (NAS)
€ 1.00
20
92042007
ref: 20
PIN-DOWEL
€ 4.00
21
551A0612
ref: 21
PIN-DOWEL,6X12
€ 0.50
22
14082001
ref: 22
PLATE
€ 6.00
23
220B0612
ref: 23
SCREW-PAN HEAD,6X12
€ 1.00
24
92037149
ref: 24
CLAMP,OVERFLOW HOSE
€ 1.50
25
920431037
ref: 25
PIN,DOWEL,10X8.2X14
€ 0.50
26
220B0612
ref: 26
SCREW-PAN HEAD,6X12
€ 1.00
27
92022304
ref: 27
WASHER,PLAIN
€ 2.50
28
92062011
ref: 28
NOZZLE,OIL
€ 5.50
