CHASSIS ELECTRICAL EQUIPMENT ('7

KZ400S2 SPECIAL 1976 USA CANADA

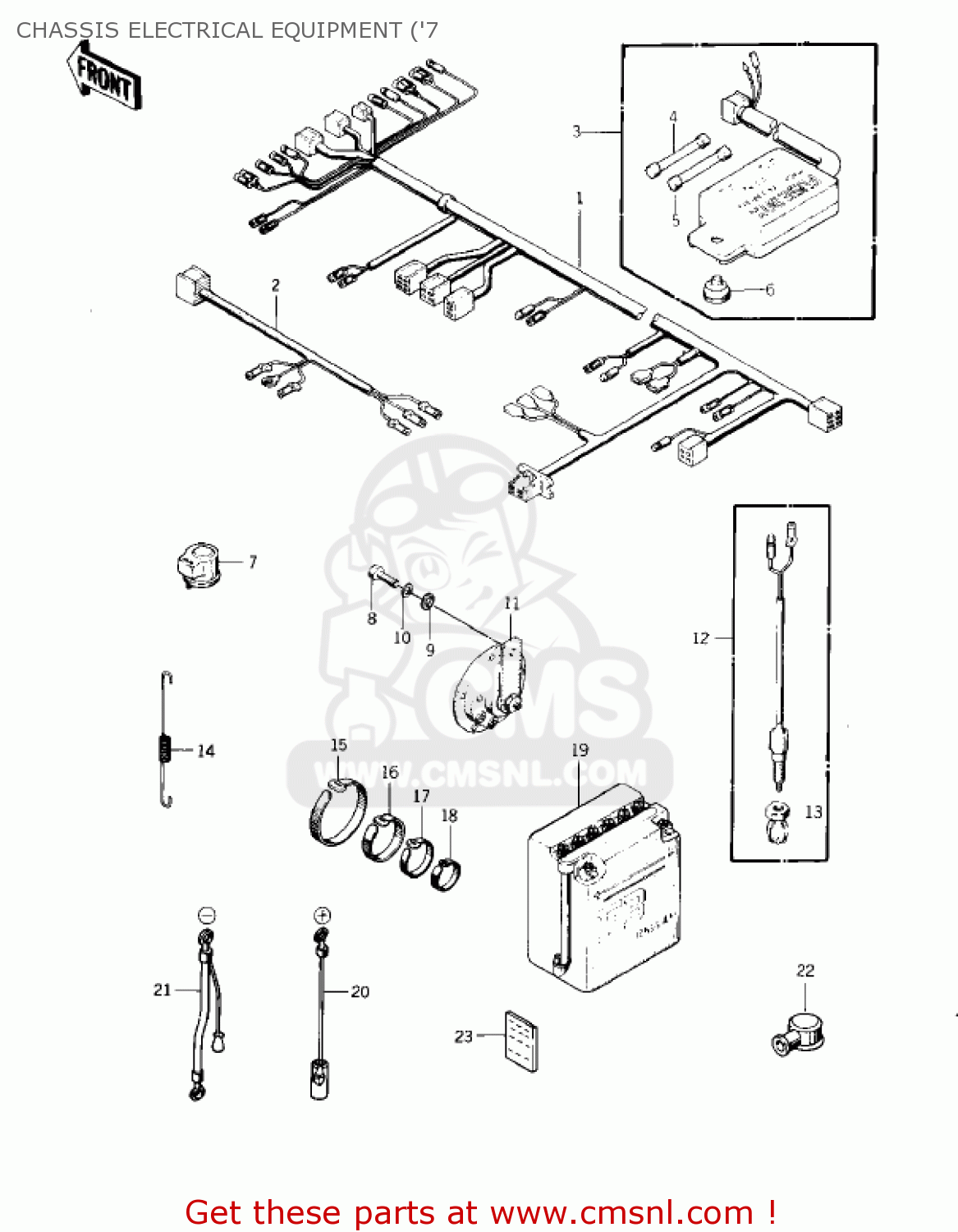

Chassis electrical equipment ('7 diagram KZ400S2 SPECIAL 1976 USA CANADA

CHASSIS ELECTRICAL EQUIPMENT ('7 KZ400S2 SPECIAL 1976 USA CANADA

CHASSIS ELECTRICAL EQUIPMENT ('7 KZ400S2 SPECIAL 1976 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

26001136
ref: 1

WIRING HARNESS,MAIN

€ 194.50

2

26002049
ref: 2

WIRING HARNESS,REAR

€ 24.50

3

26004035
ref: 3

FUSE-ASSY

€ 53.50

4

26006005
ref: 4

FUSE 20A

€ 3.50

5

26006003
ref: 5

FUSE 10A

€ 3.00

6

92075279
ref: 6

DAMPER,FUSE

€ 3.50

7

27002011
ref: 7

RELAY-ASSY,TURN SIGNA

€ 69.50

8

115G0820
ref: 8

BOLT,8X20

€ 2.00

9

410B0800
ref: 9

WASHER-PLAIN-SMALL,8M

€ 0.50

10

461F0800
ref: 10

WASHER-SPRING,8MM

€ 0.50

11

270031006
ref: 11

HORN

€ 99.00

12

27010025
ref: 12

SWITCH,BRAKE LAMP

€ 18.50

13

27037001
ref: 13

NUT,BRAKE LAMP SWICH

€ 18.50

14

27011015
ref: 14

SPRING,BRAKE LAMP SW

€ 6.50

15

92072032
ref: 15
KZ400-S2

BAND,LONG

€ 3.00

16

92072031
ref: 16
KZ400-S2

BAND,MIDDLE

€ 3.00

17

92072030
ref: 17
KZ400-S2

BAND,SHORT

€ 3.00

18

92072067
ref: 18
KZ400-S2

BAND,L=95

€ 2.50

19

26012022
ref: 19
KZ400-S2

BATTERY 12V 6AH

€ 58.00

19

K26012022
ref: 19
KZ400-S3

BATTERY,YUA,12N5.5-4A

€ 115.50

20

26010046
ref: 20

BATTERY WIRE LEAD

€ 28.50

21

26010047
ref: 21

BATTERY WIRE,GROUND

€ 30.00

22

92073001
ref: 22

CAP-BAT TERMINAL RUBB

€ 8.50

23

560401036
ref: 23

WARNING, BATTERY

€ 2.00
