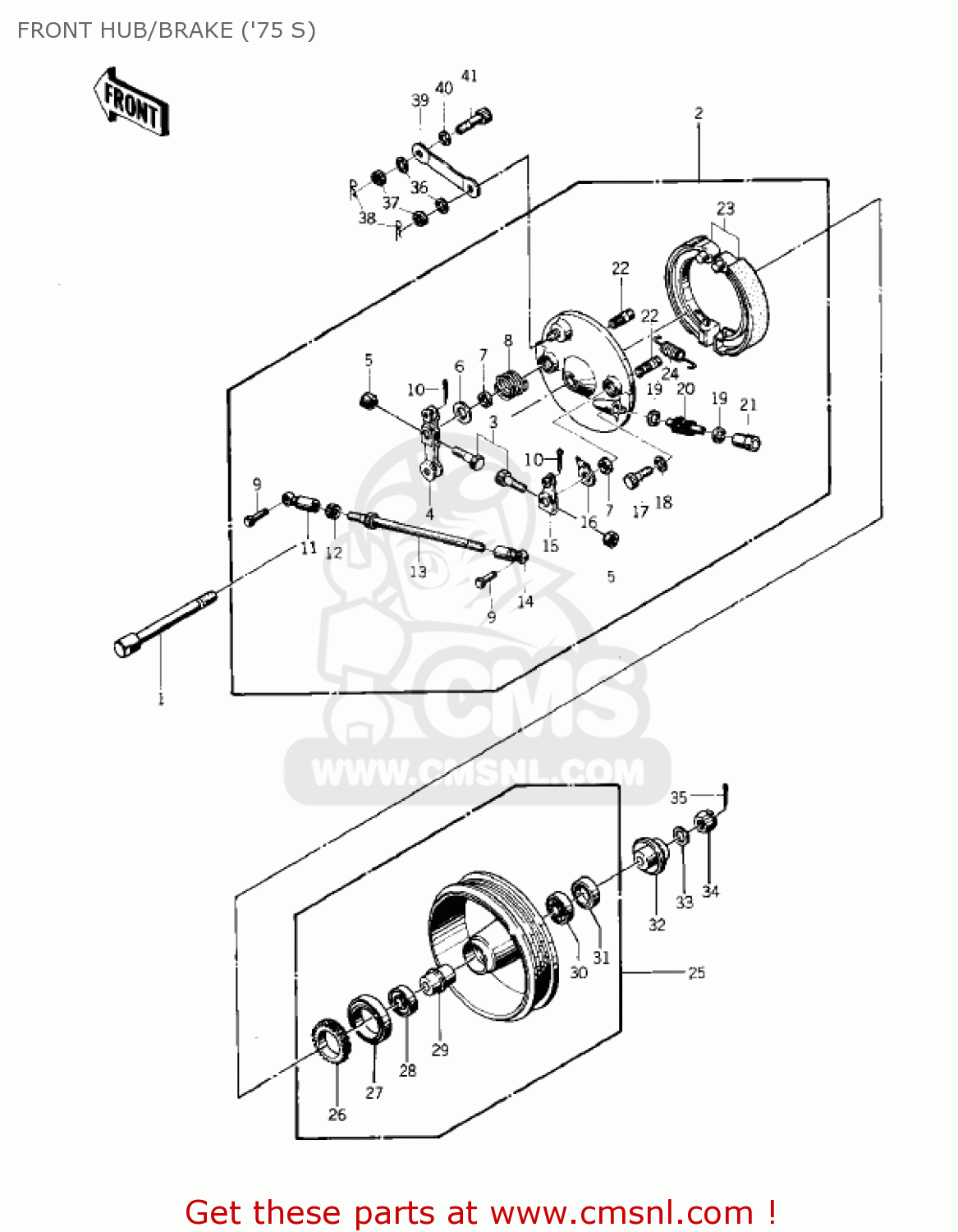

FRONT HUB/BRAKE ('75 S)

ref

part #

description

quantity

1

41068045
ref: 1

AXLE,FRONT

€ 25.00

2

4103506280
ref: 2
BUFF FINISH

FRONT BRAKE PANEL ASSEMBLY,BUFF

€ 521.50

3

112G0630
ref: 3

BOLT-UPSET

€ 1.00

4

41053011
ref: 4

LEVER-BRAKE CAM

€ 28.00

5

41072007
ref: 5

NUT,6MM

€ 2.50

6

41052005
ref: 6

WASHER,14.5X25X1

€ 3.00

7

41051001
ref: 7

DUST SHIELD-BRAKE CAM

€ 2.50

8

41056001
ref: 8

SPRING-FR BRK CAM LEV

€ 9.50

9

41055003
ref: 9

PIN

€ 5.50

10

550D1210
ref: 10

PIN-COTTER,1.2X10

€ 1.50

11

41058008
ref: 11

RODEND-BRAKE

€ 13.00

12

311B0500
ref: 12

NUT-HEX

€ 0.50

13

41057004
ref: 13

ROD-BRAKE

€ 32.50

14

41058009
ref: 14

RODEND-BRAKE

€ 13.00

15

41053012
ref: 15

LEVER-BRAKE CAM

€ 19.50

16

41085015
ref: 16

INDICATOR,FR BRAKE

€ 6.00

17

112G0618
ref: 17

BOLT-UPSET

€ 0.50

18

411B0600
ref: 18

WASHER-PLAIN,6MM

€ 0.50

19

41063003
ref: 19

WASHER,7.2X12X0.5

€ 2.50

20

41060007
ref: 20

PINION-SPEEDOMETER

€ 24.00

21

41062003
ref: 21

BUSHING,SPEEDOMETER C

€ 21.00

22

41050016
ref: 22

CAM-BRAKE

€ 48.00

23

41048019
ref: 23

SHOE, FRONT BRAKE (MCA)

€ 21.00

24

41049004
ref: 24

SPRING-FRNT BRK SHOE

€ 4.00

25

41034007
ref: 25

DRUM ASSY-FRONT BRAKE

€ 105.00

26

41059009
ref: 26

GEAR-SPEEDOMETER

€ 14.50

27

92050017
ref: 27

OIL SEAL WOC55687

€ 18.50

28

601B6302Z
ref: 28

BEARING-BALL,#6302ZC3

€ 22.50

29

41039011
ref: 29

SPACER-FRNT AXLE BERG

€ 6.00

30

601B6302
ref: 30

BEARING-BALL,#6302C3

€ 16.00

31

92052005
ref: 31

OIL SEAL WTC25428

€ 13.50

32

41069029
ref: 32

FRONT AXLE COLLAR

€ 17.00

33

410B1400
ref: 33

410B1400

34

42045020
ref: 34

NUT,14MM

€ 6.50

35

550D3025
ref: 35

PIN-COTTER,3.0X25

€ 0.50

36

461F1000
ref: 36

WASHER-SPRING,10MM

€ 0.50

37

314B1000
ref: 37

NUT,10MM

€ 0.50

38

554A0800
ref: 38

PIN-SNAP,8MM

€ 1.00

39

43007042
ref: 39

FRONT BRAKE TORQUE LINK

€ 26.50

40

410B1000
ref: 40

WASHER-PLAIN-SMALL,10

€ 0.50

41

92003169
ref: 41

BOLT,HEX HEAD,10X57

€ 12.00
