CRANKCASE BOLT & STUD PATTERN ('

KZ400S2 SPECIAL 1976 USA CANADA

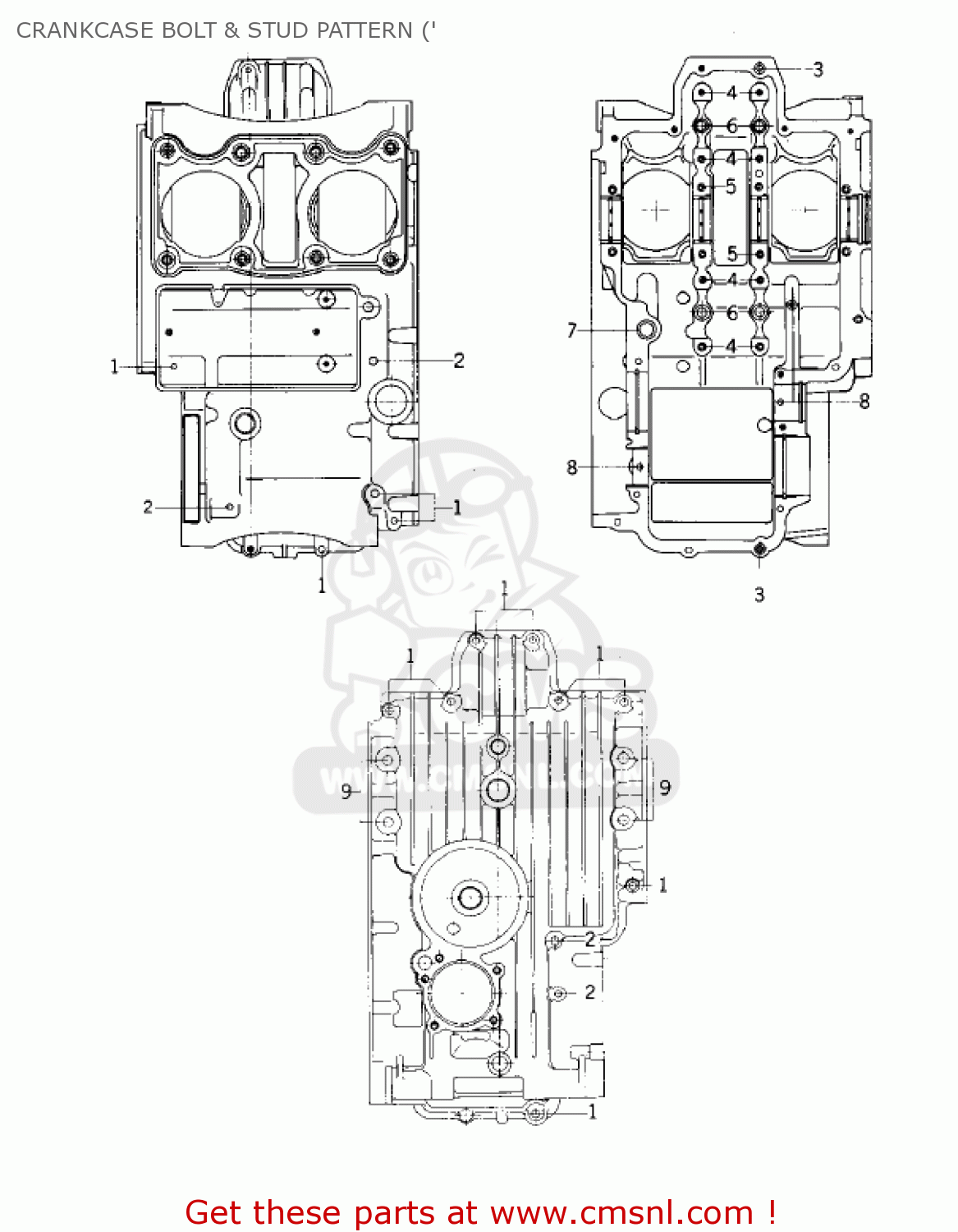

Crankcase bolt & stud pattern (' diagram KZ400S2 SPECIAL 1976 USA CANADA

prices are in EUR

ref

part #

description

quantity

92003110
ref: 1
2 INCL. IN CRANKCASE

BOLT-HEX HEAD,6X54

€ 1.50

130G0695
ref: 2

BOLT-FLANGED,6X95

€ 3.50

920431037
ref: 3

PIN,DOWEL,10X8.2X14

€ 0.50

920431037
ref: 3

PIN,DOWEL,10X8.2X14

€ 0.50

92042007
ref: 4

PIN-DOWEL

€ 4.00

920431037
ref: 5
MAIN BEARING CAP

PIN,DOWEL,10X8.2X14

€ 0.50

92055074
ref: 6
D.O.=13

O RING

€ 5.50

92055077
ref: 7
O.D.=19.5

O RING

€ 4.00

92042016
ref: 8

PIN,DOWEL,6X16

€ 3.50

130P0895
ref: 9

BOLT-FLANGED,8X95

€ 7.00
