CLUTCH ('75 S)
KZ400S2 SPECIAL 1976 USA CANADA

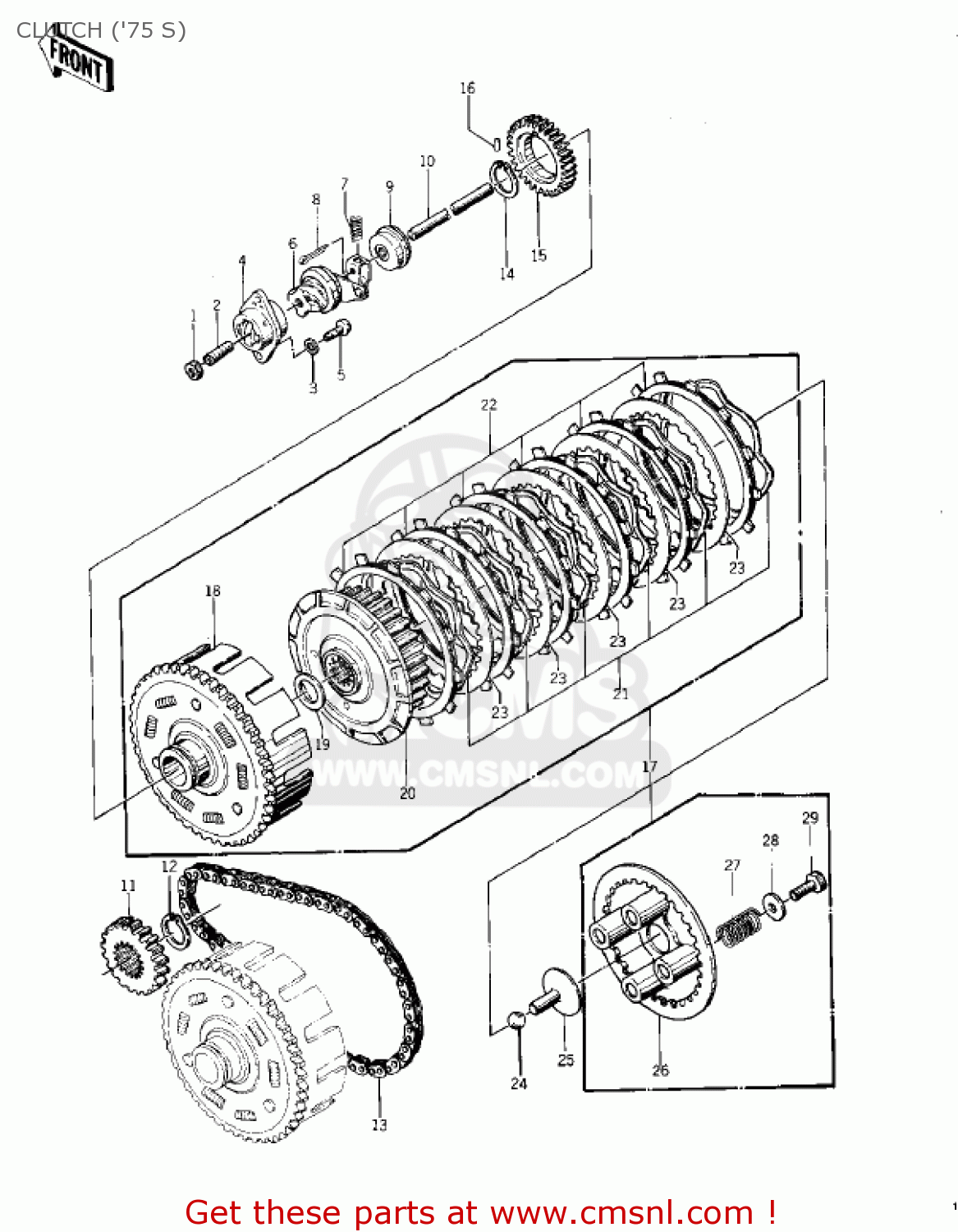

Clutch ('75 s) diagram KZ400S2 SPECIAL 1976 USA CANADA
CLUTCH ('75 S) KZ400S2 SPECIAL 1976 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
318B0800
ref: 1
NUT,8MM
€ 0.50
2
92014014
ref: 2
SCREW-SLOTTED,8X25
€ 4.00
3
411B0600
ref: 3
WASHER-PLAIN,6MM
€ 0.50
4
13118007
ref: 4
OUTER-CLUTCH RELEASE
€ 16.00
5
220B0616
ref: 5
SCREW-PAN HEAD,6X16
€ 2.50
6
13102013
ref: 6
1NNER-CLUTCH RELEASE
€ 56.50
7
92081069
ref: 7
SPRING-CLUTCH RELEASE
€ 4.50
8
550D1615
ref: 8
PIN-COTTER,1.6X15
€ 1.50
9
92050068
ref: 9
OIL SEAL,PUSH ROD
€ 15.00
9
920491041
ref: 9
OIL SEAL,PUSH ROD
€ 13.00
10
131161017
ref: 10
ROD-PUSH,CLUTCH,7X250
€ 26.00
11
13121030
ref: 11
SPROCKET,PRIMARY
€ 38.50
12
480J3000
ref: 12
CIRCLIP-TYPE-C,30MM
€ 3.50
13
13122005A
ref: 13
CHAIN,63-139X74L(TUBA
€ 208.00
14
480J3800
ref: 14
CIRCLIP-TYPE-C,38MM
€ 3.50
15
16084019
ref: 15
GEAR, OIL PUMP
€ 28.50
16
610A0606
ref: 16
PIN,DOWEL,6X6
€ 1.50
17
13081074
ref: 17
CLUTCH ASSY
€ 469.00
18
13095045
ref: 18
HOUSING,CLUTCH
€ 187.00
19
92022288
ref: 19
WASHER,CLUTCH THRUST
€ 9.00
20
13087040
ref: 20
HUB,CLUTCH
€ 56.00
21
13229005
ref: 21
RING,CLUTCH STEEL
€ 6.00
22
130881001
ref: 22
PLATE-FRICTION (NAS)
€ 11.50
23
13089026
ref: 23
PLATE,CLUTCH STEEL (NAS)
€ 6.50
24
600A1200
ref: 24
BALL-STEEL,3/8
€ 0.50
25
13116029
ref: 25
ROD-PUSH,CLUTCH SPRIN
€ 18.00
26
13187007
ref: 26
PLATE,CLUTCH SPRING (NAS)
€ 23.00
27
920811033
ref: 27
SPRING,CLUTCH
€ 6.50
28
13091011
ref: 28
HOLDER,CLUTCH SPRING
€ 2.50
29
112G0618
ref: 29
BOLT-UPSET
€ 0.50
