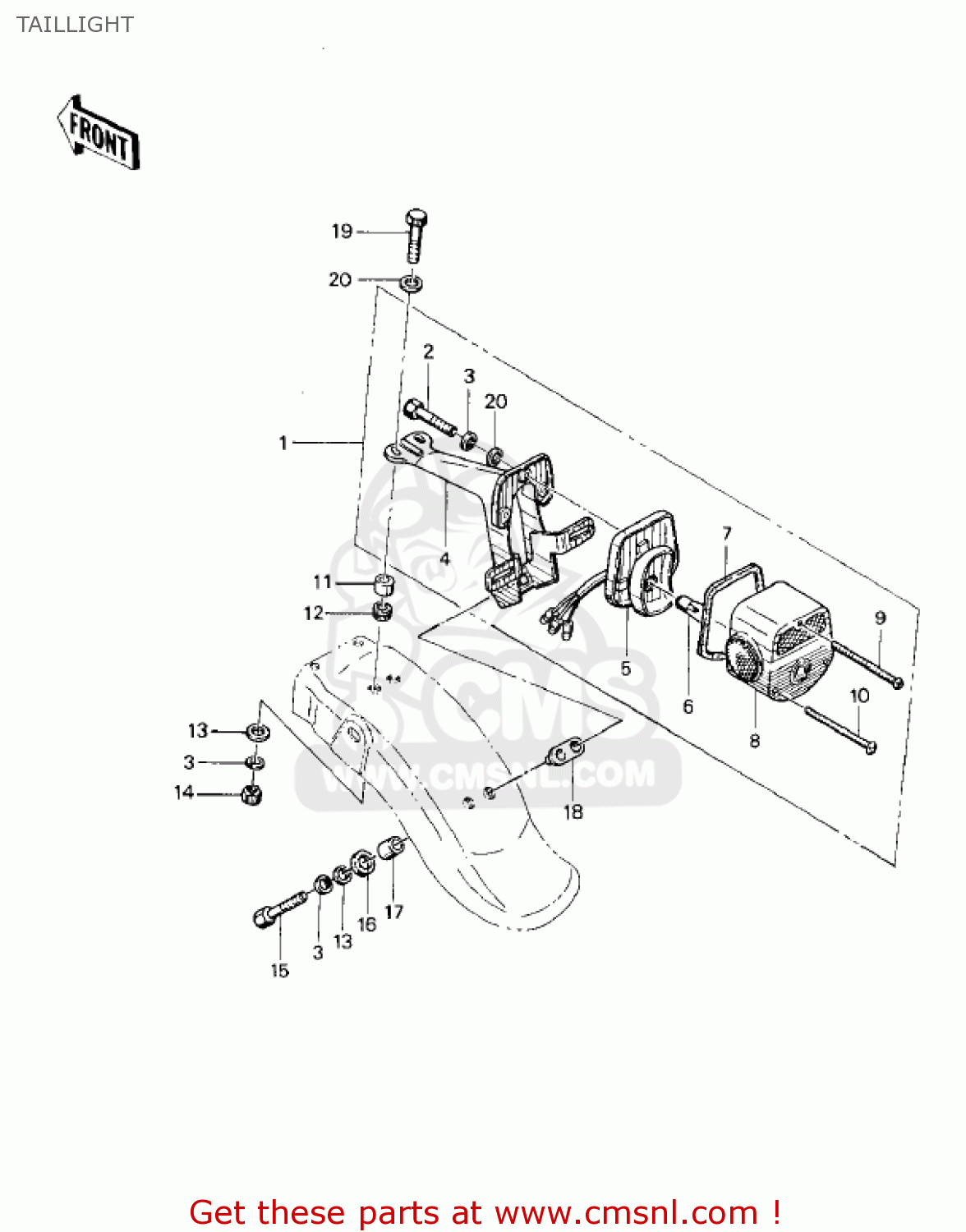

TAILLIGHT

ref

part #

description

quantity

1

2302405910
ref: 1
BLACK

LIGHT ASY,TAIL,BLACK

€ 103.50

2

112B0614
ref: 2

BOLT-UPSET 6X14

€ 2.50

3

461F0600
ref: 3

WASHER-SPRING,6MM

€ 0.50

4

2303604110
ref: 4
BLACK

LICENSE PLATE BRACKET,BLACK

€ 95.00

5

230271019
ref: 5

TAIL LAMP BODY,COMPLETE

€ 49.00

6

92069059
ref: 6

BULB,12V 32/3CP

€ 5.50

7

23028019
ref: 7

GASKET,TAIL LAMP LENS (NAS)

€ 5.50

8

23026028
ref: 8

LENS,TAIL LAMP,W/REFL

€ 48.50

9

220R0455
ref: 9

SCREW-PAN-CROS

€ 3.50

10

220E0450
ref: 10

SCREW-PAN HEAD,4X50

€ 3.00

11

92027129
ref: 11

COLLAR,6.8X10X8.5

€ 3.00

12

92075076
ref: 12

DAMPER

€ 3.00

13

92022125
ref: 13

WASHER,6.5X20X1.6

€ 1.00

14

311B0600
ref: 14

NUT,6MM

€ 0.50

15

112G0625
ref: 15

BOLT-UPSET,6X25

€ 4.00

16

92075121
ref: 16

DAMPER,FENDER

€ 2.50

17

92027162
ref: 17

COLLAR-REAR FENDER

€ 4.50

18

92075273
ref: 18

DAMPER,RR FENDER

€ 3.50

19

112B0622
ref: 19

BOLT, 6X22

€ 2.50

20

411B0600
ref: 20

WASHER-PLAIN,6MM

€ 0.50
