CYLINDER/PISTONS/CRANKSHAFT
KZ400A1 1977 USA / MPH

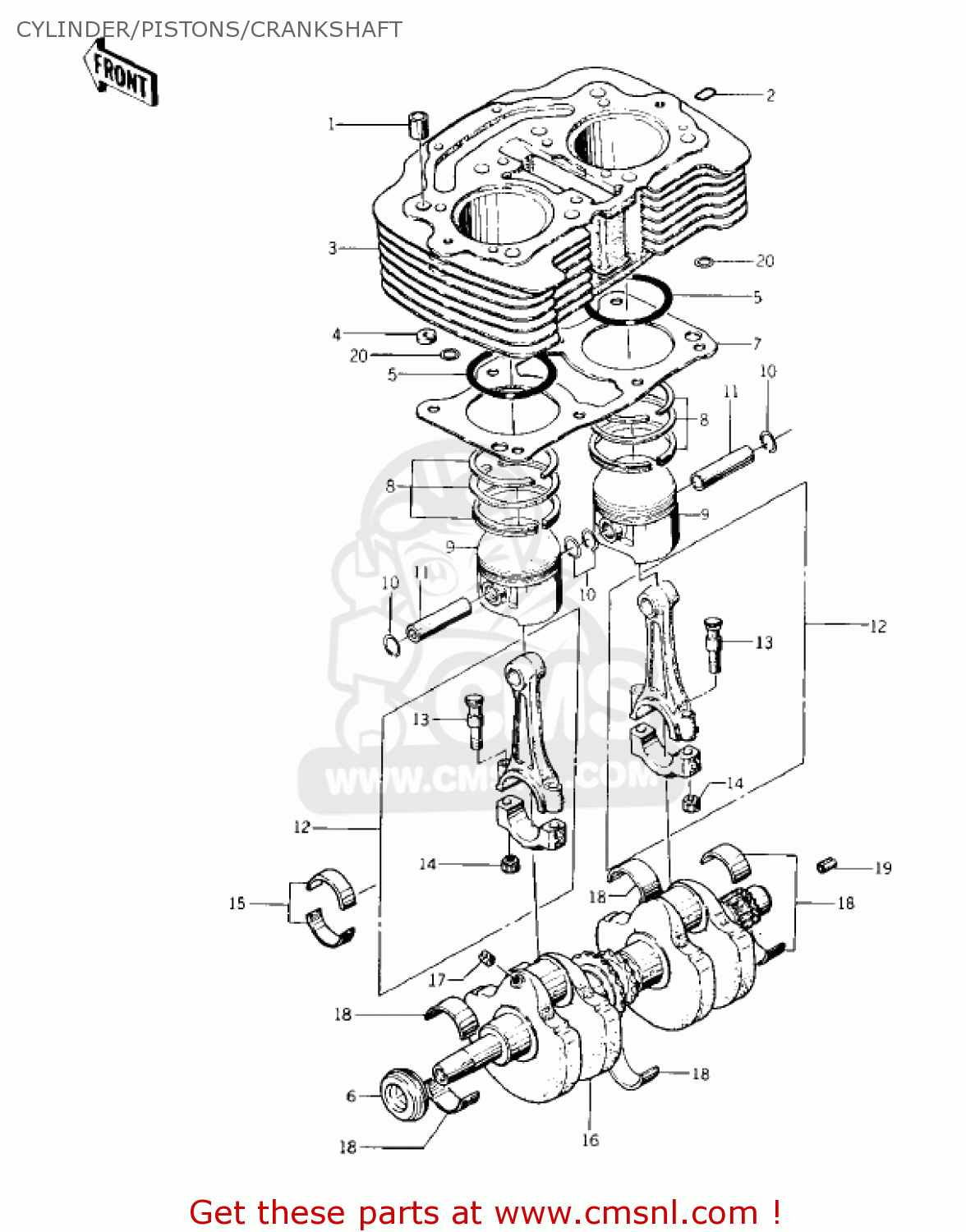

Cylinder/pistons/crankshaft diagram KZ400A1 1977 USA / MPH
CYLINDER/PISTONS/CRANKSHAFT KZ400A1 1977 USA / MPH
×
prices are in EUR
ref
part #
description
quantity
1
92042032
ref: 1
PIN,DOWEL,14MM
€ 3.00
2
110091012
ref: 2
GASKET,CYLINDER
€ 9.00
3
11005146
ref: 3
CYLINDER
€ 442.00
4
92075256
ref: 4
DAMPER RUBBER,CYLNDR
€ 1.50
5
92055056
ref: 5
RING-O
€ 16.00
6
92050064
ref: 6
OIL SEAL,L.H CRNKSFT
€ 12.50
7
11009040
ref: 7
GASKET,CYLINDER BASE (MCA)
€ 9.50
8
130085028
ref: 8
RING-SET-PISTON,STD
€ 56.50
8
130255013
ref: 8
RING SET,0.020,O/S
€ 54.00
8
130245012
ref: 8
RING SET,0.040,O/S
€ 28.50
9
13001078
ref: 9
PISTON,STD
€ 40.00
9
13029073
ref: 9
PISTON,0.020'0.S
€ 52.50
9
13027066
ref: 9
PISTON,0.040'0,S
€ 62.50
10
92036005
ref: 10
CIRCLIP-PISTON PIN
€ 2.50
11
13002029
ref: 11
PIN,PISTON
€ 9.50
12
13032046HH
ref: 12
CONNECTING ROD ASSY
€ 96.00
12
13032046II
ref: 12
CONNECTING ROD ASSY
€ 153.00
12
13032046JJ
ref: 12
CONNECTING ROD ASSY
€ 96.00
13
92001169
ref: 13
BOLT, CONNECTING ROD
€ 3.00
14
920151311
ref: 14
NUT,FLANGED,8MM
€ 4.50
15
13034037
ref: 15
METAL,CONROD,BRG
€ 16.00
15
13034047
ref: 15
METAL,CONNECTING ROD
€ 9.50
15
13034048
ref: 15
METAL,CONNECTING ROD
€ 12.50
16
13037061
ref: 16
CRANKSHAFT ASSY
€ 925.00
17
291H0608
ref: 17
SCREW,SLOTTED,6X8
€ 1.50
18
920281102
ref: 18
KZ400-A1
BUSHING,CRANKSHAFT,BR
€ 11.00
18
920281102
ref: 18
KZ400-A2
BUSHING,CRANKSHAFT,BR
€ 11.00
18
920281102
ref: 18
BUSHING,CRANKSHAFT,BR
€ 11.00
19
555A0408
ref: 19
PIN-SPRING,4X8
€ 2.50
20
92055074
ref: 20
-- E/NO. 070540
O RING
€ 5.50
20
92055090
ref: 20
E/NO. 070541 --
RING-O
€ 5.50
