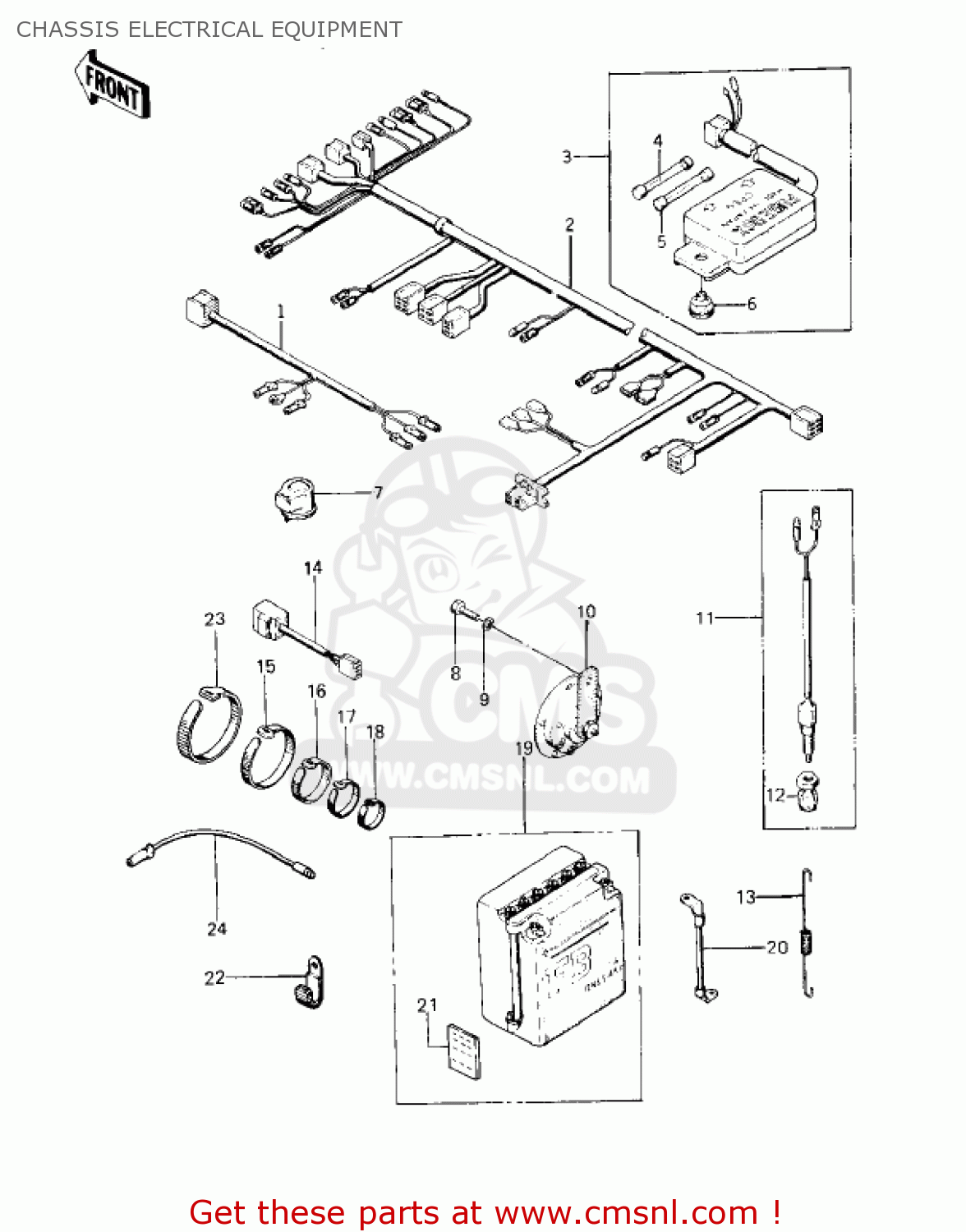

CHASSIS ELECTRICAL EQUIPMENT

ref

part #

description

quantity

1

26002049
ref: 1

WIRING HARNESS,REAR

€ 24.50

2

26001136
ref: 2

WIRING HARNESS,MAIN

€ 194.50

3

26004035
ref: 3

FUSE-ASSY

€ 53.50

4

26006005
ref: 4

FUSE 20A

€ 3.50

5

26006003
ref: 5

FUSE 10A

€ 3.00

6

92075279
ref: 6

DAMPER,FUSE

€ 3.50

7

27002011
ref: 7

RELAY-ASSY,TURN SIGNA

€ 69.50

8

115G0820
ref: 8

BOLT,8X20

€ 2.00

9

461F0800
ref: 9

WASHER-SPRING,8MM

€ 0.50

10

270031006
ref: 10

HORN

€ 99.00

11

27010025
ref: 11

SWITCH,BRAKE LAMP

€ 18.50

12

27037001
ref: 12

NUT,BRAKE LAMP SWICH

€ 18.50

13

27011015
ref: 13

SPRING,BRAKE LAMP SW

€ 6.50

14

28019002
ref: 14

SWITCH,BK LIGHT IND

€ 49.50

15

92072032
ref: 15

BAND,LONG

€ 3.00

16

92072031
ref: 16

BAND,MIDDLE

€ 3.00

17

92072030
ref: 17

BAND,SHORT

€ 3.00

18

92072067
ref: 18

BAND,L=95

€ 2.50

19

26012045
ref: 19

BATTERY, 12V 12AH

€ 93.00

20

26010044
ref: 20

WIRE,LEAD

€ 13.00

21

560401036
ref: 21

WARNING, BATTERY

€ 2.00

22

21126008
ref: 22

CLAMP,WIRING HARNESS

€ 3.00

23

92072035
ref: 23

BAND,L=80

€ 4.00

24

26011097
ref: 24

WIRE LEAD,REAR

€ 9.50

all assemblies
