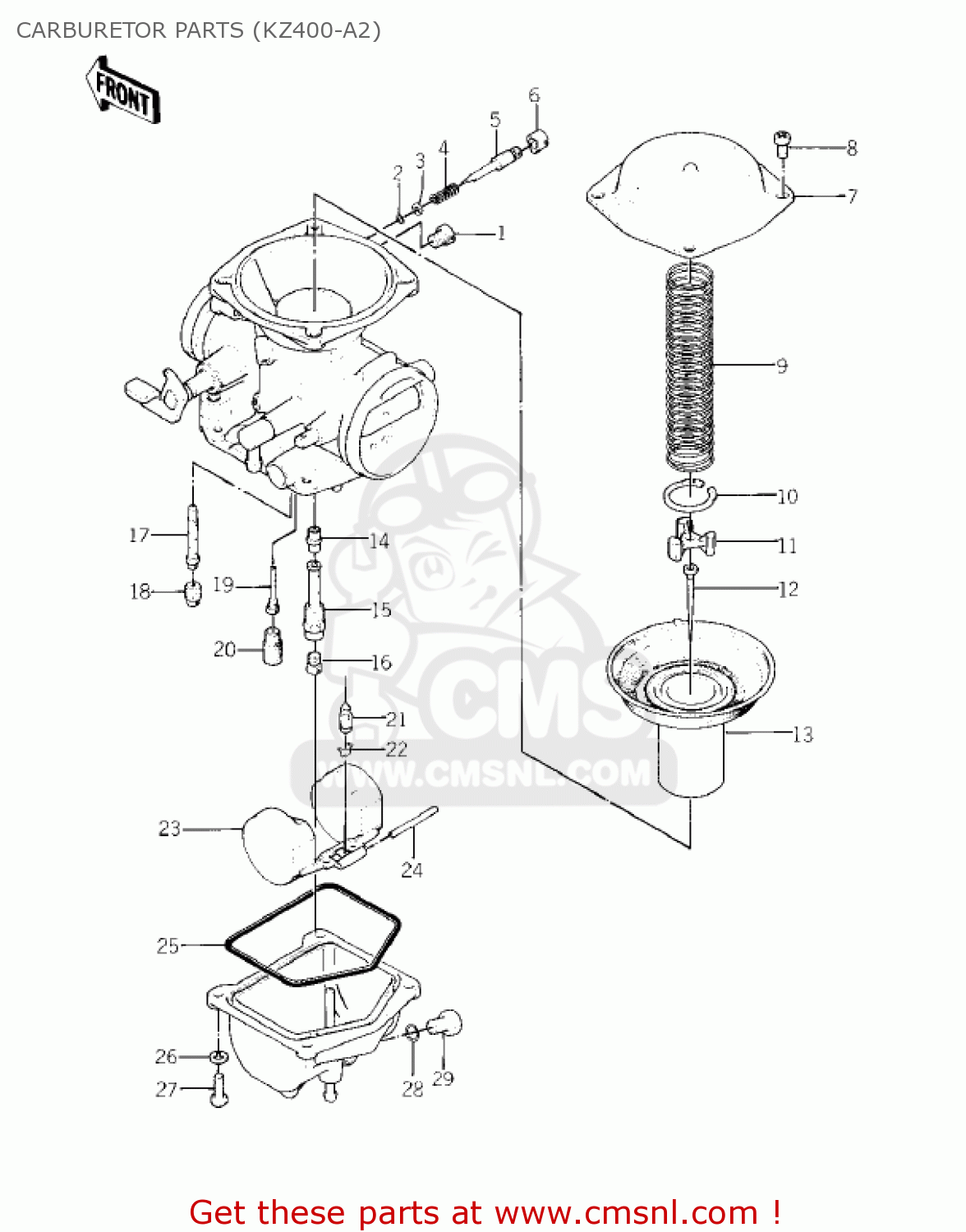

CARBURETOR PARTS (KZ400-A2)

ref

part #

description

quantity

1

920091004
ref: 1

SCREW, PLUG

€ 5.50

2

920551002
ref: 2

O RING,PILOT ADJUST

€ 2.50

3

920221003
ref: 3

WASHER,PLAIN

€ 2.50

4

920811002
ref: 4

SPRING,PIROT ADJ SCRW

€ 3.50

5

160141001
ref: 5

SCREW, PIROT ADJUST

€ 10.00

6

110123727
ref: 6

CAP,JET NEEDLE

€ 2.00

7

160051001
ref: 7

TOP-CHAMBER,MIXING

€ 23.50

8

22080408A
ref: 8

SCREW,PAN HEAD, 4X8

€ 0.00

9

920811001
ref: 9

SPRING

€ 10.00

10

920371005
ref: 10

CLAMP

€ 5.50

11

160071001
ref: 11

SEAT-SPRING,THROTTLE

€ 8.00

12

160091002
ref: 12

JET NEEDLE, # 003301

€ 20.50

13

161261042
ref: 13

VALVE

€ 214.00

14

160171001
ref: 14

JET-NEEDLE

€ 26.50

15

16047007
ref: 15

HOLDER, NEEDLE JET

€ 13.50

16

920631001
ref: 16
S.T.D

JET-MAIN,#95

€ 10.00

16

920631003
ref: 16
OPTION

MAIN JET, 2ND, # 90

€ 9.50

16

920631004
ref: 16
OPTION

JET-MAIN,#92

€ 10.00

16

920631005
ref: 16
OPTION

JET-MAIN,#98

€ 10.00

16

920631006
ref: 16
OPTION

MAIN JET, 2ND, # 100

€ 9.00

17

920621001
ref: 17

NOZZLE,MAIN

€ 15.50

18

920631002
ref: 18
S.T.D.

JET-MAIN,PRI,#70

€ 10.00

19

920641001
ref: 19

JET-PILOT,#35

€ 14.00

20

160121001
ref: 20

CAP,RUBBER

€ 3.50

21

160301007
ref: 21

FLOAT VALVE ASSY

€ 37.00

22

16044007
ref: 22

CLIP, FLOAT VALVE

€ 4.00

23

160311001
ref: 23

FLOAT

€ 38.50

24

920431002
ref: 24

PIN,FLOAT

€ 3.50

25

16019024
ref: 25

O RING,FLOAT CHAMBER

€ 15.00

26

461F0400
ref: 26

WASHER-SPRING,4MM

€ 0.50

27

220B0412
ref: 27

SCREW-PAN CROS 4X12

€ 0.50

28

920551003
ref: 28

RING-O,DRAIN SCREW

€ 2.50

29

920091003
ref: 29

SCREW, DRAIN

€ 7.00

all assemblies
