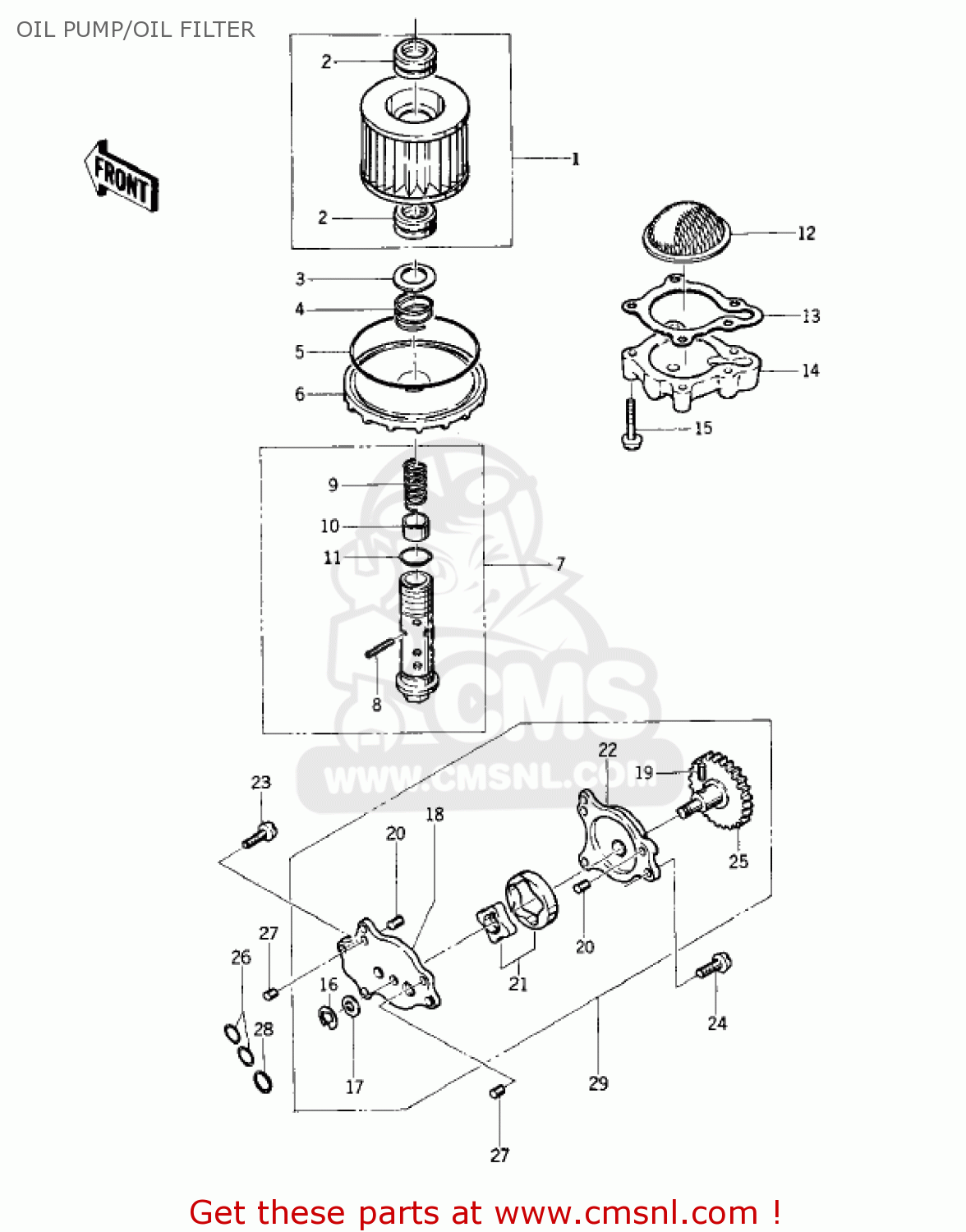

OIL PUMP/OIL FILTER

ref

part #

description

quantity

1

16099003
ref: 1

FILTER,OIL

€ 6.50

2

16135010
ref: 2

GROMMET,OIL FILTER

€ 2.50

3

92022144
ref: 3

SHIM-KICK SHAFT

€ 4.50

4

920811018
ref: 4

SPRING,OIL FILTER

€ 3.00

5

671B2590
ref: 5

O RING,90MM

€ 6.50

6

16101004
ref: 6

COVER,OIL FILTER

€ 31.00

7

16158001
ref: 7

SLOW JET,#40

€ 8.00

7

161261108
ref: 7

VALVE,OIL FILTER

€ 29.00

8

92043111
ref: 8

SPRING PIN

€ 4.00

9

92081133
ref: 9

SPRING,PISTON

€ 5.50

10

92136001
ref: 10

PISTON

€ 3.50

11

670B2016
ref: 11

O RING,16MM

€ 1.00

12

16111003
ref: 12

STRAINER,OIL

€ 10.00

13

110091874
ref: 13

GASKET,OIL FILTER COV (NAS)

€ 4.50

14

16101003
ref: 14

COVER,OIL STRAINER

€ 12.50

15

220B0630
ref: 15

SCREW-PAN HEAD,6X30

€ 2.50

16

482K5000
ref: 16

CIRCLIP,5MM

€ 2.00

17

92026098
ref: 17

WASHER,THRUST

€ 2.50

18

16142002
ref: 18

COVER, OIL PUMP

€ 15.00

19

551A0408
ref: 19

PIN-DOWEL,4X8

€ 0.50

20

551A0608
ref: 20

PIN,DOWEL,6X8

€ 2.50

21

16154001
ref: 21

ROTOR,OIL PUMP OUTER

€ 29.00

22

16141002
ref: 22

BODY,OIL PUMP

€ 27.00

23

220B0618
ref: 23

SCREW-PAN HEAD,6X18

€ 2.50

24

220B0625
ref: 24

SCREW-PAN HEAD,6X25

€ 1.50

25

16085023
ref: 25

GEAR,OIL PUMP DRIVEN

€ 48.50

26

92055072
ref: 26

RING-O

€ 3.00

27

551A0608
ref: 27

PIN,DOWEL,6X8

€ 2.50

28

92055073
ref: 28

RING-O,13.5MM

€ 6.50

29

16083004
ref: 29

OIL PUMP ASSY

€ 118.50
