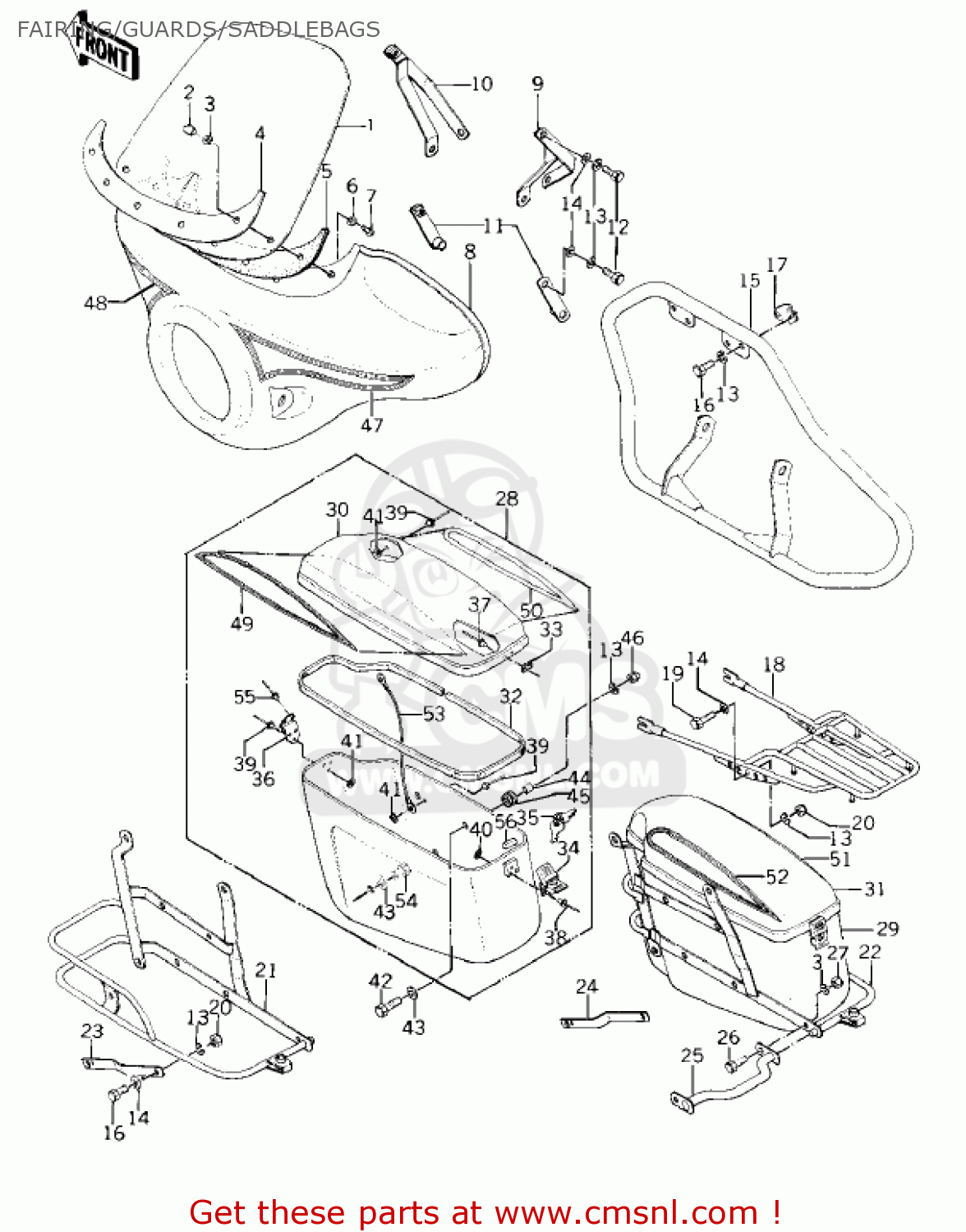

FAIRING/GUARDS/SADDLEBAGS

ref

part #

description

quantity

1

55043001
ref: 1

WINDSHIELD

€ 159.50

2

92015009
ref: 2

NUT,6MM

€ 2.00

3

461F0600
ref: 3

WASHER-SPRING,6MM

€ 0.50

4

55045001
ref: 4

WINDSHIELD PLATE

€ 84.00

5

55044001
ref: 5

WINDSHIELD SEAL

€ 17.00

6

411B0600
ref: 6

WASHER-PLAIN,6MM

€ 0.50

7

220B0618
ref: 7

SCREW-PAN HEAD,6X18

€ 2.50

8

550420018D
ref: 8

WINDSHIELD BODY,CANDY COPPER

€ 949.00

9

55046004
ref: 9

BRACKET,UPPER,LH

€ 87.50

10

55046005
ref: 10

BRACKET,UPPER,RH

€ 87.50

11

55046006
ref: 11

BRACKET,LOWER

€ 39.00

12

115G0816
ref: 12

BOLT-HEX,HEAD 8X16

€ 0.50

13

461F0800
ref: 13

WASHER-SPRING,8MM

€ 0.50

14

411B0800
ref: 14

WASHER-PLAIN,8MM

€ 0.50

15

55024006
ref: 15

GUARD

€ 243.00

16

115G0820
ref: 16

BOLT,8X20

€ 2.00

17

55025018
ref: 17

GUARD BRACKET

€ 31.50

18

53029059
ref: 18

CARRIER

€ 320.00

19

110N0835
ref: 19

BOLT, HEX HEAD, 8X35

€ 1.50

20

311B0800
ref: 20

NUT,8MM

€ 0.50

21

58052003
ref: 21

SADDLE BAG BRACKET,LH

€ 320.00

22

58052004
ref: 22

SADDLE BAG BRACKET,RH

€ 320.00

23

58052005
ref: 23

SADDLE BAG BRACKET,LOWER,LH

€ 54.50

24

58052006
ref: 24

SADDLE BAG BRACKET,LOWER,RH

€ 54.50

25

58052007
ref: 25

SADDLE BAG BRACKET,REAR

€ 115.00

26

112B0614
ref: 26

BOLT-UPSET 6X14

€ 2.50

27

311B0600
ref: 27

NUT,6MM

€ 0.50

28

580510058D
ref: 28

SADDLE BAG,LH,CANDY COPPER

€ 850.50

29

580510068D
ref: 29

SADDLE BAG,RH,CANDY COPPER

€ 850.50

30

1402510098D
ref: 30

SADDLE BAG LID,LH,CANDY COPPER

€ 99.50

31

1402510108D
ref: 31

SADDLE BAG LID,RH,CANDY COPPER

€ 99.50

32

391454001
ref: 32

SADDLE BAG SEAL TRIM

€ 7.50

33

490311003
ref: 33

SADDLE BAG LID LATCH

€ 10.50

34

490311002
ref: 34

SADDLE BAG LOCK

€ 12.00

35

270081001
ref: 35

KEY SET,TWO KEYS

€ 8.00

36

530091003
ref: 36

SADDLE BAG HINGE

€ 15.00

37

920391003
ref: 37
FOR LATCH

SADDLE BAG LID LATCH RIVEL

€ 1.00

38

920391002
ref: 38
FOR LOCK

SADDLE BAG LOCK RIVET

€ 0.50

39

920391004
ref: 39
FOR HINGE (LOWER) &

SADDLEBAG HINGE RIVET

€ 0.50

40

920221015
ref: 40
FOR LOCK

RIVET WASHER

€ 0.50

41

920221016
ref: 41
FOR HINGE & CORD

RIVET WASHER

€ 0.50

42

115G0825
ref: 42

BOLT-HEX,HEAD,8X25

€ 3.00

43

920221561
ref: 43

WASHER,8.5X20X1.6

€ 2.50

44

92027280
ref: 44

COLLAR

€ 3.00

45

92075303
ref: 45

DAMPER, SADDLEBAG

€ 1.50

46

92020007
ref: 46

NUT,CAP,8MM

€ 3.50

47

56029028
ref: 47

WINDSHIELD DECAL,LH

€ 31.50

48

56029029
ref: 48

WINDSHIELD DECAL,RH

€ 31.50

49

56029024
ref: 49

SADDLE BAG DECAL,OUTER,LH

€ 33.50

50

56029025
ref: 50

SADDLE BAG DECAL,INNER,LH

€ 33.50

51

56029026
ref: 51

SADDLE BAG OUTER DECAL,RH

€ 33.50

52

56029027
ref: 52

SADDLE BAG INNER DECAL,RH

€ 33.50

53

390734001
ref: 53

SADDLE BAG LANYARD

€ 6.50

54

115B0822
ref: 54

BOLT-SMALL-UPSET,8X22

€ 2.00

55

920394001
ref: 55
FOR HINGE (UPPER)

SADDLE BAG LID HINGE RIVET

€ 0.50

56

920754001
ref: 56

SADDLE BAG LID DAMPER

€ 0.50

all assemblies
