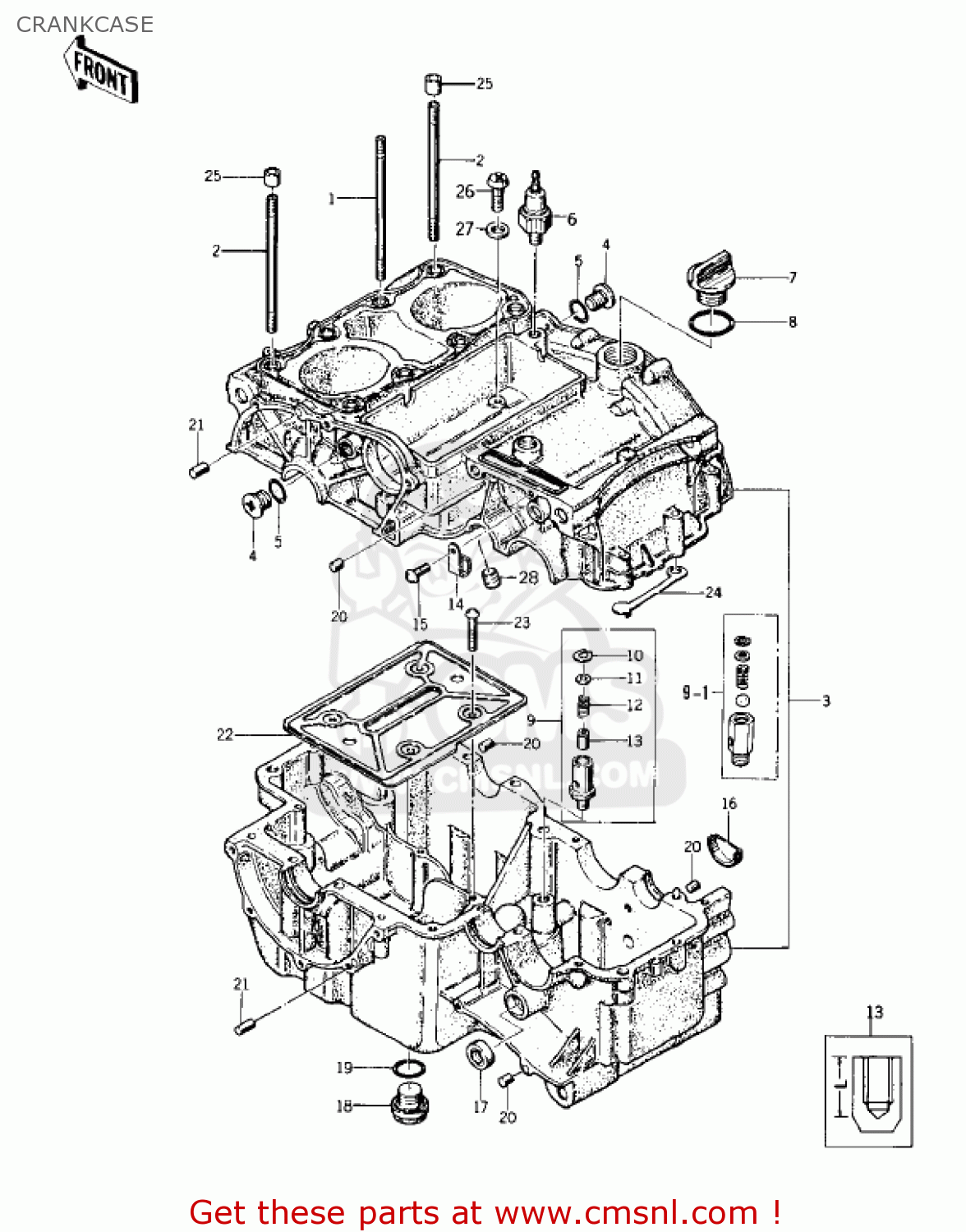

CRANKCASE

ref

part #

description

quantity

1

92004052
ref: 1

STUD,8X201

€ 3.00

2

92004053
ref: 2

STUD,8X190

€ 3.00

3

14001102
ref: 3
KZ400-A1

CRANKCASE SET,W/STUD

€ 1,025.50

3

14001102
ref: 3
KZ400-A2

CRANKCASE SET,W/STUD

€ 1,025.50

4

92066067
ref: 4

PLUG

€ 4.00

4

92066067
ref: 4

PLUG

€ 4.00

5

92055073
ref: 5

RING-O,13.5MM

€ 6.50

6

270101157
ref: 6

SWITCH,OIL PRESSURE

€ 27.50

7

16115013
ref: 7

PLUG-OIL FILLER

€ 13.50

8

92055049
ref: 8

'0'RING,31MM

€ 2.50

9

161301001
ref: 9
-- E/NO. 095255

VALVE-ASSY-RELIEF

€ 28.50

9-1

161301001
ref: 9-1
E/NO. 095256 --

VALVE-ASSY-RELIEF

€ 28.50

10

481J1200
ref: 10
USE WITH 16130-003

CIRCLIP,12MM

€ 1.00

11

92026097
ref: 11
USE WITH 16130-003

SPACER,RELEAF VALVE

€ 1.00

12

16133003
ref: 12
USE WITH 16130-003

SPRING,RELEAF VALVE

€ 1.50

13

16126002
ref: 13
USE WITH 16130-003

PISTON,RELEAF VALVE

€ 7.00

14

21126008
ref: 14
KZ400-A1

CLAMP,WIRING HARNESS

€ 3.00

14

21126008
ref: 14
KZ400-A2

CLAMP,WIRING HARNESS

€ 3.00

15

220B0612
ref: 15

SCREW-PAN HEAD,6X12

€ 1.00

16

14015005
ref: 16

RECEIVER,OIL

€ 8.50

17

92051005A
ref: 17

OIL SEAL,TB13225.5

€ 5.50

18

920661174
ref: 18

PLUG,OIL DRAIN,12X15

€ 4.00

19

92065097
ref: 19

GASKET,DRAIN PLUG BOL (NAS)

€ 1.00

20

92042007
ref: 20

PIN-DOWEL

€ 4.00

21

551A0612
ref: 21

PIN-DOWEL,6X12

€ 0.50

22

14082001
ref: 22
1

PLATE

€ 6.00

23

220B0612
ref: 23

SCREW-PAN HEAD,6X12

€ 1.00

24

92037149
ref: 24

CLAMP,OVERFLOW HOSE

€ 1.50

25

920431037
ref: 25

PIN,DOWEL,10X8.2X14

€ 0.50

26

220B0612
ref: 26

SCREW-PAN HEAD,6X12

€ 1.00

27

92022304
ref: 27

WASHER,PLAIN

€ 2.50

28

92062011
ref: 28

NOZZLE,OIL

€ 5.50

all assemblies
