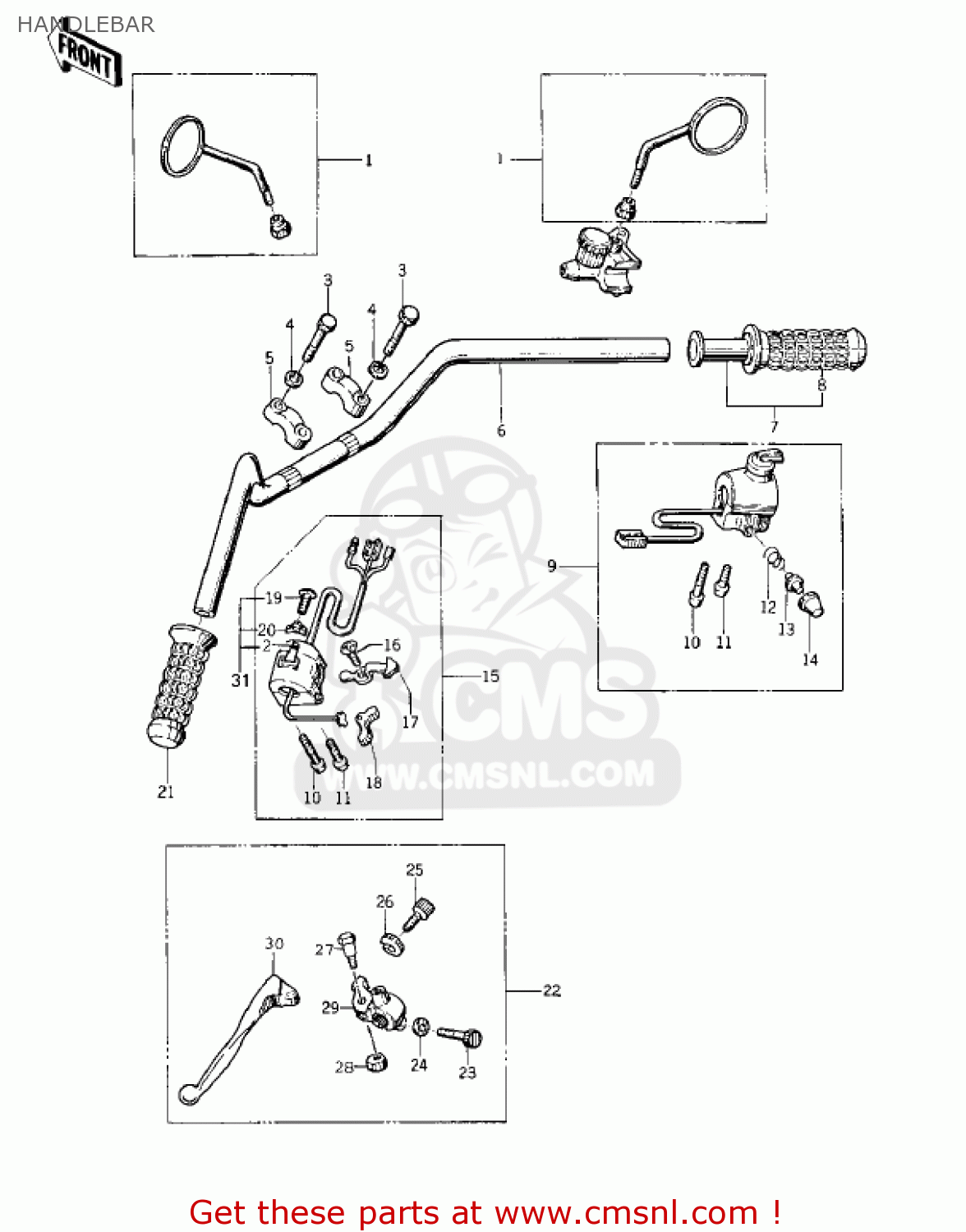

HANDLEBAR

ref

part #

description

quantity

1

560015008
ref: 1

MIRROR-ASSY,LH&RH

€ 102.00

2

46089014
ref: 2

SWITCH, L.H

€ 15.00

3

920011405
ref: 3

BOLT,8X38

€ 10.00

4

461F0800
ref: 4

WASHER-SPRING,8MM

€ 0.50

5

46012008
ref: 5

HOLDER-HANDLE,UPP

€ 23.00

6

46003034
ref: 6

HANDLEBAR

€ 70.50

7

46019038
ref: 7

GRIP-ASSY,THROTTLE

€ 80.50

8

46061018
ref: 8

RUBBER,THROTTLE GRIP

€ 10.00

9

460911039
ref: 9

CASE ASSY, R.H.

€ 101.00

10

220B0535
ref: 10

SCREW-PAN-CROS

€ 2.00

11

220B0530
ref: 11

SCREW-PAN-CROS

€ 2.00

12

270101009
ref: 12

SWITCH ASSY,HORN BUTN

€ 5.50

13

270101009
ref: 13

SWITCH ASSY,HORN BUTN

€ 5.50

13

270101009
ref: 13
INCLUDES REF #'S 12,

SWITCH ASSY,HORN BUTN

€ 5.50

14

270101009
ref: 14

SWITCH ASSY,HORN BUTN

€ 5.50

15

460911079
ref: 15

HOUSING-ASSY-CONTROL,

€ 129.50

16

221B0308A
ref: 16

SCREW-CNTSNK HD,3X8

€ 2.50

17

46043005
ref: 17

KNOB-LIGHTING SW L.H

€ 6.50

18

46028006
ref: 18

BUTTON,HORN PUSH

€ 6.50

19

220B0305A
ref: 19

SCREW-PAN HEAD,3X5

€ 1.00

20

46044013
ref: 20

KNOB,LIGHTING SWITCH,

€ 8.00

21

46075028
ref: 21

GRIP,LH

€ 32.00

22

46076052
ref: 22

LEVER ASSY,CLUTCH

€ 101.00

23

112B0622
ref: 23

BOLT, 6X22

€ 2.50

24

411B0600
ref: 24

WASHER-PLAIN,6MM

€ 0.50

25

46055003
ref: 25

SCREW-CABLE ADJUST

€ 11.50

25

920091022
ref: 25

SCREW,CABLE ADJUSTER

€ 15.50

26

46056007
ref: 26

NUT,CABLE ADJUST LOCK

€ 9.00

27

92007047
ref: 27

BOLT,HEX HEAD

€ 6.50

28

92019008
ref: 28
KZ400-A1

NUT-LOCK,6MM

€ 3.00

28

92017014
ref: 28
KZ400-A2

NUT,LOCK,6MM

€ 4.00

29

46094017
ref: 29

HOLDER,CLUTCH LEVER

€ 23.00

30

46092023
ref: 30

LEVER-GRIP,CLUTCH

€ 17.00

31

99990530
ref: 31
INCLUDES REF #'S 2,1

DIMMER SWITCH KIT A

€ 1.00

all assemblies
