WATER PUMP
KZ1300B2 1980 USA CANADA / MPH KPH

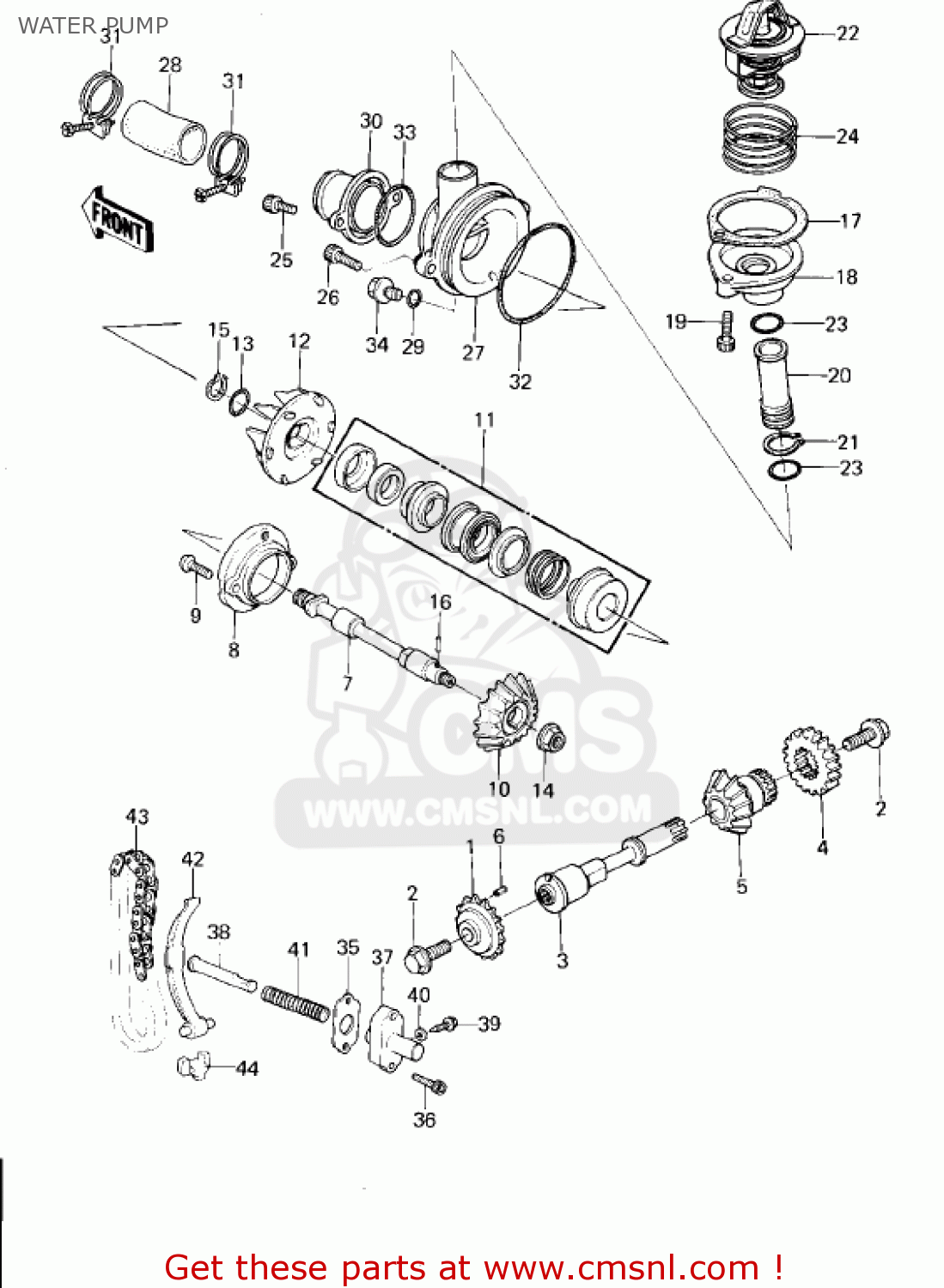

Water pump diagram KZ1300B2 1980 USA CANADA / MPH KPH
WATER PUMP KZ1300B2 1980 USA CANADA / MPH KPH
×
prices are in EUR
ref
part #
description
quantity
1
120461015
ref: 1
SPROCKET,TIMING CHAIN
€ 51.00
2
130G0820
ref: 2
BOLT,FLANGED,8X20
€ 0.50
3
131071009
ref: 3
SHAFT,WATER PUMP DRIV
€ 71.50
4
132161010
ref: 4
GEAR,21T,TIMING
€ 24.00
5
490221005
ref: 5
GEAR,BEVEL,WATER PUMP
€ 29.50
6
555A0408
ref: 6
PIN-SPRING,4X8
€ 2.50
7
131071011
ref: 7
SHAFT,WATER PUMP
€ 76.50
8
140201004
ref: 8
RETAINER,MECHANICAL S
€ 16.00
9
220R0516
ref: 9
SCREW-PAN-CROS
€ 2.50
10
490221006
ref: 10
GEAR,BEVEL WATER PUMP
€ 96.00
11
490631001
ref: 11
SEAL,MECHANICAL
€ 59.00
12
592561001
ref: 12
IMPELLER,WATER PUMP
€ 32.50
13
670B1508
ref: 13
O RING,8MM
€ 1.00
14
920151014
ref: 14
NUT,8MM
€ 0.50
15
920331024
ref: 15
RING-SNAP,11MM
€ 2.50
16
92042014
ref: 16
PIN-GEAR CHANGE DRUM
€ 0.50
17
110091087
ref: 17
GASKET,THERMOSTAT CAP (NAS)
€ 4.00
18
110121054
ref: 18
CAP,THERMOSTAT
€ 19.00
19
120P0625
ref: 19
BOLT,6X25
€ 1.50
20
320321184
ref: 20
PIPE,WATER BYPASS
€ 18.00
21
480J2000
ref: 21
CIRCLIP-TYPE-C,20MM
€ 1.00
22
490541001
ref: 22
THERMOSTAT
€ 44.50
23
670B2016
ref: 23
O RING,16MM
€ 1.00
24
920811104
ref: 24
SPRING,THERMOSTAT
€ 9.50
25
120P0616
ref: 25
BOLT,SOCKET,6X16
€ 1.50
26
120P0620
ref: 26
BOLT-HEX HEAD,6X20
€ 0.50
27
140251077
ref: 27
COVER,WATER PUMP
€ 42.00
28
390621020
ref: 28
HOSE-COOLING
€ 10.00
29
670B1508
ref: 29
O RING,8MM
€ 1.00
30
920051011
ref: 30
FITTING,SUCTION
€ 16.50
31
920371177
ref: 31
CLAMP,HOSE
€ 6.00
32
920551032
ref: 32
RING-O,67MM
€ 7.50
33
920551033
ref: 33
RING-O,OR2037
€ 5.50
34
920661026
ref: 34
PLUG,DRAIN,8X10
€ 6.00
35
110091099
ref: 35
GASKET,TIMING CHAIN T (NAS)
€ 2.50
36
120P0625
ref: 36
BOLT,6X25
€ 1.50
37
120491007
ref: 37
TENSIONER,TIMING CHAI
€ 25.50
38
131161014
ref: 38
ROD-PUSH,TENSIONER
€ 10.00
39
920011155
ref: 39
BOLT,TENSIONER ADJUST
€ 3.50
40
92022077
ref: 40
WASHER,6.1X12X1
€ 0.50
41
920811102
ref: 41
SPRING,TENSIONER
€ 3.50
42
120531027
ref: 42
GUIDE,CHAIN TIMING
€ 38.00
43
920571019
ref: 43
CHAIN,TIMING,72L
€ 6.50
44
920751187
ref: 44
DAMPER,TIMING CHAIN G
€ 3.50
