SWING ARM

KZ1300B2 1980 USA CANADA / MPH KPH

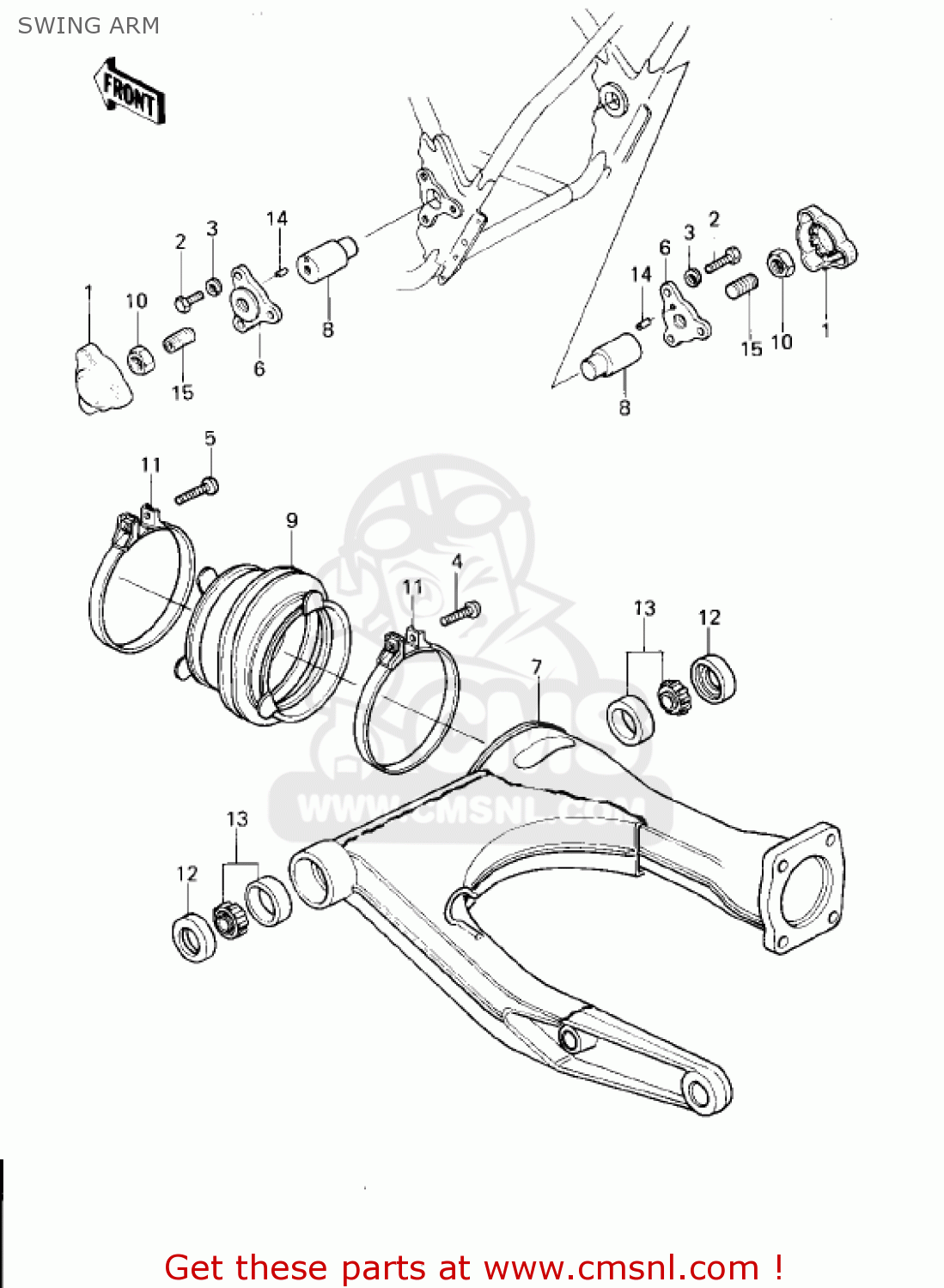

Swing arm diagram KZ1300B2 1980 USA CANADA / MPH KPH

prices are in EUR

ref

part #

description

quantity

140251087
ref: 2

COVER,SWING ARM

€ 38.00

114G0822
ref: 2

BOLT,8X22

€ 2.00

461F0800
ref: 3

WASHER-SPRING,8MM

€ 0.50

220B0420
ref: 4

SCREW-PAN-CROS

€ 2.00

220B0430
ref: 5

SCREW-PAN-CROS

€ 0.50

320851053
ref: 6

STOPPER,SWING ARM

€ 36.00

330011026
ref: 7

ARM,SWING

€ 549.50

330321016
ref: 8

SHAFT-SWING ARM

€ 33.50

490061020
ref: 9

BOOT,SWING ARM

€ 24.50

315B1400
ref: 10

NUT,14MM

€ 1.00

920371097
ref: 11

CLAMP,SWING ARM BOOT

€ 9.50

920491030
ref: 12

OIL SEAL,26406

€ 6.50

921161001
ref: 13

BEARING,R,4T30203E1

€ 39.00

555A0314
ref: 14

PIN-SPRING,3X14

€ 2.00

920091087
ref: 15

SCREW,14X22

€ 4.50
