IGNITION SWITCH/LOCKS/REFLECTORS

KZ1300B2 1980 USA CANADA / MPH KPH

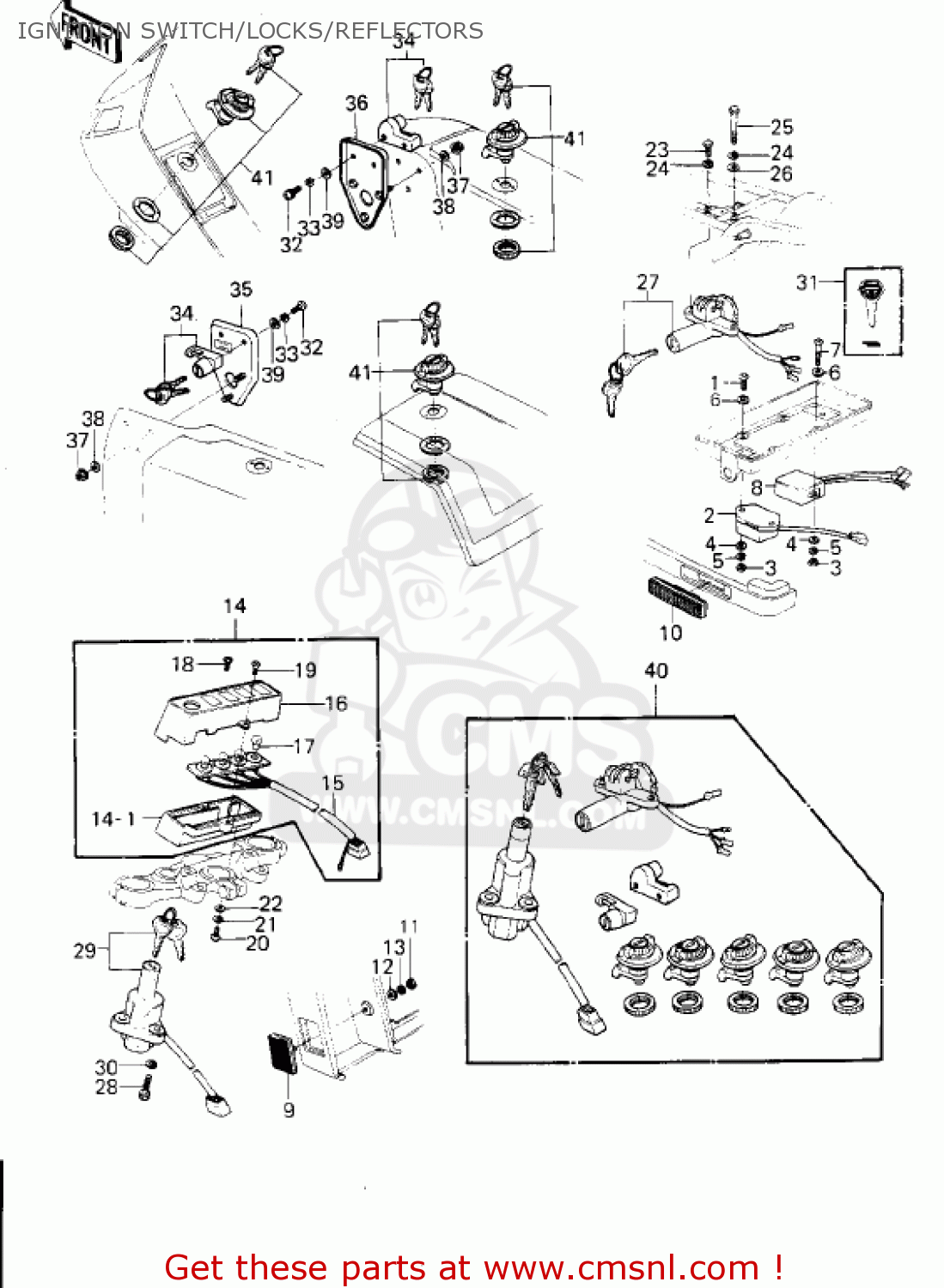

Ignition switch/locks/reflectors diagram KZ1300B2 1980 USA CANADA / MPH KPH

IGNITION SWITCH/LOCKS/REFLECTORS KZ1300B2 1980 USA CANADA / MPH KPH
IGNITION SWITCH/LOCKS/REFLECTORS KZ1300B2 1980 USA CANADA / MPH KPH
IGNITION SWITCH/LOCKS/REFLECTORS KZ1300B2 1980 USA CANADA / MPH KPH
prices are in EUR
ref
part #
description
quantity
1
220B0620
ref: 1
SCREW-PAN HEAD,6X20
220B0620
€ 2.50
2
270101024
ref: 2
SWITCH,RESERV LIGHTIN
270101024
€ 149.00
3
311B0600
ref: 3
NUT,6MM
311B0600
€ 0.50
4
410B0600
ref: 4
WASHER-PLAIN-SMALL,6M
410B0600
€ 0.50
5
461F0600
ref: 5
WASHER-SPRING,6MM
461F0600
€ 0.50
6
92022024
ref: 6
WASHER,7X16X1.2
92022024
€ 2.50
7
220B0635
ref: 7
SCREW-PAN HEAD,6X35
220B0635
€ 1.00
8
270101016
ref: 8
SWITCH,TURN SIGNAL OP
€ 137.50
9
280121003
ref: 9
FRONT
REFLECTOR,REFLEX
280121003
€ 15.00
10
280121006
ref: 10
REAR
REFLECTOR,REFLEX
€ 14.00
11
311B0500
ref: 11
NUT-HEX
311B0500
€ 0.50
12
411B0500
ref: 12
WASHER-PLAIN,5MM
411B0500
€ 0.50
13
461F0600
ref: 13
WASHER-SPRING,6MM
461F0600
€ 0.50
14
230161014
ref: 14
PILOT LAMP ASSEMBLY
€ 65.00
14-1
140251117
ref: 14-1
COVER,PILOT LAMP,LWR
140251117
€ 15.50
15
230081041
ref: 15
PILOT LAMP SOCKET ASSEMBLY
€ 33.50
16
250231014
ref: 16
PILOT LAMP COVER,UPPER
€ 46.50
17
92069018
ref: 17
BULB 12V 3W
92069018
€ 4.00
18
920091073
ref: 18
SCREW,TAPPING,3.5X10
920091073
€ 2.00
19
920091074
ref: 19
SCREW,CNTSNK HED,4X10
920091074
€ 2.00
20
220B0516A
ref: 20
SCREW-PAN HEAD,5X16
€ 2.50
21
461F0500
ref: 21
WASHER-SPRING,5MM
461F0500
€ 0.50
22
411B0500
ref: 22
WASHER-PLAIN,5MM
411B0500
€ 0.50
23
112G0612
ref: 23
BOLT-UPSET
112G0612
€ 2.50
24
461F0600
ref: 24
WASHER-SPRING,6MM
461F0600
€ 0.50
25
112G0645
ref: 25
BOLT-UPSET
€ 0.50
26
411B0600
ref: 26
WASHER-PLAIN,6MM
411B0600
€ 0.50
27
270165027
ref: 27
LOCK-ASSY,SEAT
€ 101.00
28
120P0822
ref: 28
BOLT,SOCKET,8X22
€ 3.50
29
270165034
ref: 29
IGNITION&STEERING ASY
€ 128.00
30
461F0800
ref: 30
WASHER-SPRING,8MM
461F0800
€ 0.50
31
270081103
ref: 31
KEY-LOCK,BLANK
270081103
€ 13.50
32
220B0512
ref: 32
SCREW-PAN-CROS
220B0512
€ 0.50
33
461F0500
ref: 33
WASHER-SPRING,5MM
461F0500
€ 0.50
34
270165036
ref: 34
LOCK ASSY,HELMET
€ 67.50
35
320741013
ref: 35
HELMET LOCK BRACKET
€ 8.00
36
320741014
ref: 36
HELMET LOCK BRACKET
€ 8.00
37
92017014
ref: 37
NUT,LOCK,6MM
92017014
€ 4.00
38
92022024
ref: 38
WASHER,7X16X1.2
92022024
€ 2.50
39
92022283
ref: 39
WASHER,PLAIN
€ 1.50
40
270045078
ref: 40
(ATTACHED TWO KEYS O
SWITCH LOCK ASSEMBLY
€ 104.50
41
270165035
ref: 41
LOCK ASSEMBLY
€ 39.00
