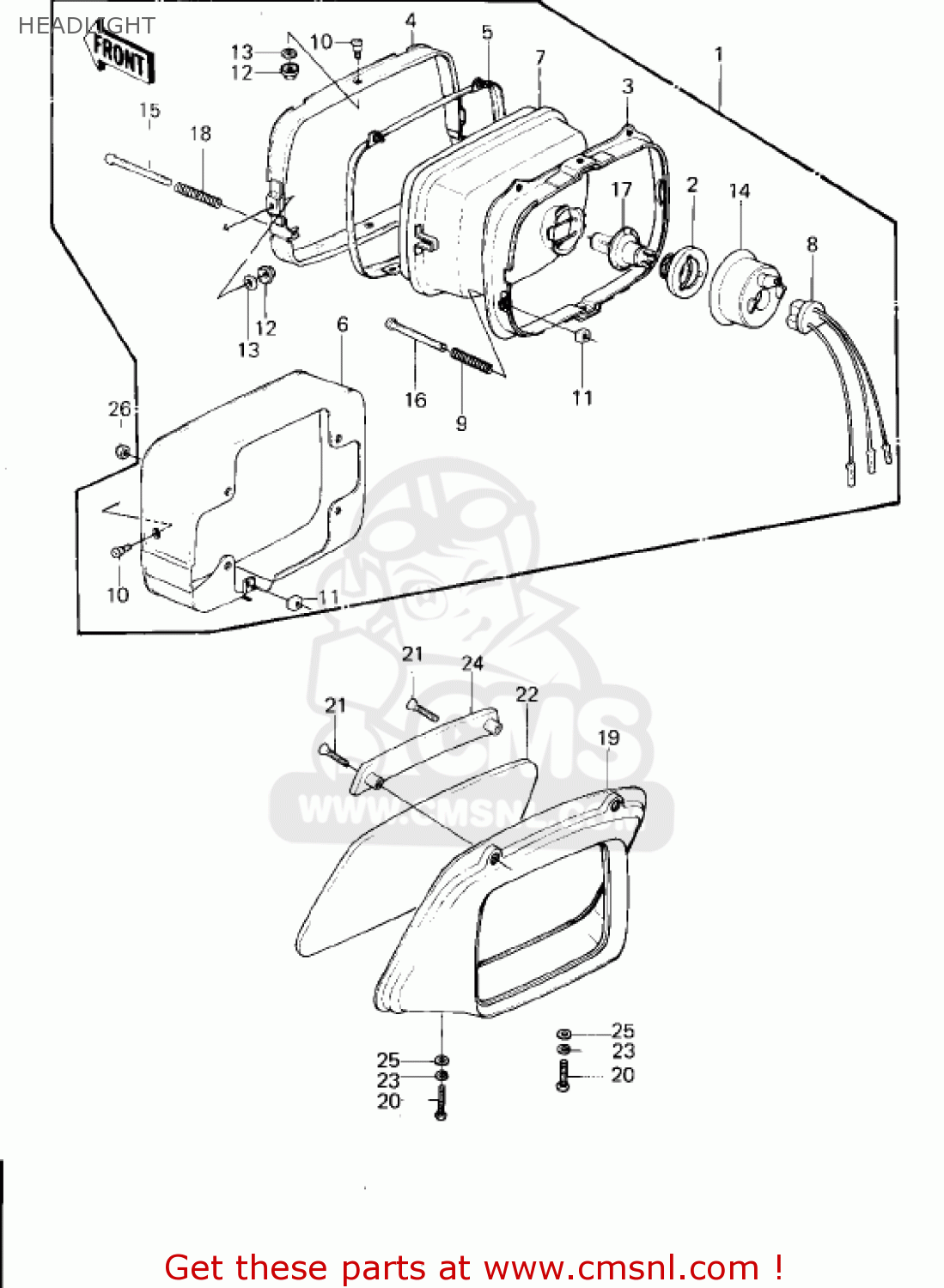

HEADLIGHT

ref

part #

description

quantity

1

230011050
ref: 1

HEADLAMP ASSEMBLY

€ 170.50

2

130911036
ref: 2

HOLDER,HEAD LAMP SOCK

€ 12.50

3

130911054
ref: 3

MOUNTING RING HOLDER

€ 23.00

4

130911055
ref: 4

MOUNTING RING HOLDER

€ 17.50

5

140201011
ref: 5

HEADLAMP RETAINER

€ 12.50

6

230051010
ref: 6

HEADLAMP BODY

€ 39.00

7

230071013
ref: 7

HEADLAMP UNIT LENS

€ 143.50

8

23008037
ref: 8

SOCKET-ASSY,HEAD LAMP

€ 12.50

9

23014005
ref: 9

SPRING-FOCUS ADJUST

€ 2.50

10

23019023
ref: 10

SCREW-PAN HEAD,5X12

€ 3.50

11

23020018
ref: 11

NUT,4MM,FOCUS ADJUST

€ 3.00

12

23020023
ref: 12

NUT,5MM

€ 3.00

13

23021012
ref: 13

WASHER

€ 3.00

14

490161023
ref: 14

COVER-SEAL,HEAD LAMP

€ 11.50

15

920091047
ref: 15

SCREW,HEAD LAMP LENS

€ 3.00

16

920091065
ref: 16

SCREW,4MM

€ 3.00

17

920691002
ref: 17
PHILIPS (H4 12342)

BULB,12V-60155W

€ 15.00

18

920811103
ref: 18

SPRING,HEAD LAMP LENS

€ 3.00

19

140251151
ref: 19

HEADLAMP SEAL COVER

€ 80.00

20

220E0630
ref: 20

SCREW-PAN HEAD,6X30

€ 2.00

21

222E0630
ref: 21

SCREW OVL CNTSNK 6X30

€ 2.00

22

230261012
ref: 22

HEADLAMP LENS SEAL

€ 171.50

23

461F0600
ref: 23

WASHER-SPRING,6MM

€ 0.50

24

560141034
ref: 24

EMBLEM

€ 24.00

25

92022024
ref: 25

WASHER,7X16X1.2

€ 2.50

26

92017014
ref: 26

NUT,LOCK,6MM

€ 4.00

all assemblies
