IGNITION
KZ1300B2 1980 USA CANADA / MPH KPH

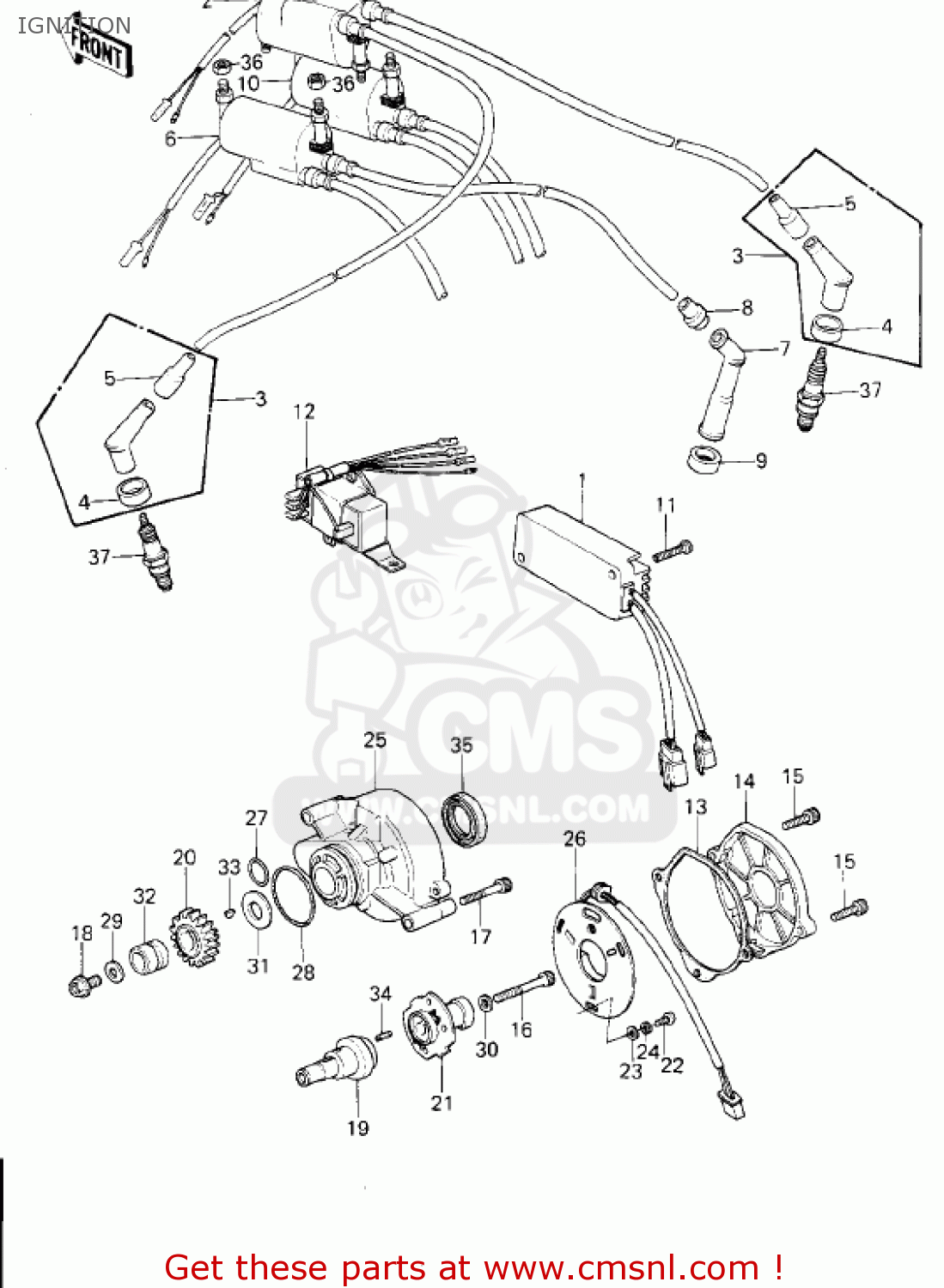

Ignition diagram KZ1300B2 1980 USA CANADA / MPH KPH
IGNITION KZ1300B2 1980 USA CANADA / MPH KPH
×
prices are in EUR
ref
part #
description
quantity
1
211191005
ref: 1
IGNITER
€ 830.50
2
211211017
ref: 2
COIL-IGNITION,#1&6
€ 168.00
3
211601014
ref: 3
NO.1,6
CAP-ASSY-PLUG
€ 27.00
4
21131004
ref: 4
NO.1,6
GROMMET,PLUG CAP
€ 7.00
5
21132005
ref: 5
NO.1,6
GROMMET,SPARK PLUG CP
€ 2.50
6
211211018
ref: 6
COIL-IGNITION,#2&5
€ 168.00
7
211301010
ref: 7
NO.2,3,4,5
CAP-SPARK PLUG
€ 38.50
8
21131005
ref: 8
NO.2,3,4,5
GROMMET,TENSION,ITALY
€ 4.00
9
21131006
ref: 9
NO.2,3,4,5
GROMMET,PLUG CAP
€ 5.00
10
211211019
ref: 10
COIL-IGNITON,#3&4
€ 168.00
11
220B0625
ref: 11
SCREW-PAN HEAD,6X25
€ 1.50
12
280181014
ref: 12
RESISTOR,IGNITION COI
€ 78.50
13
110091086
ref: 13
GASKET,PULSING C.CAP (MCA)
€ 6.50
14
110121051
ref: 14
CAP,PULSING COIL
€ 33.50
15
120P0620
ref: 15
BOLT-HEX HEAD,6X20
€ 0.50
16
120P0850
ref: 16
BOLT,ALLEN 8X50
€ 3.00
17
120P0640
ref: 17
BOLT,SOCKET,6X40
€ 1.50
18
130G0814
ref: 18
BOLT,FLANGED,8X14
€ 0.50
19
131071010
ref: 19
SHAFT,TIMING ADVANCER
€ 50.50
20
160851009
ref: 20
GEAR,TIMING ADVANCER
€ 19.50
21
211481008
ref: 21
ADVANCER,TIMING
€ 76.00
22
220B0512
ref: 22
SCREW-PAN-CROS
€ 0.50
23
410B0500
ref: 23
WASHER-PLAIN-SMALL,5M
€ 0.50
24
461F0500
ref: 24
WASHER-SPRING,5MM
€ 0.50
25
320991007
ref: 25
CASE,TIMING ADVANCER
€ 43.50
26
590261006
ref: 26
COIL-PULSING
€ 201.00
27
670B2022
ref: 27
O RING,22MM
€ 3.00
28
670B3045
ref: 28
O RING,45MM
€ 2.50
29
92022064
ref: 29
WASHER,PLAIN
€ 1.00
30
920221561
ref: 30
WASHER,8.5X20X1.6
€ 2.50
31
920261029
ref: 31
SPACER,14.3X30X1.0
€ 3.00
32
920271140
ref: 32
COLLAR,14X20X20
€ 12.50
33
92038010
ref: 33
KEY,WOODRUFF
€ 4.50
34
555A0408
ref: 34
PIN-SPRING,4X8
€ 2.50
35
920491027
ref: 35
OIL SEAL,SC32435.5
€ 12.50
36
92017014
ref: 36
NUT,LOCK,6MM
€ 4.00
37
BP6ESA
ref: 37
NGK SPARK-PLUG BP6ES
€ 3.00
37
BP7ESA
ref: 37
OPTION
NGK SPARK-PLUG BP7ES
€ 3.00
37
BPR6ESA
ref: 37
NGK SPARK-PLUG BPR6ES
€ 3.50
37
BPR7ESA
ref: 37
OPTION
NGK SPARK-PLUG BPR7ES
€ 3.50
