FENDERS

KZ1300B2 1980 USA CANADA / MPH KPH

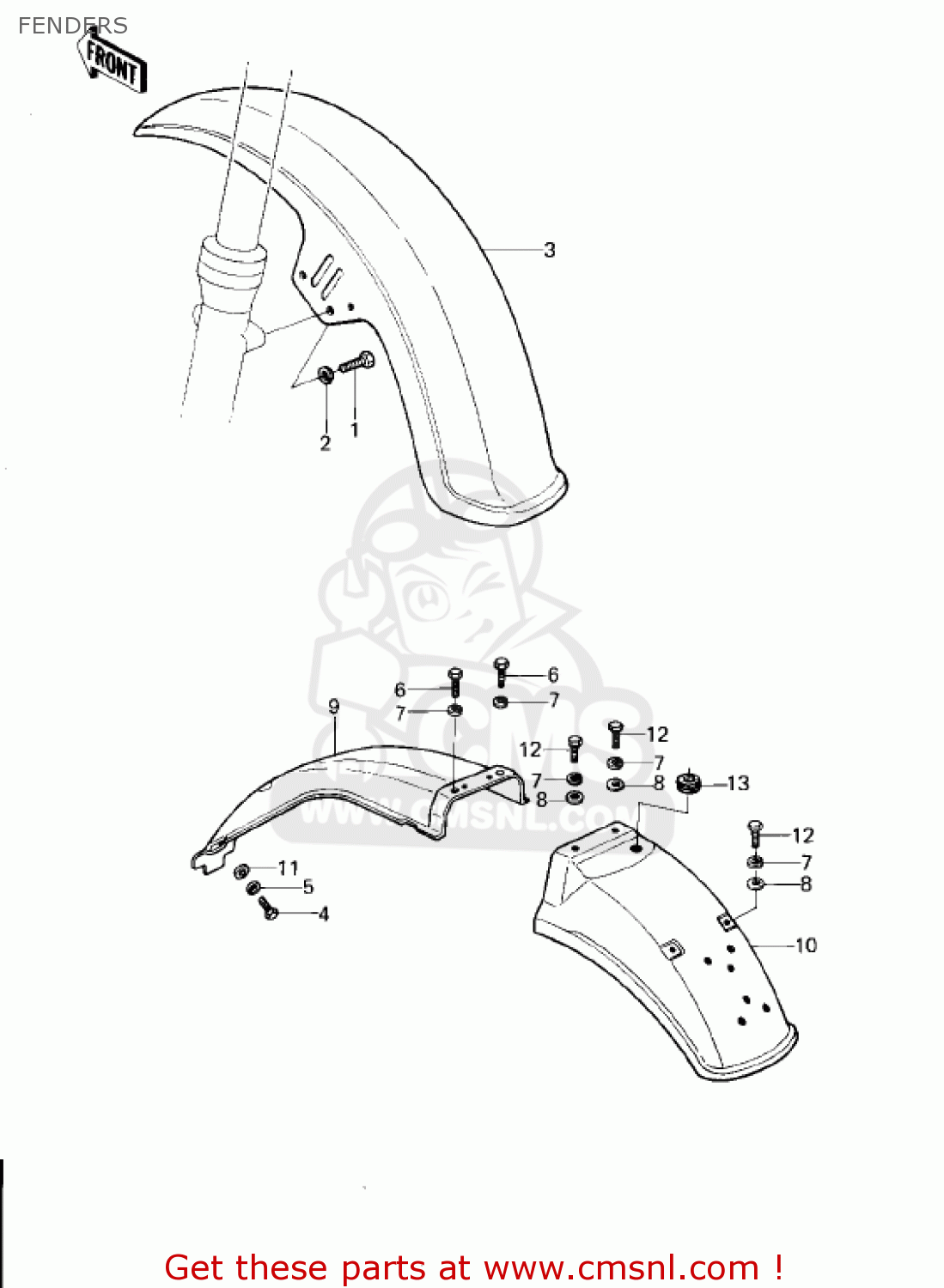

Fenders diagram KZ1300B2 1980 USA CANADA / MPH KPH

prices are in EUR

ref

part #

description

quantity

115G0816
ref: 1

BOLT-HEX,HEAD 8X16

€ 0.50

461F0800
ref: 2

WASHER-SPRING,8MM

€ 0.50

FRONT FENDER,ROYAL DARK RED

€ 87.00

112B0614
ref: 4

BOLT-UPSET 6X14

€ 2.50

461F0600
ref: 5

WASHER-SPRING,6MM

€ 0.50

112G0618
ref: 6

BOLT-UPSET

€ 0.50

461F0600
ref: 7

WASHER-SPRING,6MM

€ 0.50

411B0600
ref: 8

WASHER-PLAIN,6MM

€ 0.50

350221019
ref: 9
FRONT

FENDER,REAR

€ 97.00

350221031D6
ref: 10
REAR

REAR FENDER,ROYAL DARK RED

€ 86.00

92022125
ref: 11

WASHER,6.5X20X1.6

€ 1.00

112B0614
ref: 12

BOLT-UPSET 6X14

€ 2.50

92071099
ref: 13

GROMMET, REAR FENDER

€ 3.00
