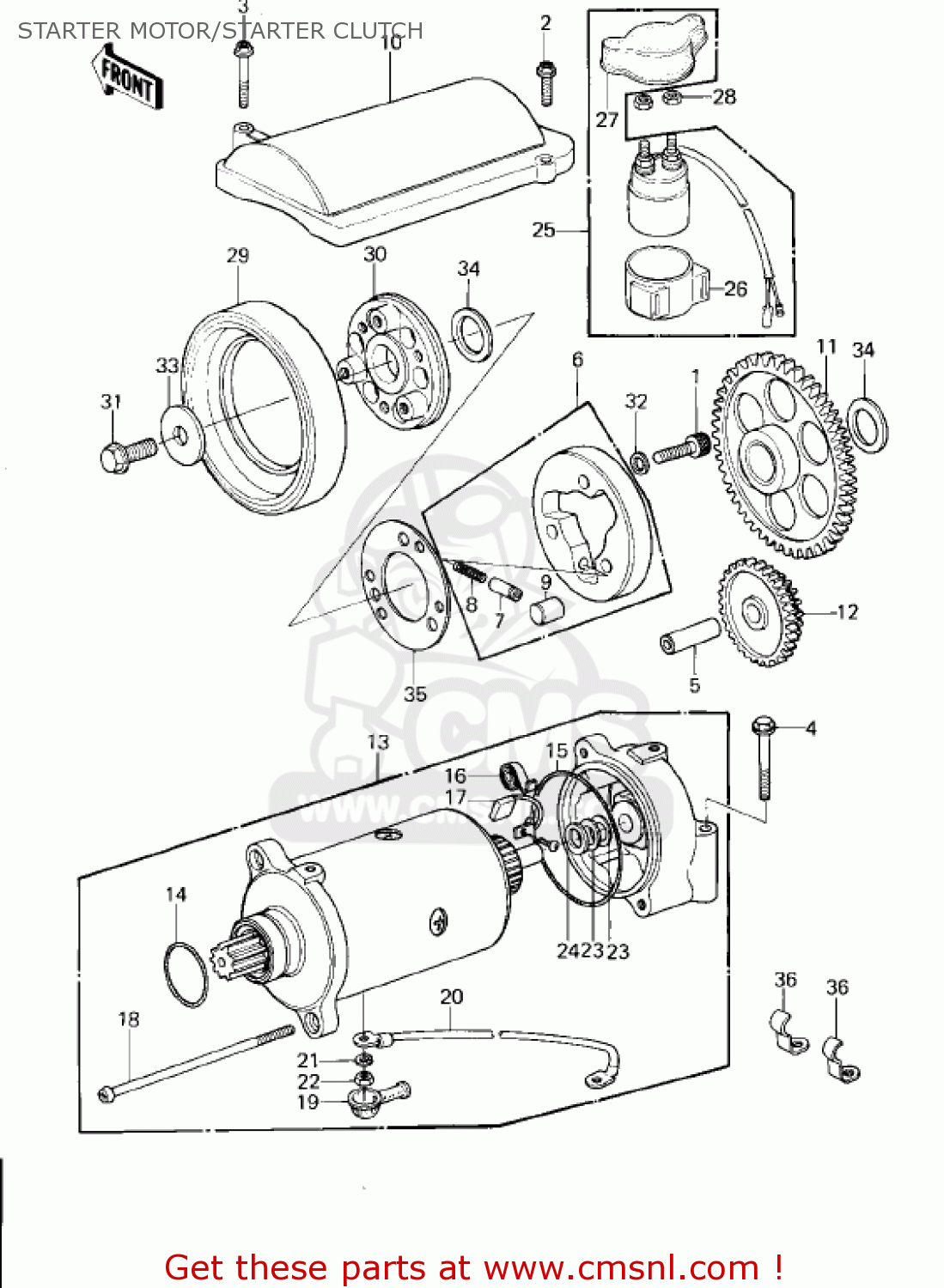

STARTER MOTOR/STARTER CLUTCH

ref

part #

description

quantity

1

120P0830
ref: 1

BOLT,SOCKET,8X30

€ 2.00

2

130B0625
ref: 2

BOLT,FLANGED,6X25

€ 0.50

3

130B0640
ref: 3

BOLT,FLANGED,6X40

€ 0.50

4

130G0655
ref: 4

BOLT,FLANGED,6X55

€ 3.00

5

13002019
ref: 5

PIN-PISTON

€ 10.00

6

131931012
ref: 6

CLUTCH TARIER

€ 152.50

7

92043087
ref: 7

PIN

€ 8.00

8

92081110
ref: 8

SPRING

€ 3.00

9

92122004
ref: 9

ROLLER,15X13

€ 7.00

10

140251752
ref: 10

COVER,STARTER MOTOR

€ 51.00

11

160851010
ref: 11

GEAR,STARTER CLUTCH

€ 109.00

12

160851011
ref: 12

GEAR,STARTER REDUCTON

€ 72.50

13

211631005
ref: 13

MOTOR ASSY,STARTER

€ 665.00

14

21027004
ref: 14

ORING-STARTING MOTR

€ 6.50

15

21027003
ref: 15

RING-O,STARTER MOTOR

€ 6.00

16

21040003
ref: 16

SPRING-BRUSH

€ 4.50

17

21039003
ref: 17

BRUSH,CARBON

€ 23.50

18

21015005
ref: 18

SCREW-PAN HEAD,6X110

€ 5.50

19

21017017
ref: 19

GROMMET-CORD

€ 6.50

20

260111054
ref: 20

WIRE,STARTER MOTOR

€ 37.50

21

461F0600
ref: 21

WASHER-SPRING,6MM

€ 0.50

22

312B0600
ref: 22

NUT,6MM

€ 0.50

23

21025011
ref: 23

WASHER, THRUST, 0.2T

€ 4.00

24

21025010
ref: 24

WASHER,THRUST,T=1.6

€ 4.00

25

270101025
ref: 25

SWITCH,MAGNETIC

€ 75.50

26

21064002
ref: 26

DAMPER,MAGNETIC SWITC

€ 13.50

27

140251165
ref: 27

COVER,MAGNETIC SWITCH

€ 10.50

28

92017014
ref: 28

NUT,LOCK,6MM

€ 4.00

29

920751118
ref: 29

DAMPER,TORSION

€ 123.50

30

490301002
ref: 30

HUB,TORSION DAMPER

€ 89.00

31

920011212
ref: 31

BOLT,DAMPER,L.H.THRED

€ 2.00

32

920221108
ref: 32

WASHER,8.5X13.5X2

€ 2.50

33

92022307
ref: 33

WASHER

€ 3.00

34

920261059
ref: 34

SPACER,25X34X2.3

€ 5.50

35

92026112
ref: 35

SPACER,45X79.5X0.5 (NAS)

€ 7.50

36

920371345
ref: 36

CLAMP,LEAD WIRE

€ 2.50
