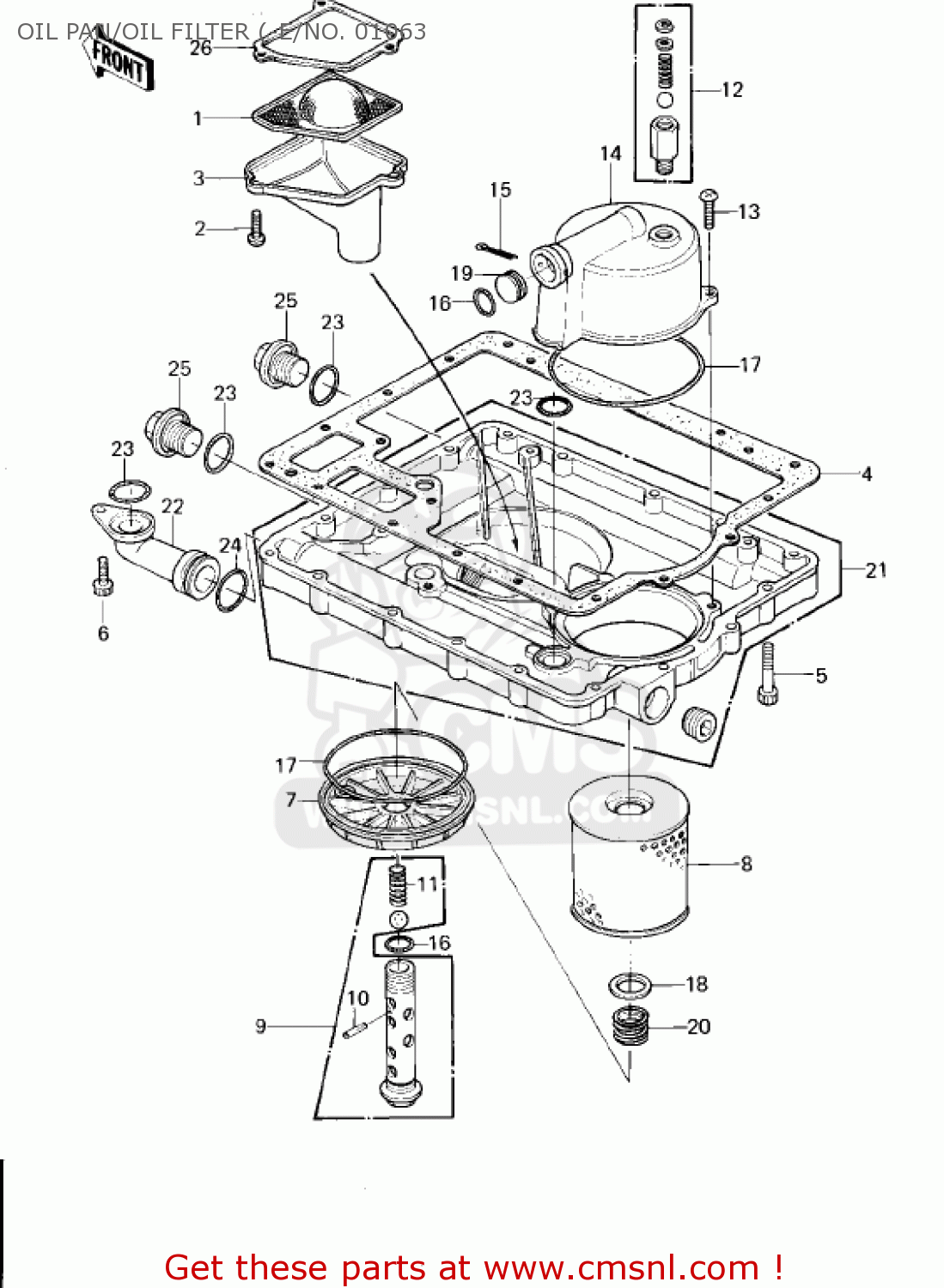

OIL PAN/OIL FILTER (-E/NO. 01063

ref

part #

description

quantity

1

140431007
ref: 1

FILTER,OIL

€ 15.50

2

220B0620
ref: 2

SCREW-PAN HEAD,6X20

€ 2.50

3

320991006
ref: 3

CASE,OIL FILTER

€ 12.00

4

110091093
ref: 4

GASKET,OIL PAN (MCA)

€ 22.50

5

120P0635
ref: 5

BOLT,SOCKET,6X35

€ 1.50

6

120P0620
ref: 6

BOLT-HEX HEAD,6X20

€ 0.50

7

140251170
ref: 7

COVER,OIL FILTER

€ 35.00

8

16099002
ref: 8

ELEMENT-OIL FILTER

€ 13.00

9

161261006
ref: 9

BOLT ASSY,OIL FILTER

€ 39.00

10

92043111
ref: 10

SPRING PIN

€ 4.00

11

92081133
ref: 11

SPRING,PISTON

€ 5.50

12

161301001
ref: 12

VALVE-ASSY-RELIEF

€ 28.50

13

220B0620
ref: 13

SCREW-PAN HEAD,6X20

€ 2.50

14

320991008
ref: 14

CASE,OIL FILTER

€ 33.50

15

550D2040
ref: 15

PIN,COTTER,2.0X40

€ 1.50

16

670B2016
ref: 16

O RING,16MM

€ 1.00

17

671B2595
ref: 17

O RING,95MM

€ 4.50

18

920221012
ref: 18

WASHER,20.5X30X1

€ 3.00

19

920661023
ref: 19

PLUG,OIL GALLARY,16X3

€ 3.50

20

920811018
ref: 20

SPRING,OIL FILTER

€ 3.00

21

490345008
ref: 21

PAN-OIL

€ 120.50

22

520141002
ref: 22

ELBOW,OIL PASSAGE

€ 31.50

23

670B2022
ref: 23

O RING,22MM

€ 3.00

24

671B2525
ref: 24

O RING,25MM

€ 3.00

25

920011183
ref: 25

BOLT,OIL DRAIN

€ 37.50

26

110091193
ref: 26

GASKET,OIL FILTER (MCA)

€ 3.00

all assemblies
