FRONT BEVEL GEARS
KZ1300B2 1980 USA CANADA / MPH KPH

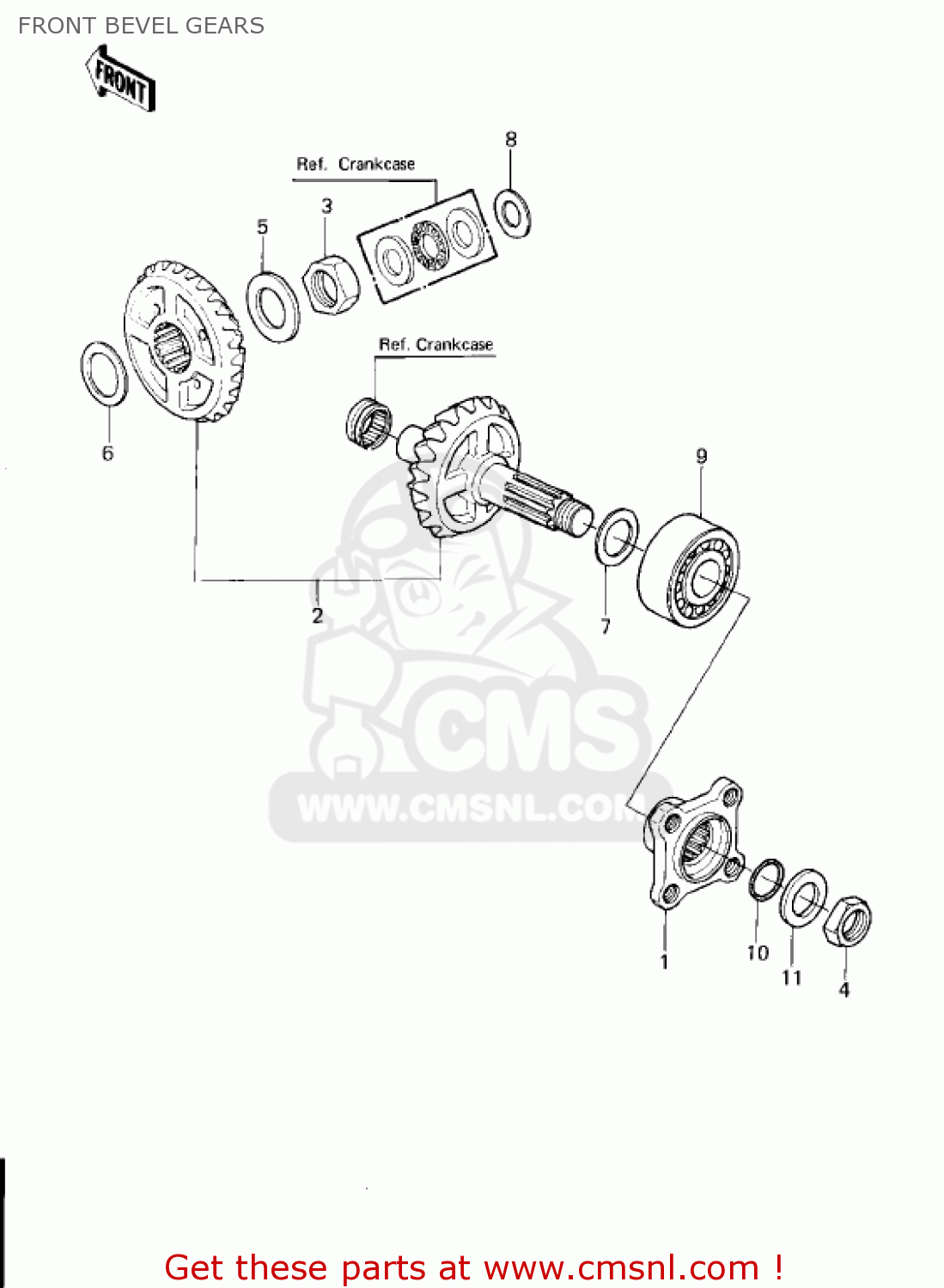

Front bevel gears diagram KZ1300B2 1980 USA CANADA / MPH KPH
FRONT BEVEL GEARS KZ1300B2 1980 USA CANADA / MPH KPH
×
prices are in EUR
ref
part #
description
quantity
1
420341010
ref: 1
COUPLING,OUTPUT SHAFT
€ 83.00
2
131015025
ref: 2
GEAR SET,FRONT BEVEL
€ 548.00
3
920151057
ref: 3
NUT,24MM
€ 10.50
4
920151058
ref: 4
NUT,20M/M
€ 4.50
5
920221104
ref: 5
WASHER,24M/M,SPRING
€ 6.50
6
920251006
ref: 6
SHIM,30.3X40X0.6
€ 6.00
6
920251007
ref: 6
SHIM,30.3X40X0.9
€ 4.50
6
920251008
ref: 6
SHIM,30.3X40X1.2
€ 3.00
6
920251009
ref: 6
SHIM,30.3X40X0.1
€ 4.50
6
920251010
ref: 6
SHIM,30.3X40X0.15
€ 4.50
6
920251011
ref: 6
SHIM,30.3X40X0.20
€ 4.50
6
920251012
ref: 6
SHIM,30.3X40X0.30
€ 5.50
7
920251013
ref: 7
SHIM,25.3X36X0.6
€ 5.50
7
920251014
ref: 7
SHIM,25.3X36X0.9
€ 5.50
7
920251696
ref: 7
SHIM,25.3X36X1.2
€ 5.50
7
920251016
ref: 7
SHIM,25.3X36X0.1
€ 5.00
7
920251017
ref: 7
SHIM,25.3X36X0.15
€ 5.50
7
920251018
ref: 7
SHIM,25.3X36X0.2
€ 4.50
7
920251019
ref: 7
SHIM,25.3X36X0.3
€ 4.00
8
920251020
ref: 8
SHIM,15.3X27.5X0.6
€ 3.50
8
920251021
ref: 8
SHIM,15.3X27.5X0.90
€ 4.50
8
920251022
ref: 8
SHIM,15.3X27.5X1.20
€ 4.50
8
920251023
ref: 8
SHIM,15.3X27.5X0.10
€ 4.50
8
920251024
ref: 8
SHIM,15.3X27.5X0.15
€ 3.00
8
920251025
ref: 8
SHIM,15.3X27.5X0.20
€ 4.50
8
920251026
ref: 8
SHIM,15.3X27.5X0.30
€ 4.50
9
920451147
ref: 9
BEARING-BALL,5305SH2C
€ 94.50
10
920551029
ref: 10
RING-O,20.5MM
€ 3.00
11
92125002
ref: 11
WASHER,SPRING,20MM
€ 8.50
