TRANSMISSION

KZ1000R1 EDDIE LAWSON REPLICA 1982 USA CANADA

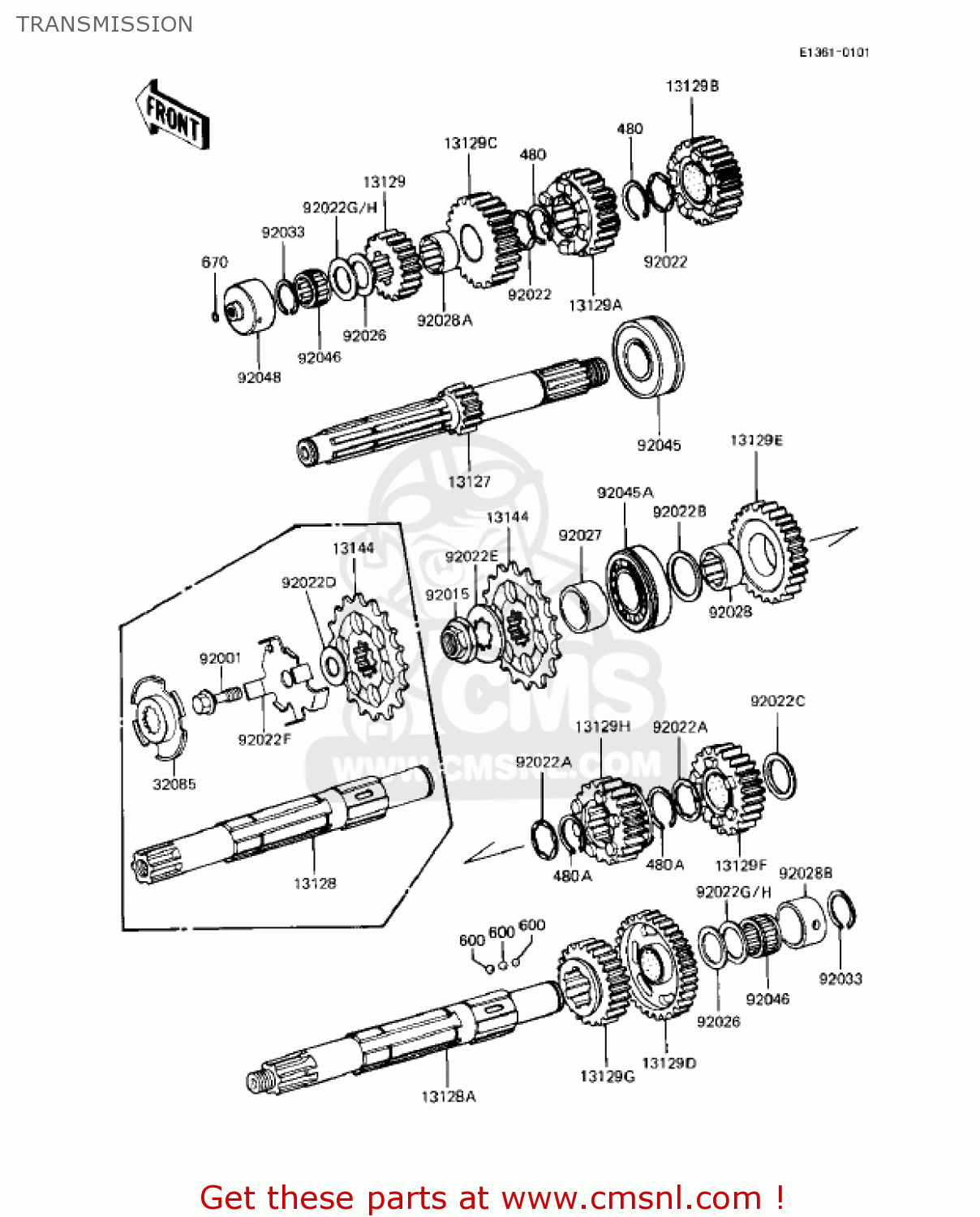

Transmission diagram KZ1000R1 EDDIE LAWSON REPLICA 1982 USA CANADA

TRANSMISSION KZ1000R1 EDDIE LAWSON REPLICA 1982 USA CANADA
TRANSMISSION KZ1000R1 EDDIE LAWSON REPLICA 1982 USA CANADA
TRANSMISSION KZ1000R1 EDDIE LAWSON REPLICA 1982 USA CANADA
prices are in EUR
ref
part #
description
quantity
13127
131271034
ref: 13127
SHAFT-TRANSMISSION IN
131271034
€ 244.50
13128
131281030
ref: 13128
SHAFT-TRANSMISSION OU
131281030
€ 130.00
13128A
131281048
ref: 13128A
SHAFT-TRANSMISSION OU
131281048
€ 257.00
13129
131291035
ref: 13129
UNAVAILABLE IN PRICE BOOK
€ 0.00
13129A
131291236
ref: 13129A
GEAR,INPUT 3RD,21T
€ 128.50
13129B
131291237
ref: 13129B
GEAR,INPUT 4TH,23T
131291237
€ 101.50
13129C
131291238
ref: 13129C
GEAR,INPUT TOP,25T
131291238
€ 149.50
13129D
131291239
ref: 13129D
GEAR,OUTPUT LOW,37T
131291239
€ 188.00
13129E
131291240
ref: 13129E
GEAR,OUTPUT 2ND,33T
131291240
€ 159.50
13129F
131291241
ref: 13129F
GEAR,OUTPUT 3RD,30T
€ 114.50
13129G
131291242
ref: 13129G
GEAR,OUTPUT 4TH,27T
€ 120.50
13129H
131291243
ref: 13129H
GEAR,OUTPUT TOP,26T
131291243
€ 192.00
13144
131441042
ref: 13144
SPROCKET-OUTPUT,15T
131441042
€ 31.50
32085
320851101
ref: 32085
STOPPER,ENGINE SPROCK
320851101
€ 8.50
92001
920011479
ref: 92001
BOLT,FLANGED,10X39
920011479
€ 17.00
92015
920151210
ref: 92015
NUT,20MM
920151210
€ 12.00
92022
920221077
ref: 92022
WASHER,LOCK (O.D=35O)
920221077
€ 7.50
92022A
920221218
ref: 92022A
WASHER,TOOTHED,30X42X
920221218
€ 3.00
92022B
920221219
ref: 92022B
WASHER,28.3X42X2.9
920221219
€ 10.50
92022C
920221220
ref: 92022C
WASHER,32.3X42X3
920221220
€ 7.50
92022D
920221274
ref: 92022D
WASHER,12.3X38X2.3
920221274
€ 4.50
92022E
922001060
ref: 92022E
WASHER
922001060
€ 4.00
92022F
920221351
ref: 92022F
WASHER,SPROCKET STOPP
920221351
€ 6.50
92022G
92022212
ref: 92022G
WASHER-PLAIN,22MM
92022212
€ 6.50
92022H
92022213
ref: 92022H
WASHER,22.3X35X1.2
92022213
€ 7.00
92026
920261020
ref: 92026
SPACER,22X35.5X1.0
920261020
€ 3.50
92027
920271339
ref: 92027
COLLAR,28X40X20.5
920271339
€ 19.00
92028
920281112
ref: 92028
BUSHING,2ND GEAR
920281112
€ 28.00
92028A
920281124
ref: 92028A
BUSHING,TOP GEAR
920281124
€ 31.00
92028B
92028123
ref: 92028B
BUSHING,OUTPUT SHAFT
92028123
€ 36.50
92033
92033025
ref: 92033
CIRCLIP,25MM
92033025
€ 3.00
92045
920451028
ref: 92045
BEARING-BALL,5305NSH2
920451028
€ 135.00
92045A
920451034
ref: 92045A
BEARING-BALL,63/28NC3
920451034
€ 53.50
92046
92046031
ref: 92046
BEARING-NEEDLE,FWF-22
92046031
€ 19.50
92048
920481012
ref: 92048
RACE,DRIVE SHAFT BEAR
920481012
€ 40.00
480
480J2800
ref: 480
CIRCLIP-TYPE-C,28MM
480J2800
€ 3.50
480A
480J3200
ref: 480A
CIRCLIP-TYPE-C,32MM
480J3200
€ 1.00
600
600A0600
ref: 600
BALL-STEEL,3/16
600A0600
€ 0.50
670
670B1508
ref: 670
O RING,8MM
670B1508
€ 1.00
