Genuine KZ Kawasaki Parts delivered quickly!


ENGINE COVERS

KZ1000R1 EDDIE LAWSON REPLICA 1982 USA CANADA

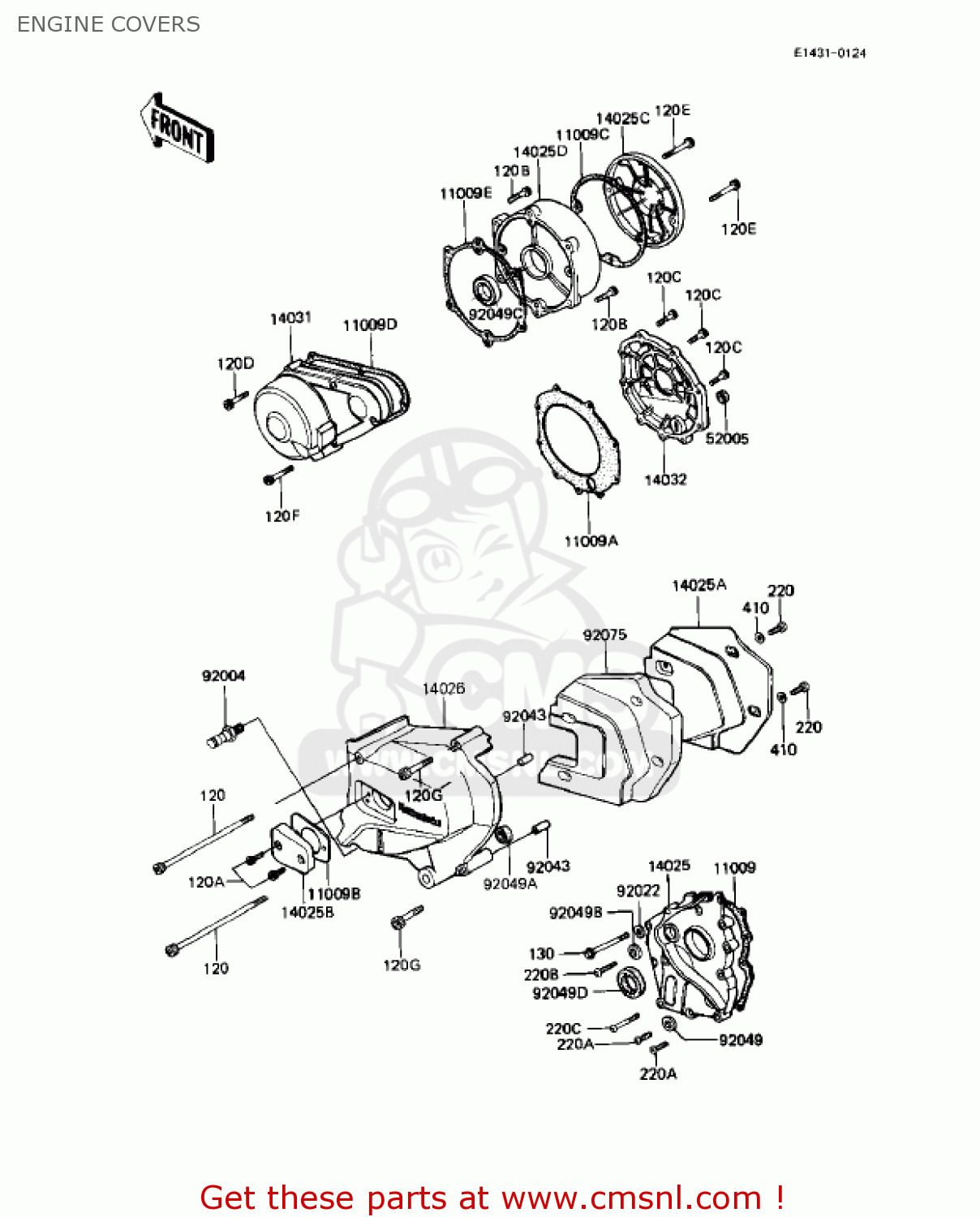

Engine covers diagram KZ1000R1 EDDIE LAWSON REPLICA 1982 USA CANADA

ENGINE COVERS KZ1000R1 EDDIE LAWSON REPLICA 1982 USA CANADA
ENGINE COVERS KZ1000R1 EDDIE LAWSON REPLICA 1982 USA CANADA
ENGINE COVERS KZ1000R1 EDDIE LAWSON REPLICA 1982 USA CANADA
prices are in EUR
ref
part #
description
quantity
11009
110601069
ref: 11009
GASKET,TRANSMISSION C (NAS)
110601069
€ 12.00
11009A
110601070
ref: 11009A
GASKET CLUTCH,COVER (NAS)
110601070
€ 20.50
11009B
110601073
ref: 11009B
GASKET,CLUTCH ADJUSTI (NAS)
110601073
€ 3.50
11009C
110601072
ref: 11009C
GASKET,PULSING COIL C (NAS)
110601072
€ 9.00
11009D
110601075
ref: 11009D
GASKET,GENERATOR COVE (NAS)
110601075
€ 15.00
11009E
110601071
ref: 11009E
GASKET,RH ENGINE COVE (NAS)
110601071
€ 10.50
14025
140251240
ref: 14025
TRANSMISSION COVER
140251240
€ 103.50
14025A
140251252
ref: 14025A
CN
COVER,SOUND ARRESTER
140251252
€ 24.50
14025B
140251409
ref: 14025B
COVER,CLUTCH RELEASE,
140251409
€ 19.50
14025C
140251610
ref: 14025C
COVER,PULSING COIL
140251610
€ 50.50
14025D
140251426
ref: 14025D
COVER,ENGINE,RH,BLACK
140251426
€ 171.50
14026
140261066
ref: 14026
COVER-CHAIN,BLACK
140261066
€ 104.00
14031
140311082
ref: 14031
COVER-GENERATOR,BLACK
140311082
€ 337.50
14032
140321075
ref: 14032
COVER-CLUTCH,BLACK
140321075
€ 145.00
52005
520051009
ref: 52005
GAUGE,OIL LEVEL
520051009
€ 12.00
92004
920041034
ref: 92004
STUD,CHNG PEDAL PIVOT
920041034
€ 14.50
92022
92022077
ref: 92022
WASHER,6.1X12X1
92022077
€ 0.50
92043
92042007
ref: 92043
PIN-DOWEL
92042007
€ 4.00
92049
92049004
ref: 92049
OIL SEAL SB12205
92049004
€ 6.00
92049A
920491003
ref: 92049A
OIL SEAL,CLUTCH
920491003
€ 8.00
92049B
920491033
ref: 92049B
OIL SEAL,SC32487
920491033
€ 12.00
92049C
920491033
ref: 92049C
OIL SEAL,SC32487
920491033
€ 12.00
92049D
920491070
ref: 92049D
SEAL-OIL,AE2343F0
920491070
€ 11.50
92075
920751269
ref: 92075
CN
DAMPER,SOUND
€ 31.00
120
120S06125
ref: 120
BOLT-SOCKET,6X125,BLA
120S06125
€ 9.50
120A
120S0614
ref: 120A
BOLT-SOCKET,6X14,BLAC
120S0614
€ 2.50
120B
920021326
ref: 120B
BOLT,SOCKET,6X22
920021326
€ 3.00
120C
120S0625
ref: 120C
BOLT-SOCKET,6X25,BLAC
120S0625
€ 1.00
120D
120S0630
ref: 120D
BOLT-SOCKET,6X30,BLAC
120S0630
€ 1.00
120E
120S0635
ref: 120E
BOLT-SOCKET
120S0635
€ 1.00
120F
120S0640
ref: 120F
BOLT-SOCKET
120S0640
€ 1.00
120G
120S0670
ref: 120G
BOLT-SOCKET,6X70,BLAC
120S0670
€ 3.50
130
130G0655
ref: 130
BOLT,FLANGED,6X55
130G0655
€ 3.00
220
220B0612
ref: 220
CN
SCREW-PAN HEAD,6X12
220B0612
€ 1.00
220A
220B0620
ref: 220A
SCREW-PAN HEAD,6X20
220B0620
€ 2.50
220B
220B0628
ref: 220B
SCREW-PAN HEAD,6X28
220B0628
€ 2.50
220C
220B0640
ref: 220C
SCREW-PAN HEAD,6X40
220B0640
€ 2.00
410
410B0600
ref: 410
CN
WASHER-PLAIN-SMALL,6M
410B0600
€ 0.50
