CRANKCASE

KZ1000R1 EDDIE LAWSON REPLICA 1982 USA CANADA

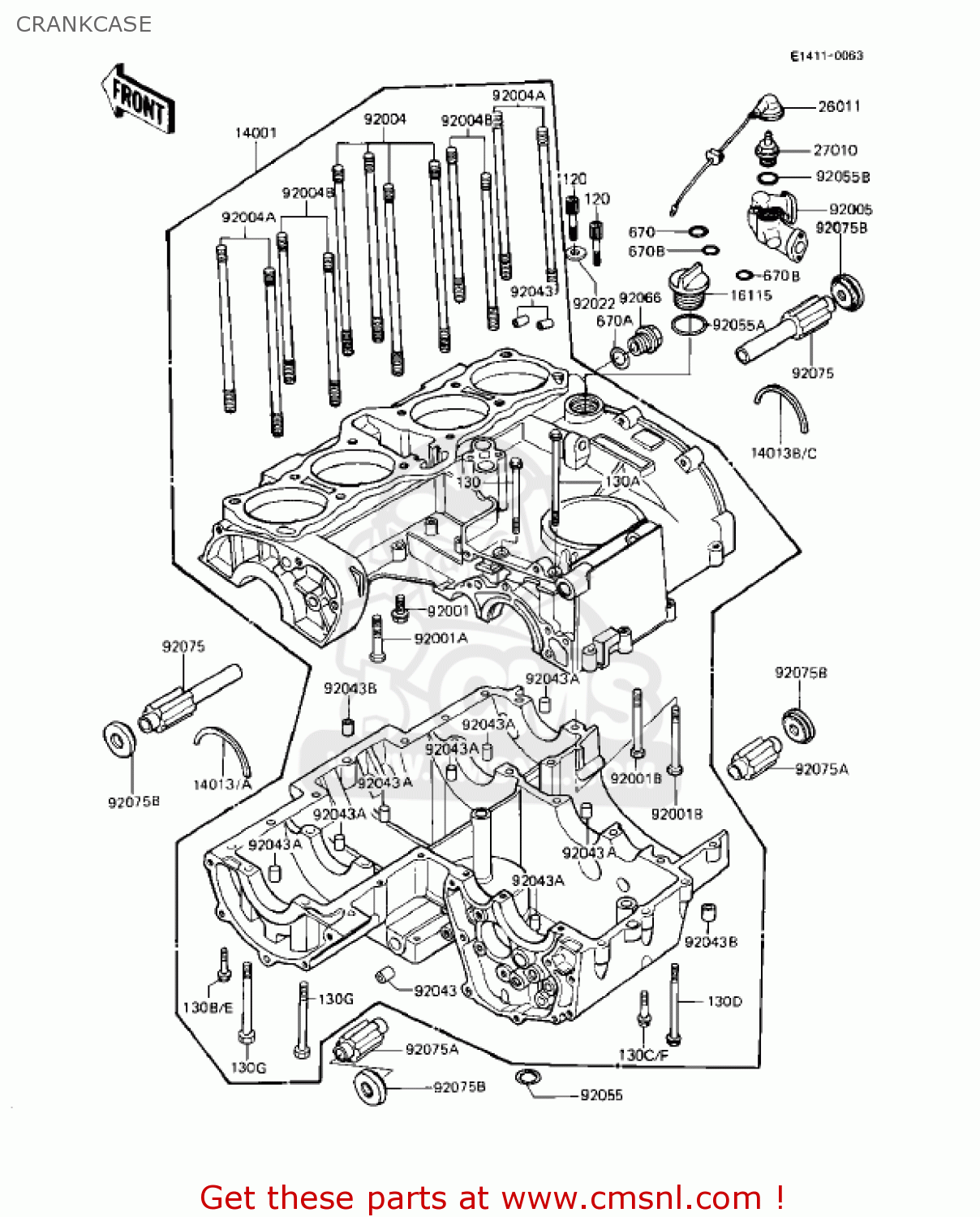

Crankcase diagram KZ1000R1 EDDIE LAWSON REPLICA 1982 USA CANADA

CRANKCASE KZ1000R1 EDDIE LAWSON REPLICA 1982 USA CANADA
CRANKCASE KZ1000R1 EDDIE LAWSON REPLICA 1982 USA CANADA
CRANKCASE KZ1000R1 EDDIE LAWSON REPLICA 1982 USA CANADA
prices are in EUR
ref
part #
description
quantity
14001
140015112
ref: 14001
SET-CRANKCASE,F.BLACK
€ 1,847.00
14013
14013013
ref: 14013
RING-POSITION,T=1.90
14013013
€ 7.50
14013A
140131004
ref: 14013A
RING-POSITION,CRANK
140131004
€ 3.00
14013B
140131005
ref: 14013B
RING-POSITION
140131005
€ 3.00
14013C
140131006
ref: 14013C
RING-POSITION,T=1.90
140131006
€ 3.50
16115
161151009
ref: 16115
CAP-OIL FILLER
161151009
€ 10.00
26011
260111129
ref: 26011
WIRE-LEAD,OIL SWITCH
260111129
€ 17.50
27010
270101013
ref: 27010
SWITCH,OIL PRESSURE
270101013
€ 28.50
92001
920011349
ref: 92001
BOLT,FLANGED,8X16
920011349
€ 3.50
92001A
92003107
ref: 92001A
BOLT-HEX HEAD,8X72
92003107
€ 10.00
92001B
92003108
ref: 92001B
BOLT-HEX HEAD,8X81
92003108
€ 4.50
92004
920041002
ref: 92004
STUD, 10X167
920041002
€ 10.50
92004A
920041003
ref: 92004A
STUD, 10X158
920041003
€ 10.50
92004B
920041004
ref: 92004B
STUD, 10X133
920041004
€ 11.50
92005
920051055
ref: 92005
FITTING,OIL COOLER
920051055
€ 103.50
92022
920221086
ref: 92022
WASHER,8.2X16X1
920221086
€ 2.50
92043
92042007
ref: 92043
PIN-DOWEL
92042007
€ 4.00
92043A
92042016
ref: 92043A
PIN,DOWEL,6X16
92042016
€ 3.50
92043B
920431037
ref: 92043B
PIN,DOWEL,10X8.2X14
920431037
€ 0.50
92055
92055048
ref: 92055
RING-O,OD=18
92055048
€ 3.00
92055A
92055049
ref: 92055A
'0'RING,31MM
92055049
€ 2.50
92055B
92055055
ref: 92055B
'0'RING
92055055
€ 2.50
92066
920661098
ref: 92066
PLUG,14X12,F.BLACK
920661098
€ 12.50
92075
920751272
ref: 92075
DAMPER,ENGINE MOUNT,U
920751272
€ 32.50
92075A
920751273
ref: 92075A
DAMPER,ENGINE MOUNT,L
920751273
€ 19.00
92075B
920751274
ref: 92075B
DAMPER,ENG MOUNT,SIDE
920751274
€ 11.00
120
120P0840
ref: 120
BOLT-SOCKET,8X40
120P0840
€ 2.00
130
130G06100
ref: 130
BOLT-FLANGED,6X100
€ 2.50
130A
130G06115
ref: 130A
BOLT-FLANGED,6X115
130G06115
€ 2.50
130B
130G0640
ref: 130B
BOLT,FLANGED,6X40
130G0640
€ 0.50
130C
130G0655
ref: 130C
BOLT,FLANGED,6X55
130G0655
€ 3.00
130D
130G0695
ref: 130D
BOLT-FLANGED,6X95
€ 3.50
130E
130J0640
ref: 130E
BOLT-FLANGED,6X40,BLA
130J0640
€ 3.00
130F
130J0655
ref: 130F
BOLT-FLANGED,6X55,BLA
€ 3.00
130G
130P0895
ref: 130G
BOLT-FLANGED,8X95
130P0895
€ 7.00
670
670B1509
ref: 670
O RING,9MM
670B1509
€ 1.00
670A
670B2015
ref: 670A
O RING,15MM
670B2015
€ 1.00
670B
670B2018
ref: 670B
O RING,18MM
670B2018
€ 1.00
