CYLINDER/PISTONS

KZ1000R1 EDDIE LAWSON REPLICA 1982 USA CANADA

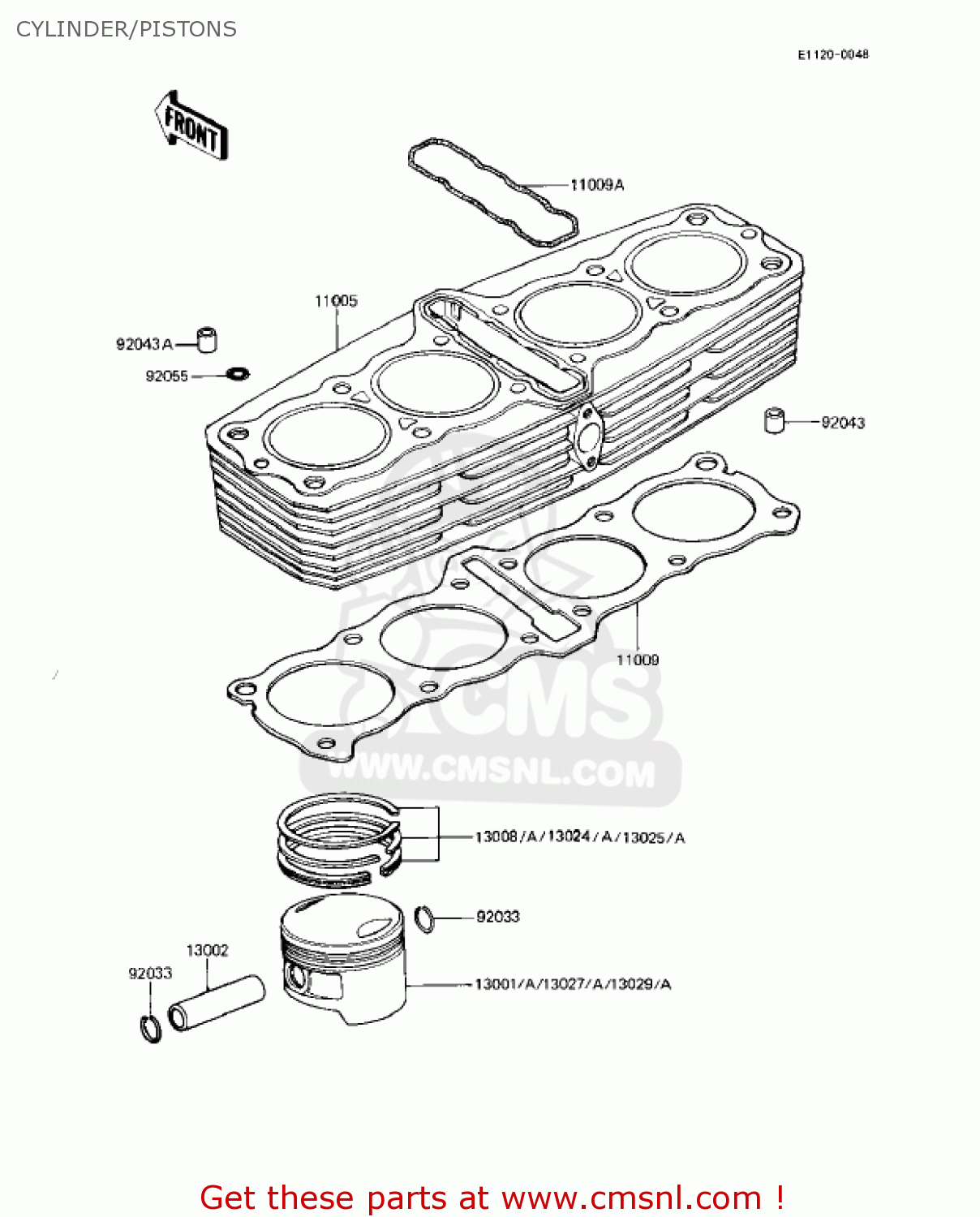

Cylinder/pistons diagram KZ1000R1 EDDIE LAWSON REPLICA 1982 USA CANADA

CYLINDER/PISTONS KZ1000R1 EDDIE LAWSON REPLICA 1982 USA CANADA
CYLINDER/PISTONS KZ1000R1 EDDIE LAWSON REPLICA 1982 USA CANADA
CYLINDER/PISTONS KZ1000R1 EDDIE LAWSON REPLICA 1982 USA CANADA
prices are in EUR
ref
part #
description
quantity
11005
110051323
ref: 11005
CYLINDER-ENGINE,BLACK
€ 1,343.50
11009
110601067
ref: 11009
GASKET,CYLINDER BASE (NAS)
110601067
€ 23.00
11009A
110091208
ref: 11009A
GASKET,CYLINDER (NAS)
110091208
€ 61.50
13001
130011119
ref: 13001
PISTON-ENGINE,STD
130011119
€ 81.00
13001A
130011119
ref: 13001A
PISTON-ENGINE,STD
130011119
€ 81.00
13002
130021013
ref: 13002
PIN-PISTON
130021013
€ 5.00
13008
130085035
ref: 13008
RING-SET-PISTON,STD
130085035
€ 93.00
13008A
130085056
ref: 13008A
RING-SET-PISTON,STD
130085056
€ 64.00
13024
130245018
ref: 13024
RING SET,1.00 O/S
130245018
€ 64.00
13024A
130245024
ref: 13024A
RING-SET-PISTON LL,O/
130245024
€ 76.00
13025
130255018
ref: 13025
RING-SET-PISTON L,O/S
130255018
€ 64.00
13025A
130255024
ref: 13025A
RING-SET-PISTON L,O/S
130255024
€ 94.00
13027
130271056
ref: 13027
PISTON-ENGINE LL,O/S
130271056
€ 107.50
13027A
130271056
ref: 13027A
PISTON-ENGINE LL,O/S
130271056
€ 107.50
13029
130291058
ref: 13029
PISTON-ENGINE L,O/S 0
130291058
€ 107.50
13029A
130291058
ref: 13029A
PISTON-ENGINE L,O/S 0
130291058
€ 107.50
92033
920331054
ref: 92033
CIRCLIP,PISTON PIN
920331054
€ 2.00
92043
920431266
ref: 92043
PIN,11X14X12.3
920431266
€ 1.00
92043A
920431037
ref: 92043A
PIN,DOWEL,10X8.2X14
920431037
€ 0.50
92055
920551148
ref: 92055
RING-O,OD=18.5MM
920551148
€ 9.50
