CAMSHAFTS/CHAIN/TENSIONER

KZ1000R1 EDDIE LAWSON REPLICA 1982 USA CANADA

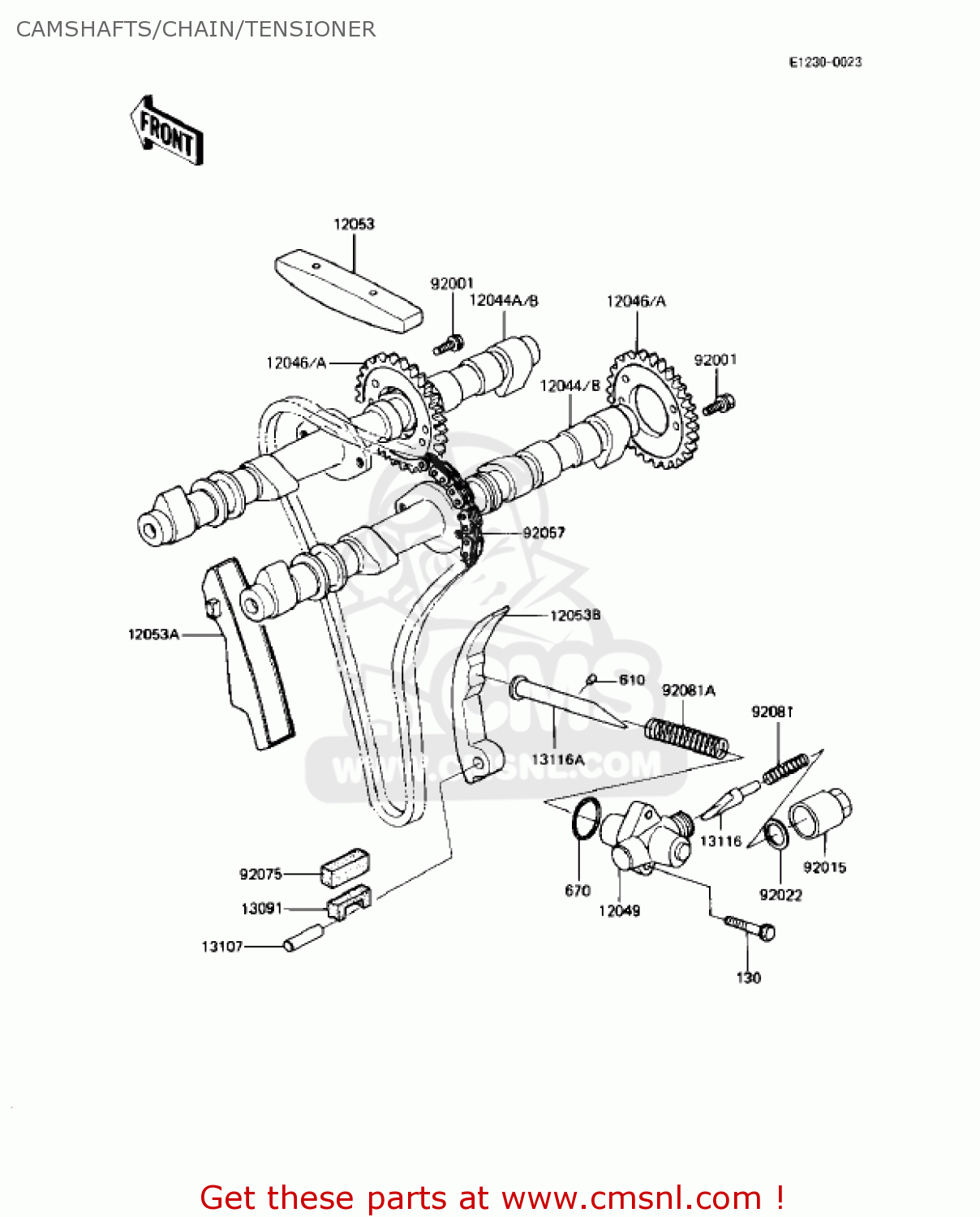

Camshafts/chain/tensioner diagram KZ1000R1 EDDIE LAWSON REPLICA 1982 USA CANADA

CAMSHAFTS/CHAIN/TENSIONER KZ1000R1 EDDIE LAWSON REPLICA 1982 USA CANADA
CAMSHAFTS/CHAIN/TENSIONER KZ1000R1 EDDIE LAWSON REPLICA 1982 USA CANADA
CAMSHAFTS/CHAIN/TENSIONER KZ1000R1 EDDIE LAWSON REPLICA 1982 USA CANADA
prices are in EUR
ref
part #
description
quantity
12044
120441031
ref: 12044
CAMSHAFT-VALVE,INLET
€ 256.00
12044A
120441036
ref: 12044A
CAMSHAFT-VALVE,EXHAUS
€ 208.00
12044B
120441037
ref: 12044B
CAMSHAFT-VALVE
€ 129.50
12046
120461025
ref: 12046
SPROCKET,CAMSHAFT,42T
120461025
€ 62.00
12046A
120461033
ref: 12046A
SPROCKET,CAMSHAFT,42T
120461033
€ 62.00
12049
120491009
ref: 12049
TENSIONER,CAM CHAIN
120491009
€ 39.00
12053
120531018
ref: 12053
GUIDE,CAM CHAIN,HEAD
120531018
€ 75.50
12053A
120531048
ref: 12053A
GUIDE-CHAIN,CAM,FR
120531048
€ 47.00
12053B
120531049
ref: 12053B
GUIDE-CHAIN,CAM,RR
120531049
€ 47.00
13091
130911084
ref: 13091
HOLDER,CAM CHAIN GUID
130911084
€ 4.00
13107
131071020
ref: 13107
SHAFT,8X28
131071020
€ 3.00
13116
131161012
ref: 13116
ROD-PUSH,TENSIONER
131161012
€ 13.00
13116A
131161038
ref: 13116A
ROD-PUSH,TENSIONER
131161038
€ 30.50
92001
92003208
ref: 92001
BOLT,SPROCKET FITTING
92003208
€ 2.50
92015
920151100
ref: 92015
NUT,CAP,18MM
920151100
€ 8.00
92022
920221175
ref: 92022
WASHER,18.3X24X1.4
920221175
€ 3.00
92057
920571052
ref: 92057
CHAIN,CAMSHAFT,152L
920571052
€ 41.00
92075
920751270
ref: 92075
DAMPER,CAM CHAIN GUID
920751270
€ 7.00
92081
920811302
ref: 92081
SPRING,TENSIONER
920811302
€ 3.50
92081A
920811380
ref: 92081A
SPRING,TENSIONER
920811380
€ 5.00
130
130G0625
ref: 130
BOLT,FLANGED,6X25
130G0625
€ 0.50
610
610A0408
ref: 610
ROLLER,4X8
610A0408
€ 2.50
670
670E2022
ref: 670
O RING,22MM
670E2022
€ 6.50
