BRAKE PEDAL/TORQUE LINK

KZ1000R1 EDDIE LAWSON REPLICA 1982 USA CANADA

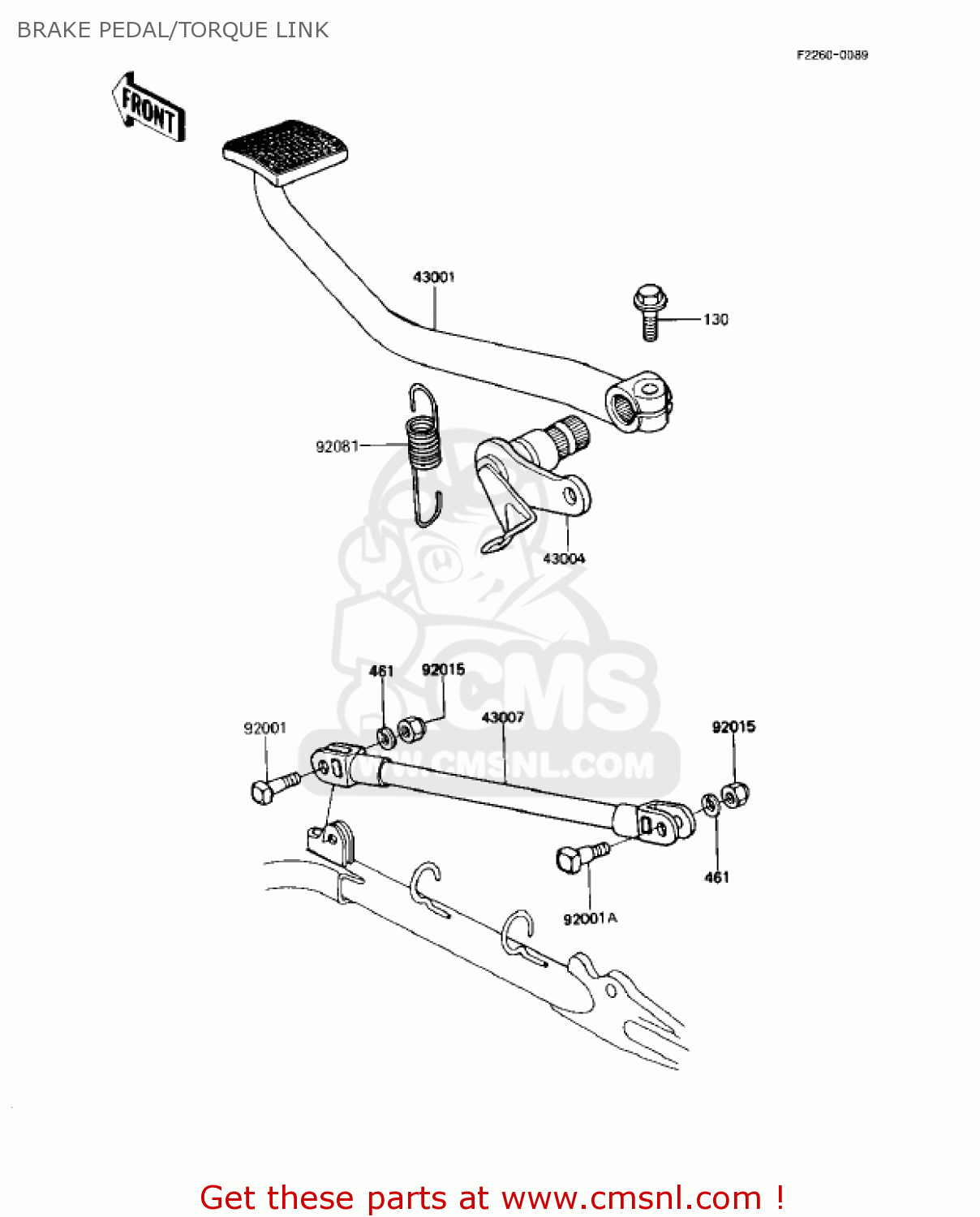

Brake pedal/torque link diagram KZ1000R1 EDDIE LAWSON REPLICA 1982 USA CANADA

prices are in EUR

ref

part #

description

quantity

43001

430011071
ref: 43001

LEVER-BRAKE,PEDAL,BLA

€ 120.00

43004

430041026
ref: 43004

SHAFT-BRAKE

€ 41.00

43007

430071015
ref: 43007

ROD-TORQUE,RR

€ 33.00

92001

920011208
ref: 92001

BOLT,TORQUE ROD,FRONT

€ 3.50

92001A

920011646
ref: 92001A

BOLT,10X37

€ 4.50

92015

920151189
ref: 92015

NUT,LOCK,10MM,BLACK

€ 4.50

92081

920811296
ref: 92081

SPRING,BRAKE PEDAL

€ 6.50

130

130J0825
ref: 130

BOLT-FLANGED,8X25,BLA

€ 2.00

461

461K1000
ref: 461

461K1000
