CARBURETOR ASSY (KZ1000-R2)

KZ1000R1 EDDIE LAWSON REPLICA 1982 USA CANADA

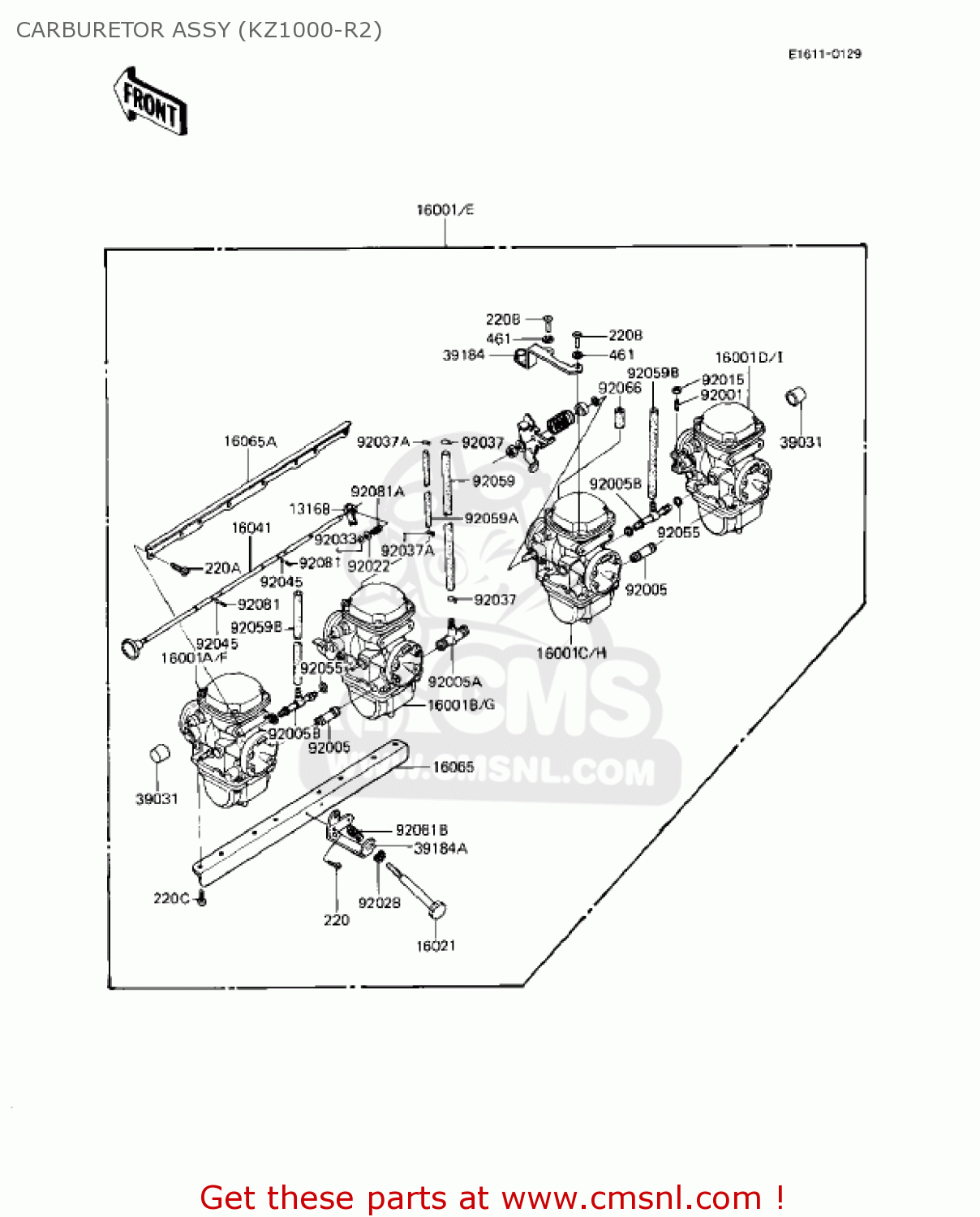

Carburetor assy (kz1000-r2) diagram KZ1000R1 EDDIE LAWSON REPLICA 1982 USA CANADA

CARBURETOR ASSY (KZ1000-R2) KZ1000R1 EDDIE LAWSON REPLICA 1982 USA CANADA
CARBURETOR ASSY (KZ1000-R2) KZ1000R1 EDDIE LAWSON REPLICA 1982 USA CANADA
CARBURETOR ASSY (KZ1000-R2) KZ1000R1 EDDIE LAWSON REPLICA 1982 USA CANADA
prices are in EUR
ref
part #
description
quantity
13168
131681091
ref: 13168
LEVER,CHOKE
131681091
€ 6.00
16001
160011890
ref: 16001
US
CARBURETOR
€ 990.50
16001A
160011891
ref: 16001A
US
CARBURETOR,OUTSIDE,LH
€ 326.50
16001B
160011892
ref: 16001B
CARBURETOR,INSIDE,LH
€ 326.50
16001C
160011893
ref: 16001C
US
CARBURETOR,INSIDE,RH
€ 266.50
16001D
160011894
ref: 16001D
US
CARBURETOR,OUTSIDE,RH
€ 326.50
16001E
160011895
ref: 16001E
CN
CARBURETOR
€ 1,765.50
16001F
160011896
ref: 16001F
CN
CARBURETOR,LH,OUTSIDE
€ 680.50
16001G
160011897
ref: 16001G
CN
CARBURETOR,LH,INSIDE
€ 373.50
16001H
160011898
ref: 16001H
CN
CARBURETOR,RH,INSIDE
€ 373.50
16001I
160011899
ref: 16001I
CN
CARBURETOR,RH,OUTSIDE
€ 373.50
16021
160211035
ref: 16021
SCREW-THROTTLE STOP
€ 16.50
16041
160411024
ref: 16041
SHAFT-CARBURETOR,CHOK
160411024
€ 35.00
16065
160651043
ref: 16065
HOLDER-CARBURETOR,LWR
€ 62.00
16065A
160651044
ref: 16065A
HOLDER-CARBURETOR,UPP
€ 41.00
39031
390311007
ref: 39031
CAP-END,CARBURETOR
390311007
€ 7.50
39184
391841006
ref: 39184
BRACKET-ASSY,THROTTLE
391841006
€ 23.00
39184A
391841007
ref: 39184A
BRACKET-ASSY,IDLING A
€ 20.00
92001
920011447
ref: 92001
BOLT,ADJUSTING
920011447
€ 6.50
92005
920051035
ref: 92005
FITTING,FUEL,I-TYPE
€ 35.00
92005A
920051036
ref: 92005A
FITTING,FUEL,T-TYPE
920051036
€ 48.50
92005B
920051045
ref: 92005B
FITTING,AIR VENT
€ 24.00
92015
920151119
ref: 92015
NUT,THROTTLE VALVE AD
920151119
€ 3.50
92022
920221255
ref: 92022
WASHER,SPRING
920221255
€ 3.50
92028
920281071
ref: 92028
BUSHING,IDLING ADJUST
€ 4.50
92033
920331066
ref: 92033
RING-SNAP,E-TYPE
920331066
€ 3.50
92037
920371184
ref: 92037
CLAMP,HOSE
€ 1.00
92037A
92037174
ref: 92037A
CLAMP,BREATHER HOSE
€ 1.50
92045
600A0400
ref: 92045
BALL-STEEL,1/8
600A0400
€ 2.00
92055
92055510
ref: 92055
RING-O
92055510
€ 7.50
92059
920591187
ref: 92059
TUBE,7.5X12.5X250
920591187
€ 30.50
92059A
920591188
ref: 92059A
TUBE,5X9X150
920591188
€ 11.00
92059B
920591222
ref: 92059B
TUBE,6.5X9.5X400
920591222
€ 13.00
92066
92068006
ref: 92066
US
RUBBER PLUG
92068006
€ 2.50
92066
92068006
ref: 92066
US
RUBBER PLUG
92068006
€ 2.50
92081
920811260
ref: 92081
SPRING,FAST IDLE SHFT
920811260
€ 3.50
92081A
920811364
ref: 92081A
SPRING,CHOCK SHAFT
920811364
€ 3.50
92081B
920811377
ref: 92081B
SPRING,IDLING ADJUST
920811377
€ 3.00
220
220B0508
ref: 220
SCREW-PAN-CROS,5X8
220B0508
€ 0.50
220A
220C0510
ref: 220A
SCREW-PAN-CROS
220C0510
€ 2.50
220B
220C0518A
ref: 220B
SCREW-PAN-CROS,5X18,B
€ 2.00
220C
220C0614
ref: 220C
SCREW-PAN-CROS,6X14,B
220C0614
€ 1.50
461
461K0500
ref: 461
WASHER-SPRING,5MM,BLA
461K0500
€ 0.50
