GEAR CHANGE MECHANISM

KZ1000R1 EDDIE LAWSON REPLICA 1982 USA CANADA

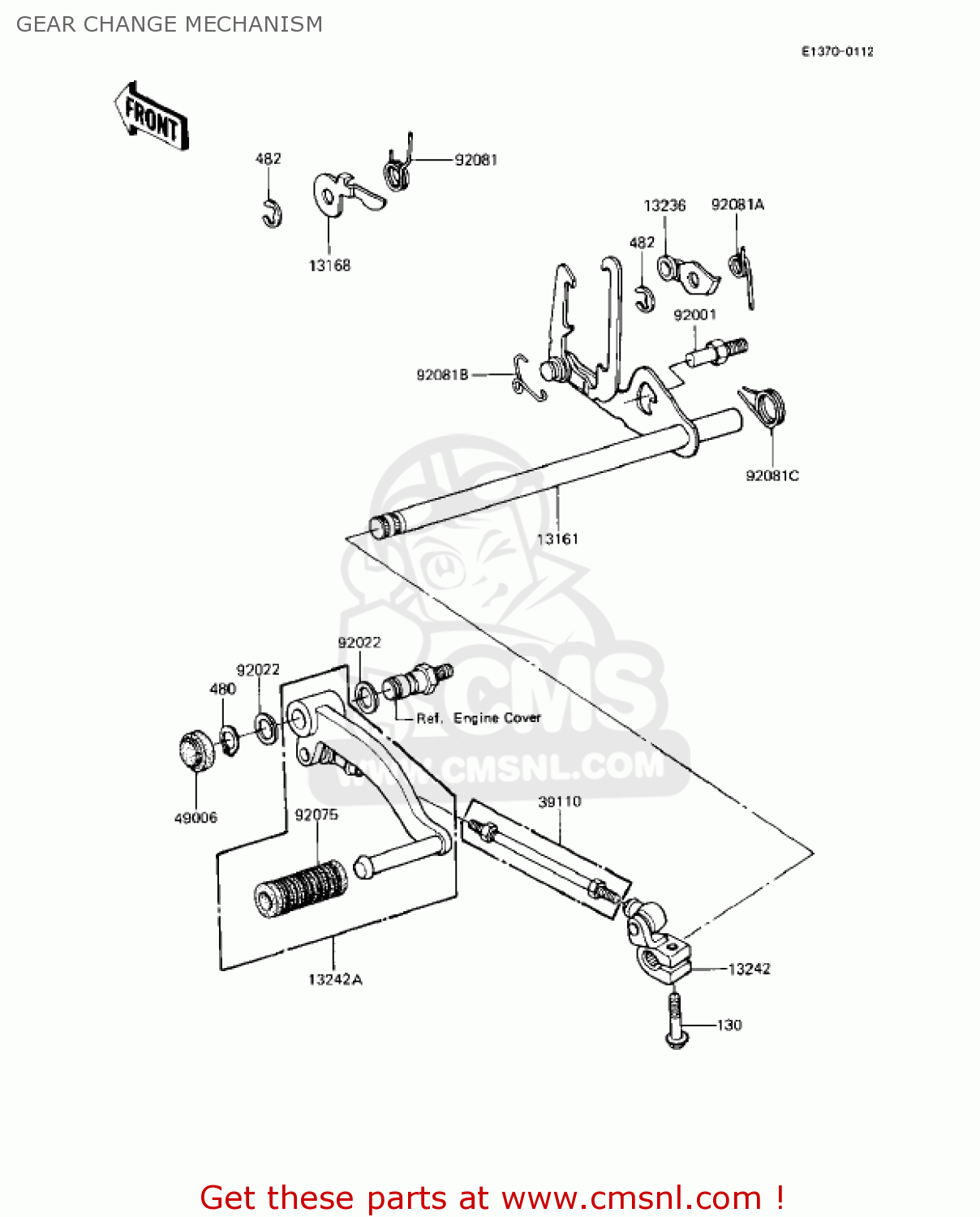

Gear change mechanism diagram KZ1000R1 EDDIE LAWSON REPLICA 1982 USA CANADA

prices are in EUR

ref

part #

description

quantity

13161

131611023
ref: 13161

LEVER-COMP-CHANGE SHA

€ 65.00

13168

131681074
ref: 13168

LEVER,GEAR POSITIONIN

€ 5.50

13236

132361029
ref: 13236

LEVER-COMP,NEUTRAL PO

€ 8.00

13242

132421048
ref: 13242

LEVER-ASSY-CHANGE,ROD

€ 32.50

13242A

132421049
ref: 13242A

LEVER-ASSY-CHANGE,PED

€ 50.50

39110

391101008
ref: 39110

ROD-ASSY-TIE,L=90,BLA

€ 7.50

49006

490061061
ref: 49006

BOOT,CHANGE LEVER

€ 6.00

92001

920011401
ref: 92001

BOLT,RETURN SPRING

€ 3.00

92022

92022072
ref: 92022

WASHER,12.5X22X1.2

€ 2.50

92075

13157004
ref: 92075

RUBBER-CHANGE PEDAL

€ 4.00

92081

920811284
ref: 92081

SPRING,PSTNNG LEVER

€ 3.50

92081A

920811285
ref: 92081A

SPRING,NEUTRAL POSITI

€ 3.50

92081B

92083018
ref: 92081B

SPRING-KICK PAWL

€ 6.00

92081C

92083028
ref: 92081C

SPRING,CHG PEDL RTRN

€ 9.50

130

130S0620
ref: 130

BOLT-FLANGED,6X20,BLA

€ 2.50

480

480J1200
ref: 480

CIRCLIP-TYPE-C,12MM

€ 0.50

482

482J6000
ref: 482

CIRCLIP-TYPE-E,6MM

€ 0.50
