CRANKCASE BOLT & STUD PATTERN

KZ1000R1 EDDIE LAWSON REPLICA 1982 USA CANADA

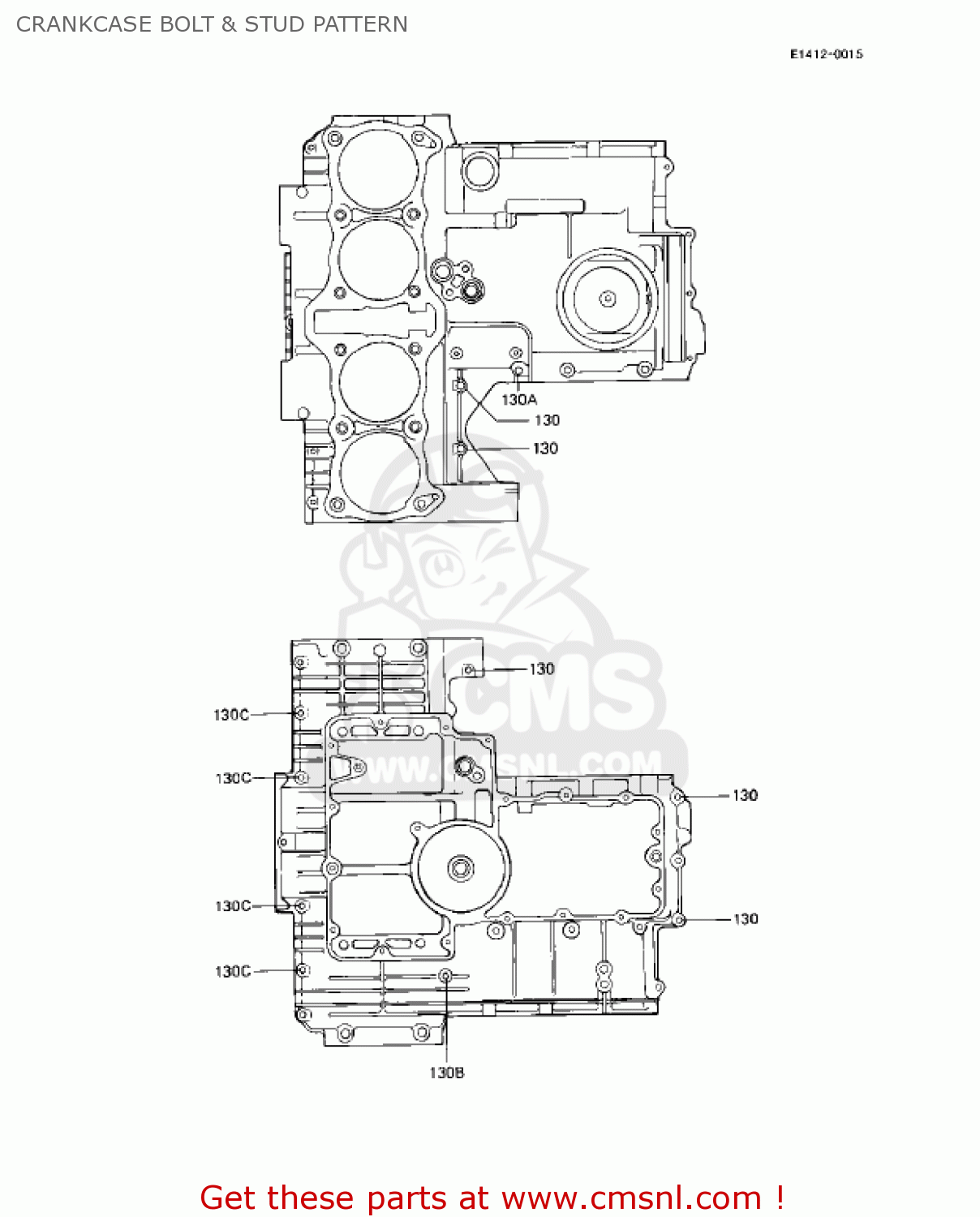

Crankcase bolt & stud pattern diagram KZ1000R1 EDDIE LAWSON REPLICA 1982 USA CANADA

CRANKCASE BOLT & STUD PATTERN KZ1000R1 EDDIE LAWSON REPLICA 1982 USA CANADA

CRANKCASE BOLT & STUD PATTERN KZ1000R1 EDDIE LAWSON REPLICA 1982 USA CANADA

prices are in EUR

ref

part #

description

quantity

130

130G0640
ref: 130

BOLT,FLANGED,6X40

€ 0.50

130A

130G0650
ref: 130A

BOLT-FLANGED,6X50

€ 1.00

130B

130G0695
ref: 130B

BOLT-FLANGED,6X95

€ 3.50

130C

130J0640
ref: 130C

BOLT-FLANGED,6X40,BLA

€ 3.00
