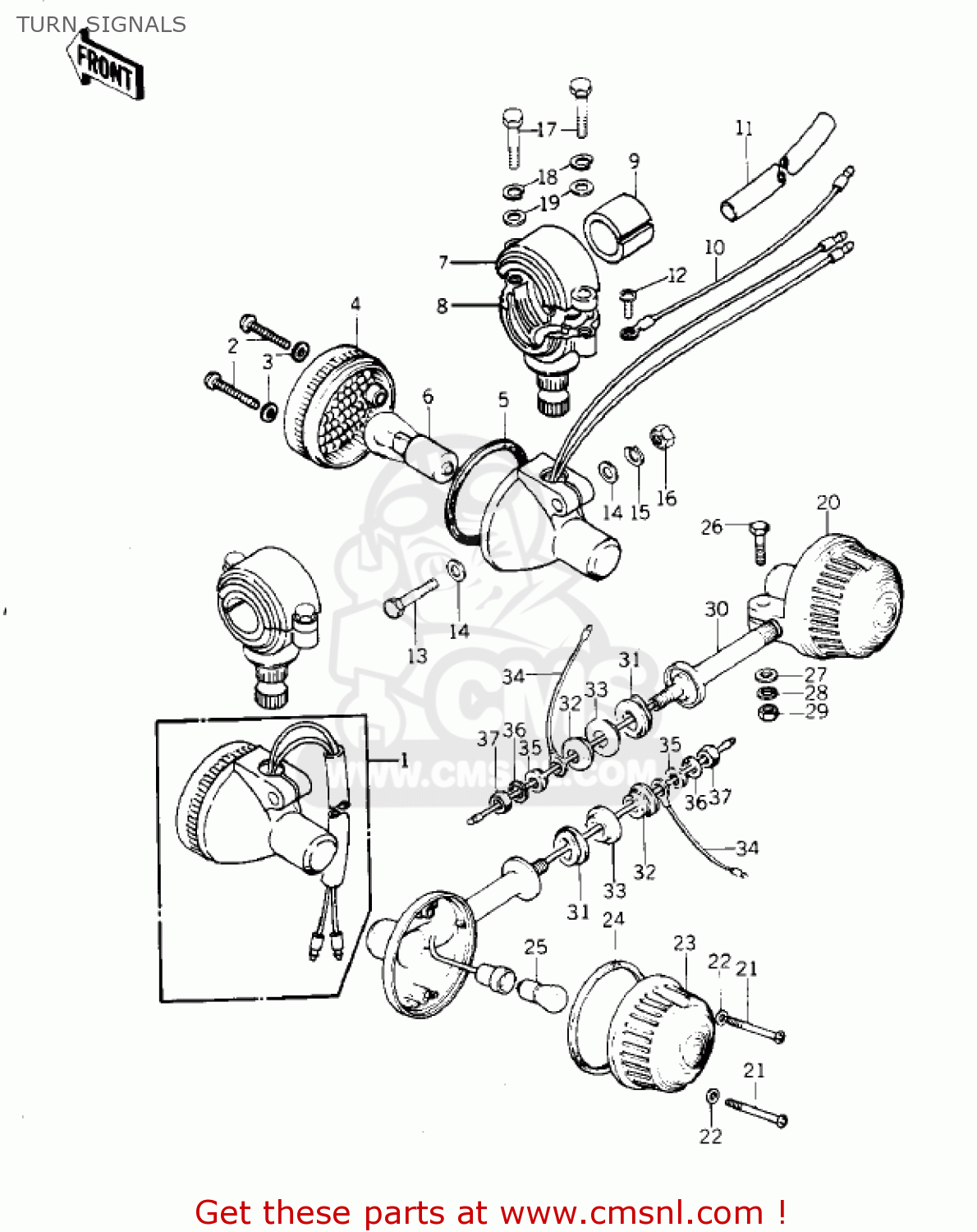

TURN SIGNALS

ref

part #

description

quantity

1

230401004
ref: 1

LAMP-SIGNAL

€ 64.00

2

220E0420A
ref: 2

SCREW-PAN HEAD,4X20

€ 2.50

3

23058002
ref: 3

WASHER,PLAIN,4MM

€ 2.00

4

230481001
ref: 4

LENS-SIGNAL LAMP,045-

€ 10.50

5

23050003
ref: 5

GASKET,SIGNAL LAMP (NAS)

€ 3.50

6

92069060
ref: 6

BULB.12V 23/8W

€ 5.00

7

230511013
ref: 7

BRACKET-SIGNAL LAMP,F

€ 11.50

8

230511004
ref: 8

BRACKET-SIGNAL LAMP,F

€ 23.00

9

23066003
ref: 9

DAMPER

€ 3.50

10

26011061
ref: 10

WIRE-LEAD,SIGNAL LAMP

€ 2.50

11

26009004
ref: 11

COVER-WIRING HARNESS

€ 1.00

12

220B0305A
ref: 12

SCREW-PAN HEAD,3X5

€ 1.00

13

112G0630
ref: 13

BOLT-UPSET

€ 1.00

14

411B0600
ref: 14

WASHER-PLAIN,6MM

€ 0.50

15

461F0600
ref: 15

WASHER-SPRING,6MM

€ 0.50

16

311B0600
ref: 16

NUT,6MM

€ 0.50

17

110N0516
ref: 17

BOLT,5X16

€ 2.00

18

461F0500
ref: 18

WASHER-SPRING,5MM

€ 0.50

19

410D0500
ref: 19

WASHER-PLAIN,5MM

€ 1.50

20

23040029
ref: 20

LAMP-SIGNAL

€ 90.00

21

220E0435A
ref: 21

SCREW-PAN HEAD,4X35

€ 4.50

22

23058002
ref: 22

WASHER,PLAIN,4MM

€ 2.00

23

230481024
ref: 23

LENS-SIGNAL LAMP,6.14

€ 12.50

24

23050002
ref: 24

GASKET,TURN SIGNAL LA (NAS)

€ 3.00

25

92069055
ref: 25

BULB 12V 32CP

€ 4.50

26

112G0630
ref: 26

BOLT-UPSET

€ 1.00

27

411B0600
ref: 27

WASHER-PLAIN,6MM

€ 0.50

28

461F0600
ref: 28

WASHER-SPRING,6MM

€ 0.50

29

311B0600
ref: 29

NUT,6MM

€ 0.50

30

230511006
ref: 30

BRACKET,TURN SIGNAL

€ 34.00

31

92075128
ref: 31

DAMPER,LAMP

€ 3.50

32

92027147
ref: 32

COLLAR

€ 9.00

33

92075158
ref: 33

DAMPER

€ 3.50

34

26011063
ref: 34

WIRE-LEAD,L=185

€ 5.00

35

92022239
ref: 35

WASHER-PLAIN

€ 2.50

36

92022239
ref: 36

WASHER-PLAIN

€ 2.50

37

315B1000
ref: 37

NUT,10MM

€ 0.50
