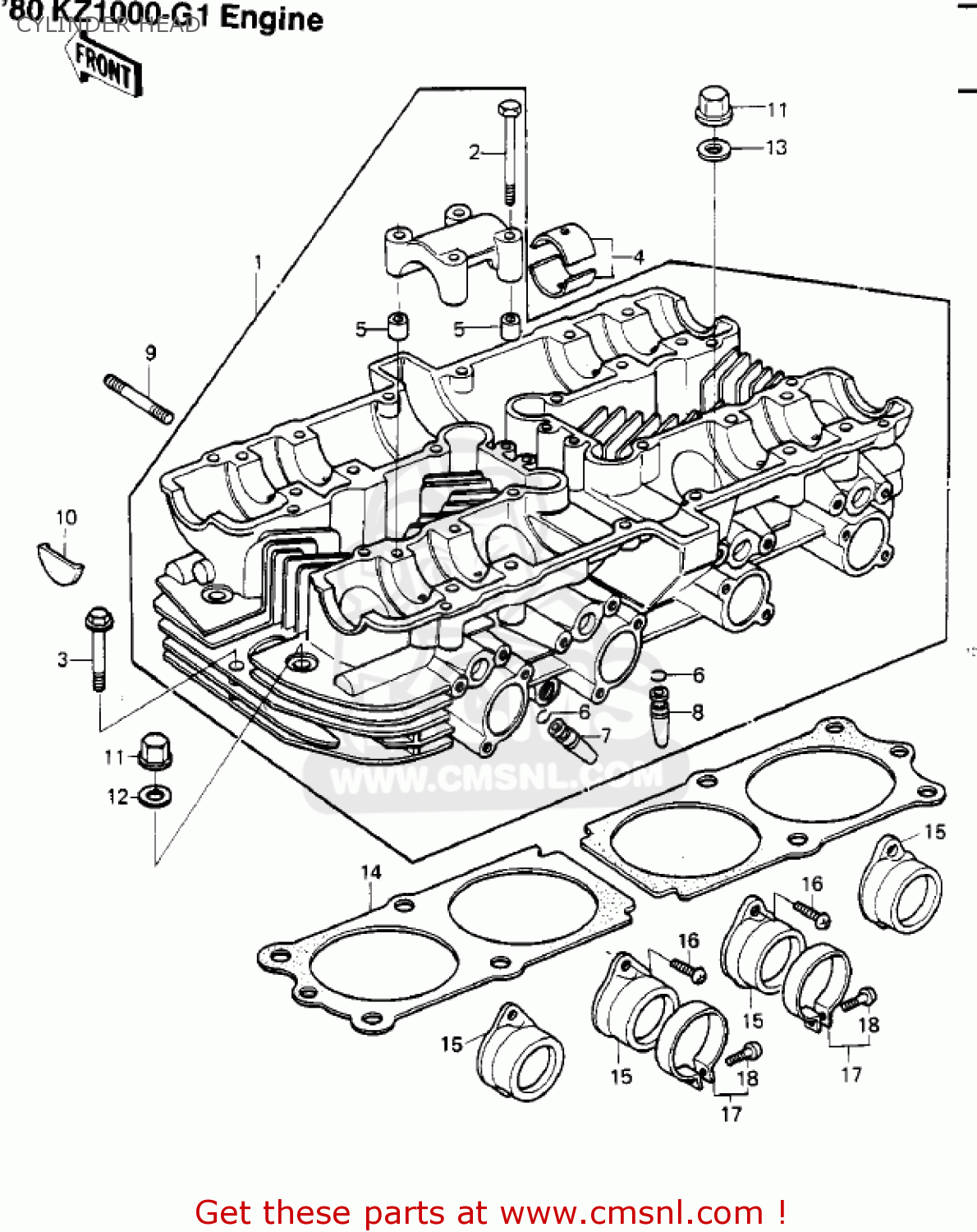

CYLINDER HEAD

ref

part #

description

quantity

1

110021044
ref: 1

CYLINDER HEAD ASSEMBLY

€ 1,034.00

2

920021881
ref: 2

BOLT, 6X43

€ 4.50

3

92003092
ref: 3

BOLT-HEX HEAD,6X45

€ 4.50

4

13034030
ref: 4

BUSHING,CAMSHAFT

€ 15.00

5

92042007
ref: 5

PIN-DOWEL

€ 4.00

6

92036023
ref: 6

CIRCLIP,VALVE GUIDE

€ 0.50

7

12013009
ref: 7

GUIDE-VALVE,INTAKE

€ 18.00

8

490021002
ref: 8

GUIDE,EXHAUST VALVE

€ 16.00

9

920041069
ref: 9

STUD,8X30

€ 4.50

10

92066017
ref: 10

PLUG,CAMSHAFT,14X7

€ 15.00

11

92015076
ref: 11

NUT,FLANGED CAP,10MM

€ 9.00

12

92022215
ref: 12

WASHER,10.5X22X1.6

€ 6.00

13

411B1000
ref: 13

WASHER-PLAIN,10MM

€ 0.50

14

11004076
ref: 14

GASKET, CYLINDER HEAD (MCA)

€ 58.50

15

160651031
ref: 15

HOLDER-CARBURETOR

€ 37.50

16

220B0618
ref: 16

SCREW-PAN HEAD,6X18

€ 2.50

17

92037077
ref: 17

CLAMP,HOLDER

€ 7.00

18

92011037
ref: 18

SCREW,PAN HEAD 5X25

€ 2.50
