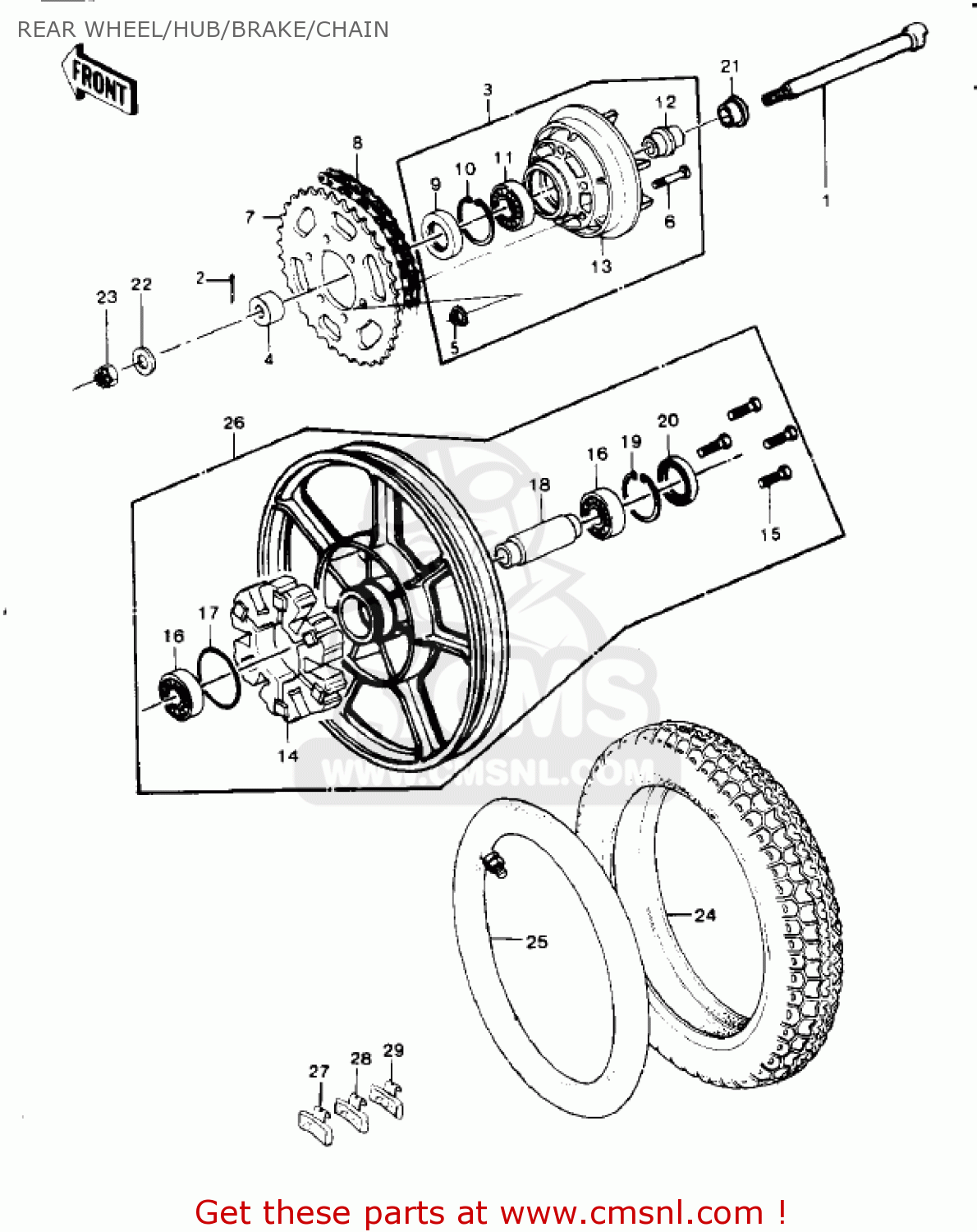

REAR WHEEL/HUB/BRAKE/CHAIN

ref

part #

description

quantity

1

42031034
ref: 1

AXLE,RR

€ 87.50

2

550D4035
ref: 2

PIN-COTTER,4.0X35

€ 1.00

3

42008040
ref: 3

COUPLING ASSY,REAR BK

€ 162.50

4

42032071
ref: 4

COLLAR, REAR AXLE

€ 8.00

5

920151415
ref: 5

NUT,10MM

€ 3.00

6

920014009
ref: 6

BOLT,10X49

€ 2.50

7

420411010
ref: 7

REAR SPROCKET,33T

€ 51.00

8

92057107
ref: 8
EK630

CHAIN ASSY, DRIVE

€ 168.00

9

92050027
ref: 9

OIL SEAL

€ 13.50

10

920331044
ref: 10

CIRCLIP 62 M/M

€ 7.50

11

601B6206
ref: 11

BEARING-BALL,#6206C3

€ 19.50

12

42036033
ref: 12

SLEEVE,REAR COUPLING

€ 25.50

14

42014033
ref: 14

DAMPER,RR HUB SHOCK,1

€ 85.50

15

920011173
ref: 15

BOLT,HEX HEAD,10X30

€ 6.00

16

601B6304ZZ
ref: 16

BEARING-BALL,#6304ZZC

€ 36.00

17

671B2565
ref: 17

O RING,65MM

€ 6.00

18

42010040
ref: 18

REAR HUB BEARING COLLAR

€ 41.00

19

920331043
ref: 19

RING,SNAP,56.2M/M

€ 6.00

20

92052006
ref: 20

OIL SEAL WTC35527

€ 6.50

21

920271177
ref: 21

REAR AXLE COLLAR

€ 15.00

22

92022248
ref: 22

WASHER,20.3X34X4.5

€ 7.50

23

42045018
ref: 23

NUT,18MM

€ 7.50

24

41021072
ref: 24
MT90-16T EAGLE A/T

TIRE,510-16 MT90 R

€ 320.00

25

K410221651
ref: 25

TUBE,510-16

€ 0.00

26

410731085
ref: 26

SOLID WHEEL ASSEMBLY,REAR

€ 297.50

27

410751011
ref: 27

BALANCER WHEEL 10G

€ 7.50

28

410751012
ref: 28

BALANCER WHEEL 20G

€ 7.50

29

410751013
ref: 29

BALANCER WHEEL 30G

€ 7.50
