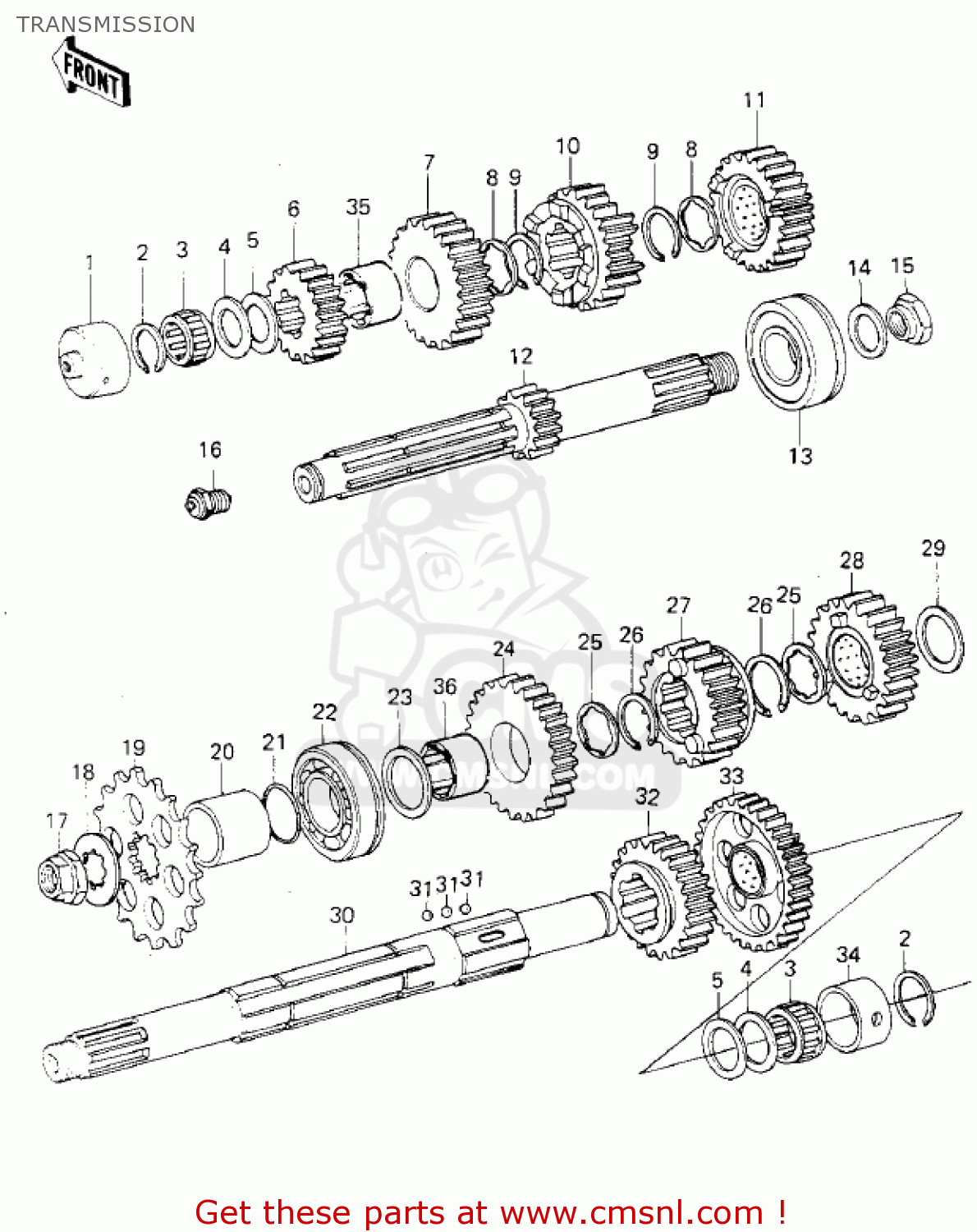

TRANSMISSION

ref

part #

description

quantity

1

92028122
ref: 1

BUSHING,INPUT SHAFT

€ 54.50

2

92033025
ref: 2

CIRCLIP,25MM

€ 3.00

3

92046031
ref: 3

BEARING-NEEDLE,FWF-22

€ 19.50

4

92022212
ref: 4

WASHER-PLAIN,22MM

€ 6.50

4

92022213
ref: 4

WASHER,22.3X35X1.2

€ 7.00

5

920261020
ref: 5

SPACER,22X35.5X1.0

€ 3.50

6

13130032
ref: 6

2ND GEAR-DRIVE SHAFT

€ 114.50

7

13136042
ref: 7

TOP GEAR-DRIVE SHAFT

€ 116.50

8

920221077
ref: 8

WASHER,LOCK (O.D=35O)

€ 7.50

9

480J2800
ref: 9

CIRCLIP-TYPE-C,28MM

€ 3.50

10

13132030
ref: 10

3RD GEAR-DRIVE SHAFT

€ 158.50

11

13134016
ref: 11

GEAR INPUT 4TH,21T

€ 156.00

12

13127042
ref: 12

SHAFT,DRIVE 12T

€ 251.00

13

920451028
ref: 13

BEARING-BALL,5305NSH2

€ 135.00

14

92125002
ref: 14

WASHER,SPRING,20MM

€ 8.50

15

920151555
ref: 15

NUT,20MM

€ 9.00

16

131515003
ref: 16

SWITCH-COMP

€ 20.00

17

920151254
ref: 17

NUT,20MM

€ 10.50

18

922001065
ref: 18

WASHER

€ 4.50

19

13144062
ref: 19

SPROCKET-OUTPUT,15T

€ 33.00

20

92027288
ref: 20

COLLAR,25X32X23.5

€ 22.50

21

92055035
ref: 21

O RING

€ 3.00

22

92045021
ref: 22

BEARING-BALL,BL305NC3

€ 184.00

23

92022210
ref: 23

WASHER-PLAIN,25MM

€ 4.50

24

13131038
ref: 24

GEAR,OUTPUT 2ND,35T

€ 146.50

25

920221078
ref: 25

WASHER,LOCK (O.D=40)

€ 3.00

26

480J3000
ref: 26

CIRCLIP-TYPE-C,30MM

€ 3.50

27

131291214
ref: 27

GEAR,OUTPUT TOP,28T

€ 317.50

28

13133031
ref: 28

GEAR,OUTPUT 3RD,35T

€ 169.50

29

92022209
ref: 29

WASHER-PLAIN,30MM

€ 6.50

30

131281013
ref: 30

SHAFT,OUTPUT

€ 307.00

31

600A0600
ref: 31

BALL-STEEL,3/16

€ 0.50

32

13135020
ref: 32

4TH GEAR-OUTPUT SHAFT

€ 102.50

33

13129046
ref: 33

LOW GEAR-OUTPUT SHAFT

€ 133.00

34

92028123
ref: 34

BUSHING,OUTPUT SHAFT

€ 36.50

35

920281124
ref: 35

BUSHING,TOP GEAR

€ 31.00

36

920281005
ref: 36

BUSHING, ZND GEAR

€ 22.50

all assemblies
