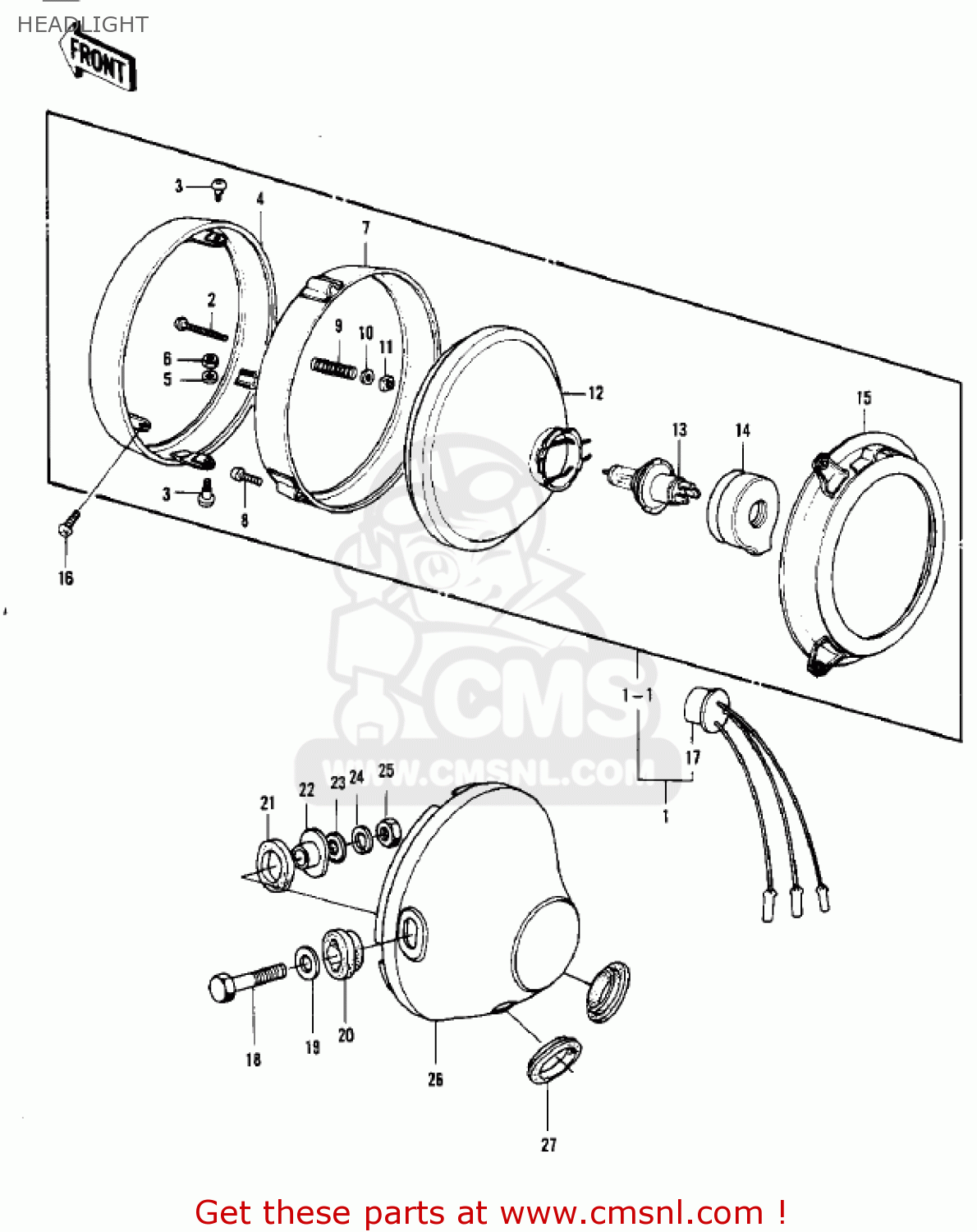

HEADLIGHT

ref

part #

description

quantity

1

230041035
ref: 1
INCL. REF. 17

HEADLAMP

€ 0.00

1-1

230041040
ref: 1-1
ORDER REF. 17 SEPARA

HEADLAMP

€ 331.50

2

23019021
ref: 2

SCREW-FORCUS ADJUST

€ 3.00

3

23019023
ref: 3

SCREW-PAN HEAD,5X12

€ 3.50

4

23006038
ref: 4

RIM-LAMP

€ 56.50

5

23021012
ref: 5

WASHER

€ 3.00

6

23020023
ref: 6

NUT,5MM

€ 3.00

7

23072001
ref: 7

RETAINER,HEAD LAMP

€ 26.00

8

220B0312
ref: 8

SCREW-PAN CROS,3X12

€ 2.00

9

23014005
ref: 9

SPRING-FOCUS ADJUST

€ 2.50

10

23021004
ref: 10

WASHER,4.1X8X0.8

€ 2.00

11

23020018
ref: 11

NUT,4MM,FOCUS ADJUST

€ 3.00

12

230071009
ref: 12

LENS UNIT, HEAD LAMP

€ 127.00

13

920691002
ref: 13
PHILIPS (H4 12342)

BULB,12V-60155W

€ 15.00

14

490161016
ref: 14

COVER-SEAL

€ 16.00

15

23074001
ref: 15

HOLDER,HEAD LAMP

€ 28.00

16

23019022
ref: 16

SCREW-SPECIAL,5X14

€ 1.50

17

23008037
ref: 17

SOCKET-ASSY,HEAD LAMP

€ 12.50

18

92007024
ref: 18

BOLT,10MM

€ 4.50

19

411D1000
ref: 19

WASHER-PLAIN,10MM

€ 3.00

20

23066022
ref: 20

DAMPER

€ 6.00

21

23066021
ref: 21

DAMPER

€ 6.00

22

23052010
ref: 22

COLLAR

€ 28.50

23

410B1000
ref: 23

WASHER-PLAIN-SMALL,10

€ 0.50

24

461F1000
ref: 24

WASHER-SPRING,10MM

€ 0.50

25

315B1000
ref: 25

NUT,10MM

€ 0.50

26

230051016
ref: 26
1 WIRING HOLE

BODY-COMP-HEAD LAMP,C

€ 136.50

26

230051016
ref: 26
2 WIRING HOLES

BODY-COMP-HEAD LAMP,C

€ 136.50

27

920711008
ref: 27
FOR 23005-1012

GROMMET

€ 4.00

27

920711008
ref: 27
FOR 23005-1016

GROMMET

€ 4.00

all assemblies
