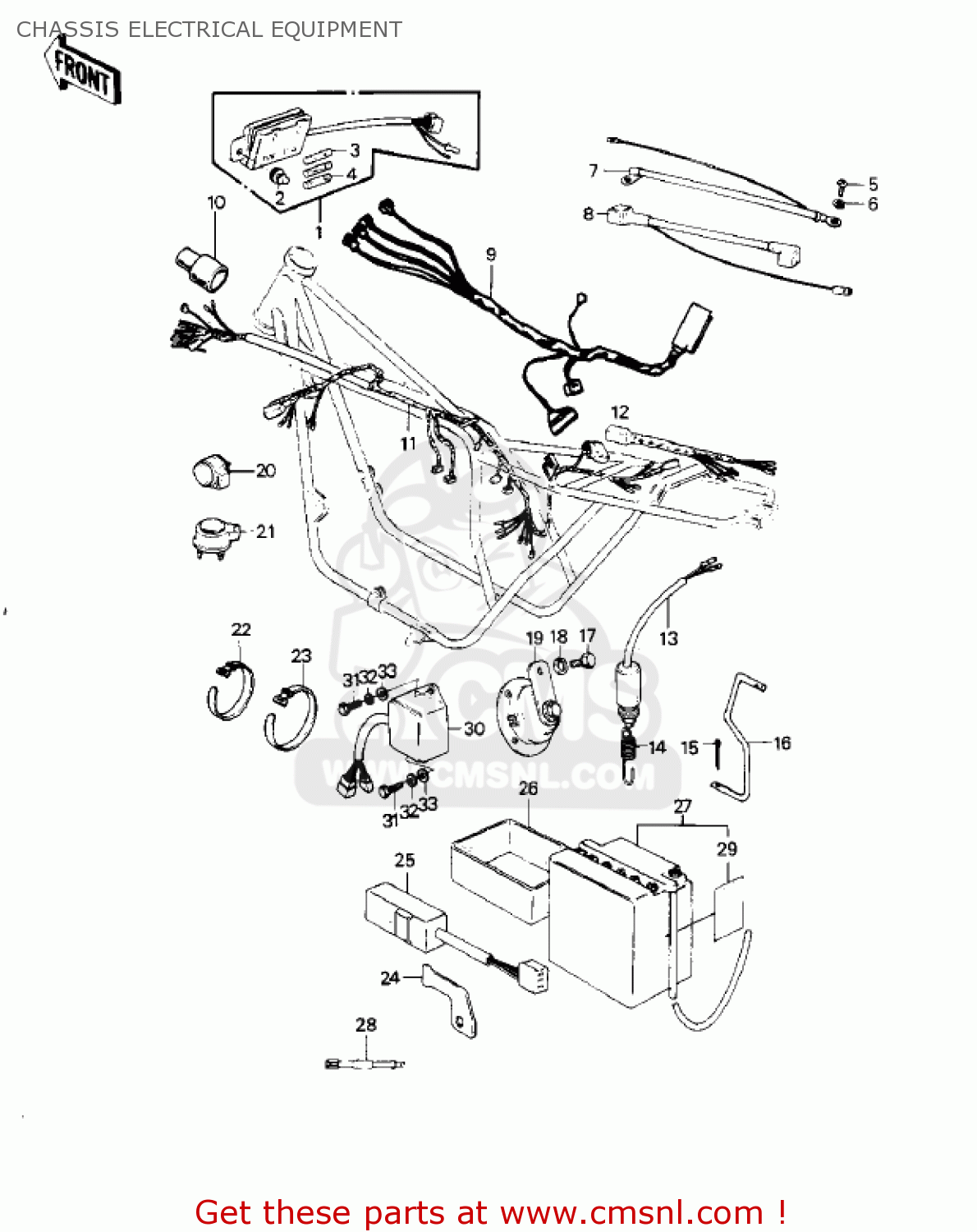

CHASSIS ELECTRICAL EQUIPMENT

ref

part #

description

quantity

1

260041006
ref: 1

FUSE-ASSY

€ 57.00

2

92075279
ref: 2

DAMPER,FUSE

€ 3.50

3

26006005
ref: 3

FUSE 20A

€ 3.50

4

26006003
ref: 4

FUSE 10A

€ 3.00

5

92001137
ref: 5

BOLT,HEX HEAD,6M/M

€ 4.00

6

461F0600
ref: 6

WASHER-SPRING,6MM

€ 0.50

7

26010054
ref: 7

WIRE-LEAD,BATTERY GRO

€ 17.00

8

260111071
ref: 8

WIRE,LEAD

€ 16.50

9

260011142
ref: 9

WIRING HARNESS,SUB

€ 171.50

10

26009003
ref: 10

COVER-WIRING HARNESS

€ 2.00

11

260011141
ref: 11

WIRING HARNESS,MAIN

€ 166.00

12

26002031
ref: 12

HARNESS,RR

€ 36.50

13

27010017
ref: 13

SWITCH,BRAKE LAMP

€ 23.50

14

27011009
ref: 14

SPRING-BRAKE LAMP SW

€ 4.50

15

550D1610
ref: 15

PIN-COTTER,1.6X10

€ 2.00

16

27012010
ref: 16

HOOK,BRAKE LAMP SWITC

€ 9.00

17

115G0816
ref: 17

BOLT-HEX,HEAD 8X16

€ 0.50

18

461F0800
ref: 18

WASHER-SPRING,8MM

€ 0.50

19

270031006
ref: 19

HORN

€ 99.00

20

27002011
ref: 20

RELAY-ASSY,TURN SIGNA

€ 69.50

21

27002016
ref: 21

RELAY-ASSY,HAZARD

€ 26.50

22

92072030
ref: 22

BAND,SHORT

€ 3.00

23

92072056
ref: 23

BAND,RUBBER

€ 3.00

24

32060014
ref: 24

BRACKET,OUTAGE SWITCH

€ 7.50

25

28019001
ref: 25

SWITCH,OUTAGE INDICTR

€ 46.00

26

32099015
ref: 26

CASE,BATTERY

€ 9.00

27

260121008
ref: 27
YB-14

BATTERY,12V13AH W/LAB

€ 101.50

28

21066026
ref: 28

REGULATOR-VOLTAGE

€ 13.00

29

560401036
ref: 29

WARNING, BATTERY

€ 2.00

30

270101024
ref: 30

SWITCH,RESERV LIGHTIN

€ 149.00

31

220B0620
ref: 31

SCREW-PAN HEAD,6X20

€ 2.50

32

410B0600
ref: 32

WASHER-PLAIN-SMALL,6M

€ 0.50

33

461F0600
ref: 33

WASHER-SPRING,6MM

€ 0.50
