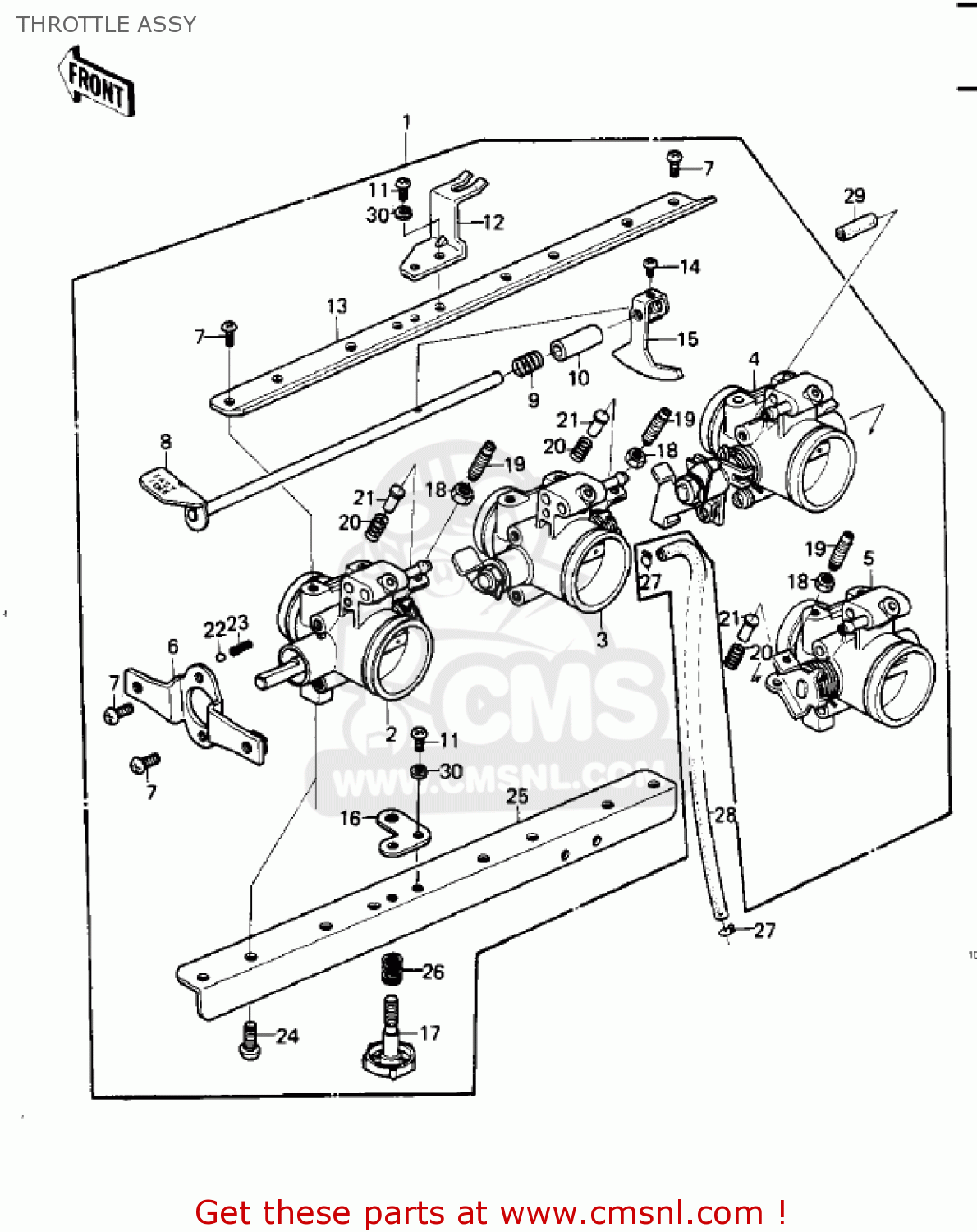

THROTTLE ASSY

ref

part #

description

quantity

1

161631001
ref: 1

THROTTLE ASSY

€ 311.00

2

161631002
ref: 2

THROTTLE,L.H,OUTSIDE

€ 62.50

3

161631003
ref: 3

THROTTLE,L.H,INSIDE

€ 62.50

4

161631004
ref: 4

THROTTLE,R.H,INSIDE

€ 60.00

5

161631005
ref: 5

THROTTLE,R.H,OUTSIDE

€ 62.50

6

110341811
ref: 6

BRACKET,THROTTLE SWIT

€ 12.50

7

220B0510
ref: 7

SCREW-PAN-CROS,5X10

€ 0.50

8

132341003
ref: 8

SHAFT ASSY,FAST IDLE

€ 14.00

9

16022010
ref: 9

SPRING,THROTTLE ADJST

€ 4.50

10

320321433
ref: 10

PIPE

€ 1.00

11

220B0508
ref: 11

SCREW-PAN-CROS,5X8

€ 0.50

12

110341812
ref: 12

BRACKET,THROTTLE CABL

€ 12.50

13

131691280
ref: 13

PLATE,STAY,UPPER

€ 13.50

14

16046007
ref: 14

SCREW,PAN HEAD,5X7

€ 6.50

15

131681067
ref: 15

LEVER,FAST IDLE

€ 13.00

16

110341813
ref: 16

BRACKET,IDLING ADJUST

€ 8.50

17

920011331
ref: 17

BOLT,IDLING ADJUST

€ 12.50

18

920151119
ref: 18

NUT,THROTTLE VALVE AD

€ 3.50

19

920011332
ref: 19

BOLT,THROTTLE VLV AJT

€ 2.00

20

920811259
ref: 20

SPRING,THROTTLE VLV

€ 3.00

21

920431079
ref: 21

PIN,THROTTLE VALVE AD

€ 3.50

22

600A0400
ref: 22

BALL-STEEL,1/8

€ 2.00

23

920811260
ref: 23

SPRING,FAST IDLE SHFT

€ 3.50

24

220B0614
ref: 24

SCREW-PAN HEAD,6X14

€ 2.00

25

131691279
ref: 25

PLATE,STAY,LOWER

€ 17.50

26

920811261
ref: 26

SPRING,IDLING ADJUST

€ 1.00

27

92037072
ref: 27

CLAMP,TUBE

€ 4.00

28

920591043
ref: 28

TUBE,TUBE 4X9X290

€ 7.00

29

92068006
ref: 29

RUBBER PLUG

€ 2.50

30

461F0500
ref: 30

WASHER-SPRING,5MM

€ 0.50
