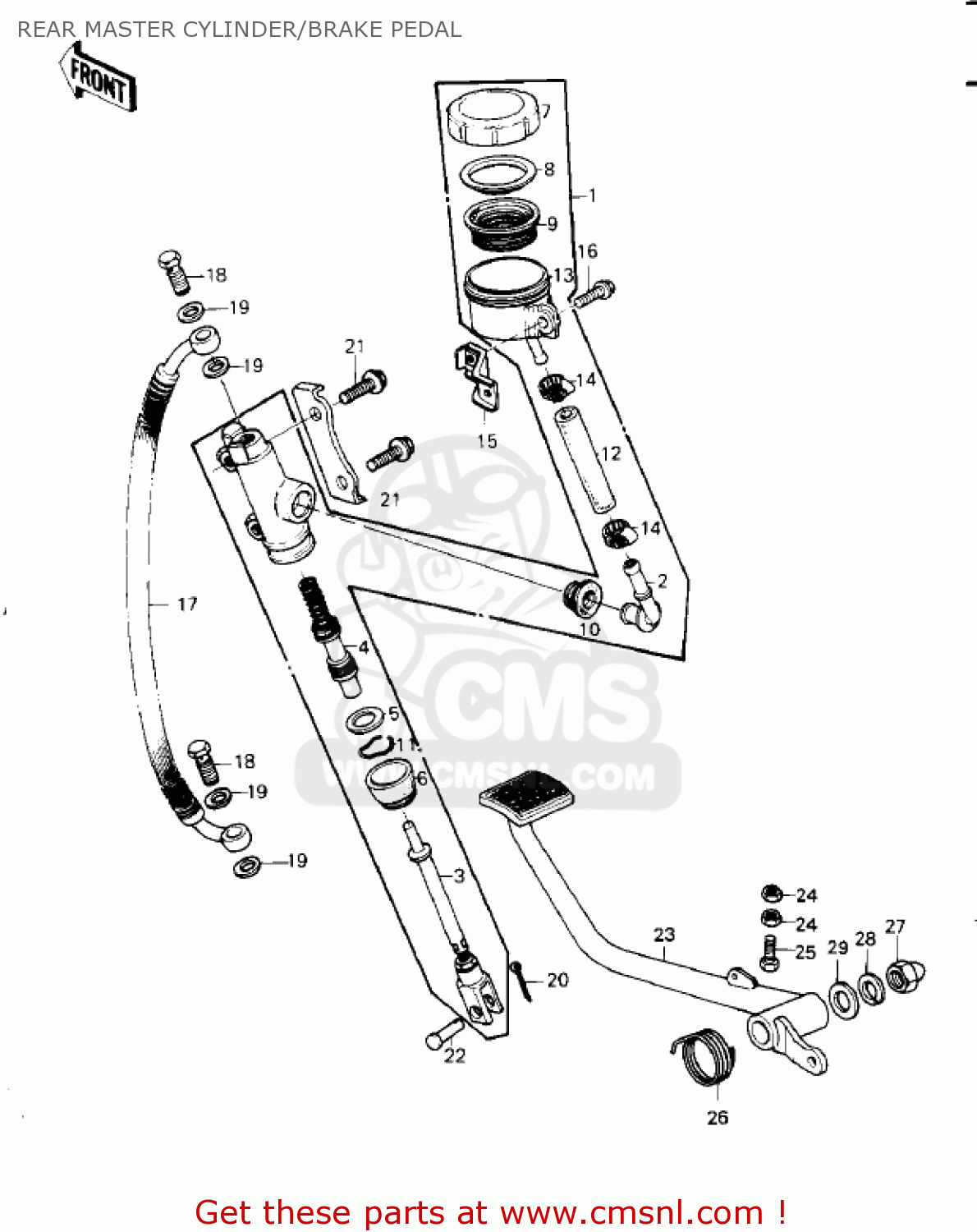

REAR MASTER CYLINDER/BRAKE PEDAL

ref

part #

description

quantity

1

430151047
ref: 1

CYLINDER ASSY,RR MAST

€ 240.00

2

131591005
ref: 2

CONNECTOR

€ 8.00

3

430101003
ref: 3

ROD ASSY,REAR BRAKE

€ 37.50

4

430201015
ref: 4

PISTON-COMP-BRAKE

€ 56.50

5

430221002
ref: 5

STOPPER-BRAKE,PISTON

€ 2.50

6

43024003
ref: 6

COVER-SEAL

€ 15.00

7

430261010
ref: 7

CAP,OIL CUP

€ 22.50

8

430271005
ref: 8

PLATE-DIAPHRAGM

€ 4.50

9

430281016
ref: 9

DIAPHRAGM

€ 15.00

10

430491008
ref: 10

PACKING (NAS)

€ 9.00

11

43058004
ref: 11

RING,ROD STOPPER

€ 4.50

12

430591044
ref: 12

HOSE,BRAKE

€ 9.00

13

430781008
ref: 13

RESERVIOR

€ 13.50

14

920371154
ref: 14

CLAMP,BRAKE HOSE

€ 6.50

15

110341580
ref: 15

BRACKET,RR M/CYLINDER

€ 6.00

16

130B0620
ref: 16

BOLT,HEX HEAD,6X20

€ 2.50

17

430591046
ref: 17

HOSE,RR M/CYLINDER

€ 109.00

18

920021888
ref: 18

BOLT,OIL,L=23

€ 3.50

19

43067001
ref: 19

WASHER,10.5X15X1.5

€ 1.50

20

550D2015
ref: 20

PIN-COTTER,2.0X15

€ 1.00

21

920011095
ref: 21

BOLT,8X28

€ 4.50

22

920431013
ref: 22

PIN

€ 6.50

23

430011040
ref: 23

PEDAL,BRAKE

€ 94.00

24

311B0600
ref: 24

NUT,6MM

€ 0.50

25

112G0620
ref: 25

BOLT 6X20

€ 1.00

26

920811046
ref: 26

SPRING,BRAKE PEDAL RE

€ 7.50

27

92019013
ref: 27

NUT,CAP,LOCK,8MM

€ 5.50

28

461F0800
ref: 28

WASHER-SPRING,8MM

€ 0.50

29

920221561
ref: 29

WASHER,8.5X20X1.6

€ 2.50
