FRAME/FRAME FITTINGS
KZ1000G1 CLASSIC 1980 CANADA

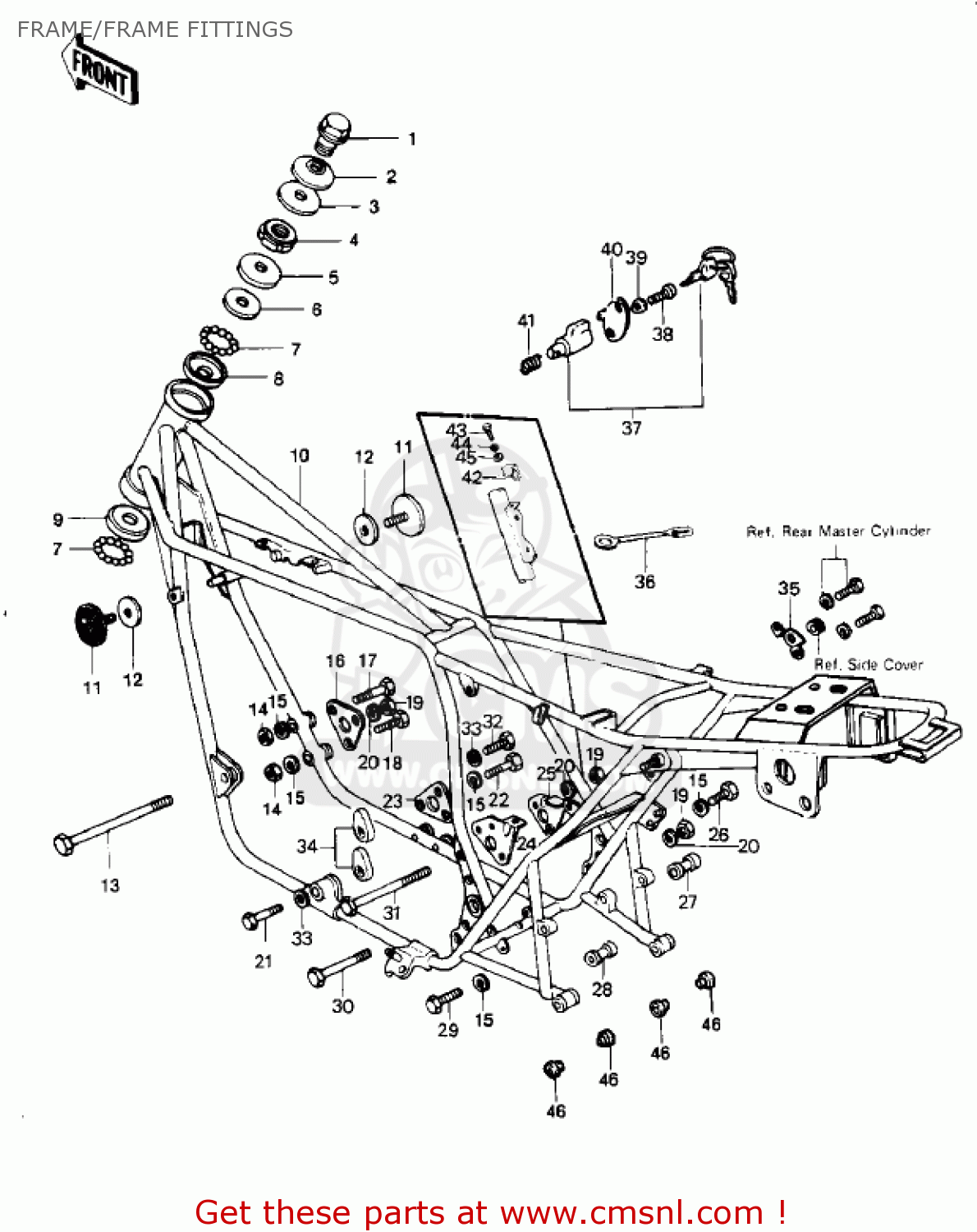

Frame/frame fittings diagram KZ1000G1 CLASSIC 1980 CANADA
FRAME/FRAME FITTINGS KZ1000G1 CLASSIC 1980 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
92007031
ref: 1
BOLT-STEERG STEM HEAD
€ 17.50
2
92022230
ref: 2
WASHER-STEERG STM HD
€ 7.50
3
46100003
ref: 3
WASHER,WAVE
€ 6.50
4
92090007
ref: 4
NUT-STEERING STEM LCK
€ 8.00
5
46098016
ref: 5
CAP,STEERING STEM
€ 4.00
6
92047011
ref: 6
CONE-STRNG STM BRNG
€ 14.50
7
600A0800
ref: 7
BALL-STEEL,1/4
€ 0.50
8
92048006
ref: 8
RACE-STRNG BEARIN-STE
€ 11.50
9
92048008
ref: 9
RACE-STRNG STM BRNG
€ 16.00
10
320021141
ref: 10
FRAME
€ 750.50
11
28012016
ref: 11
REFLECTOR REFLEX
€ 16.00
12
92094011
ref: 12
DAMPER,REFLECTOR
€ 3.00
13
92091022
ref: 13
L = 310 MM
BOLT-ENGINE MOUNTING
€ 18.50
14
311B0800
ref: 14
NUT,8MM
€ 0.50
15
461F0800
ref: 15
WASHER-SPRING,8MM
€ 0.50
16
32030025
ref: 16
BRACKET-ENGINE,FR
€ 11.50
17
920011582
ref: 17
BOLT,FLANGED,8X65
€ 3.50
18
920011581
ref: 18
BOLT,FLANGED,8X60
€ 3.50
19
92019021
ref: 19
NUT,LOCK,10M/M
€ 2.00
20
461F1000
ref: 20
WASHER-SPRING,10MM
€ 0.50
21
920011262
ref: 21
BOLT,HEX HEAD,12X55
€ 6.00
22
115G0818
ref: 22
BOLT SMALL-UPSET
€ 2.50
23
32030026
ref: 23
BRACKET-ENGINE,LWR
€ 11.50
24
32030066
ref: 24
PLATE, REAR ENGINE
€ 10.50
25
320291024
ref: 25
BRACKET,REAR ENG.MOUT
€ 10.50
26
920011578
ref: 26
BOLT,FLANGED,8X40
€ 4.00
27
92027160
ref: 27
COLLAR,L=30.5
€ 7.00
28
92027159
ref: 28
COLLAR-ENG MOUNTING
€ 21.00
29
920011577
ref: 29
BOLT,FLANGED,8X35
€ 2.50
30
92003099
ref: 30
L = 165 MM
BOLT-ENGINE MOUNTING
€ 16.50
31
92091023
ref: 31
L = 250 MM
BOLT-ENGINE MOUNTING
€ 15.50
32
920011265
ref: 32
BOLT,HEX HEAD,12X70
€ 4.50
33
461F1200
ref: 33
WASHER-SPRING,12MM
€ 0.50
34
92016045
ref: 34
NUT,12MM
€ 13.50
35
32049101
ref: 35
BRACKET, SIDE COVER
€ 2.50
36
92037134
ref: 36
CLAMP,OVER FLOW PIPE
€ 7.50
37
270165016
ref: 37
LOCK ASSY,STEERING
€ 97.00
38
92008007
ref: 38
SCREW-TAPPING
€ 2.50
39
92097003
ref: 39
WASHER
€ 2.50
40
110121134
ref: 40
CAP,STEERING LOCK
€ 4.50
41
27032001
ref: 41
SPRING-STEERING LOCK
€ 3.50
42
110341684
ref: 42
SIDE STAND BRACKET
€ 2.00
43
112G0612
ref: 43
BOLT-UPSET
€ 2.50
44
461F0600
ref: 44
WASHER-SPRING,6MM
€ 0.50
45
410B0600
ref: 45
WASHER-PLAIN-SMALL,6M
€ 0.50
46
92092010
ref: 46
BUSHING-MUFFLER FITT
€ 11.00
