STAND

KX80-C2 KX80 1982 USA CANADA

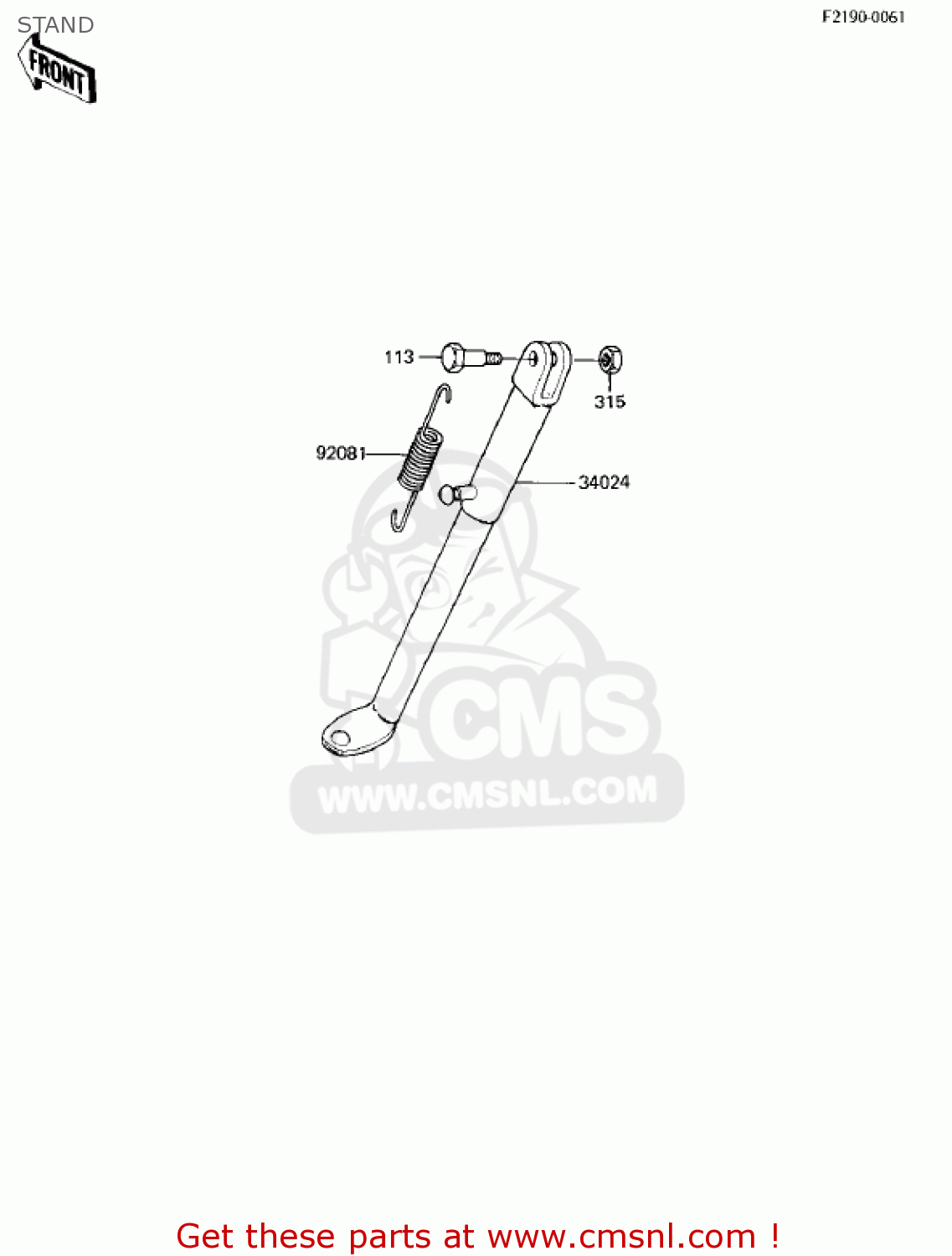

Stand diagram KX80-C2 KX80 1982 USA CANADA

STAND KX80-C2 KX80 1982 USA CANADA

STAND KX80-C2 KX80 1982 USA CANADA

prices are in EUR

ref

part #

description

quantity

34024

340241053
ref: 34024

STAND,SIDE

€ 42.00

92081

34025005
ref: 92081

SPRING-SIDE STAND

€ 5.00

113

112G1030
ref: 113

BOLT UPSET

€ 4.50

315

315B1000
ref: 315

NUT,10MM

€ 0.50
