CRANKCASE ('81 KX80-C1)
KX80-C2 KX80 1982 USA CANADA

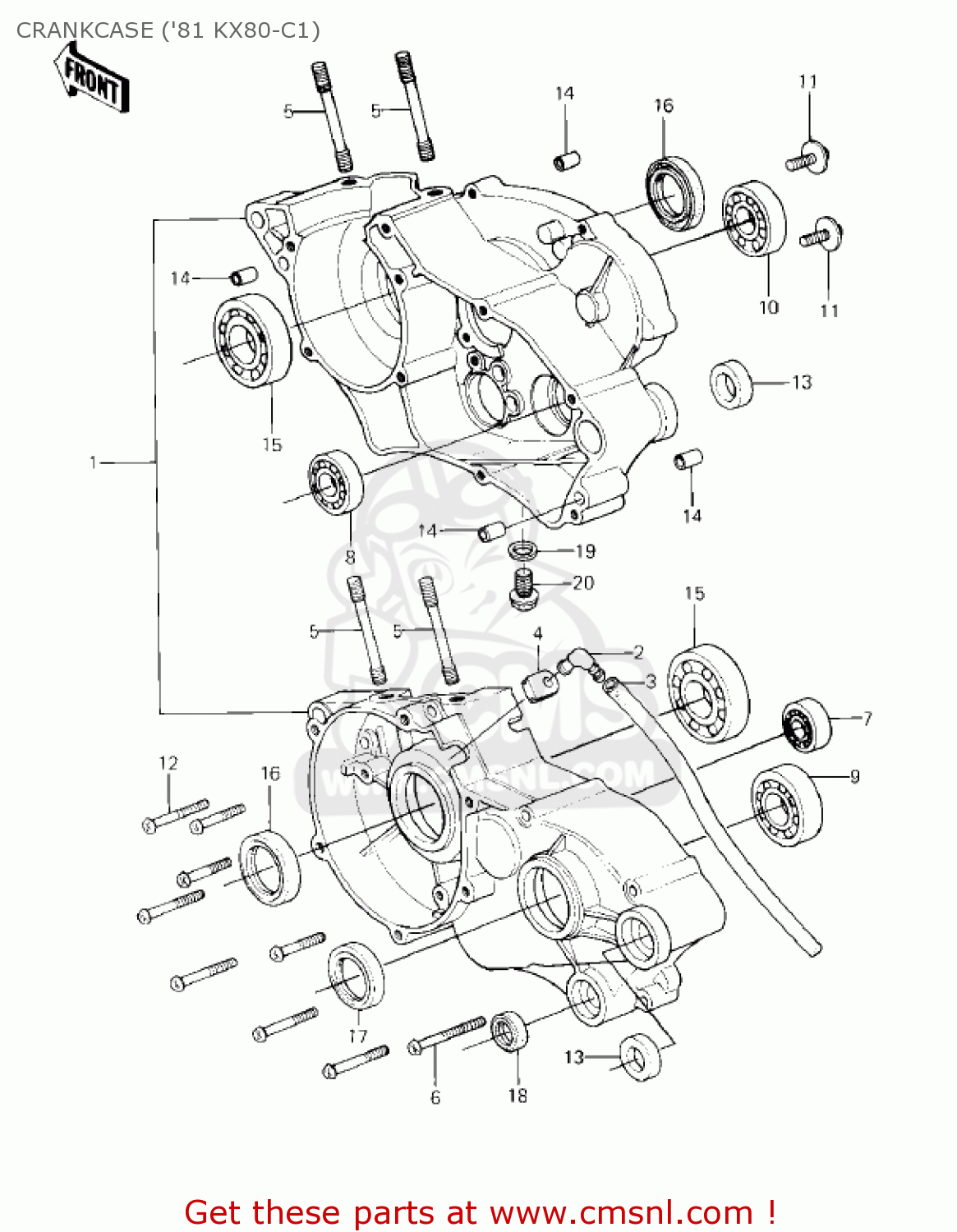

Crankcase ('81 kx80-c1) diagram KX80-C2 KX80 1982 USA CANADA
CRANKCASE ('81 KX80-C1) KX80-C2 KX80 1982 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
140015075
ref: 1
CRANKCASE SET
€ 251.50
2
140691001
ref: 2
BREATHER
€ 17.50
3
920591372
ref: 3
TUBE,6X9X750
€ 9.00
4
92071042
ref: 4
GROMMET
€ 2.50
5
172G08110
ref: 5
STUD,8X110
€ 8.50
6
220B0660
ref: 6
SCREW-PAN HEAD,6X60
€ 2.50
7
920451235
ref: 7
BEARING-BALL,6001C3ML
€ 15.50
8
601B6002
ref: 8
BEARING-BALL,#6002C3
€ 16.00
9
601B6004
ref: 9
BEARING-BALL,#6004C3
€ 10.50
10
601B6203
ref: 10
BEARING-BALL,#6203C3
€ 10.50
11
920091103
ref: 11
SCREW,6X15
€ 2.50
12
220C0635
ref: 12
SCREW-PAN-CROS,6X35,B
€ 3.50
13
920271281
ref: 13
COLLAR
€ 7.00
14
92042007
ref: 14
PIN-DOWEL
€ 4.00
15
920451006
ref: 15
BEARING-BALL,6304SH2,
€ 27.50
16
920491065
ref: 16
OIL SEAL
€ 16.50
17
92050013
ref: 17
OIL SEAL SC25376
€ 9.50
18
92051005A
ref: 18
OIL SEAL,TB13225.5
€ 5.50
19
92065058
ref: 19
GASKET, 10,5X16X1 (NAS)
€ 2.50
20
920661241
ref: 20
PLUG
€ 4.00
