FRONT HUB/BRAKE ('81 KX80-C1)
KX80-C2 KX80 1982 USA CANADA

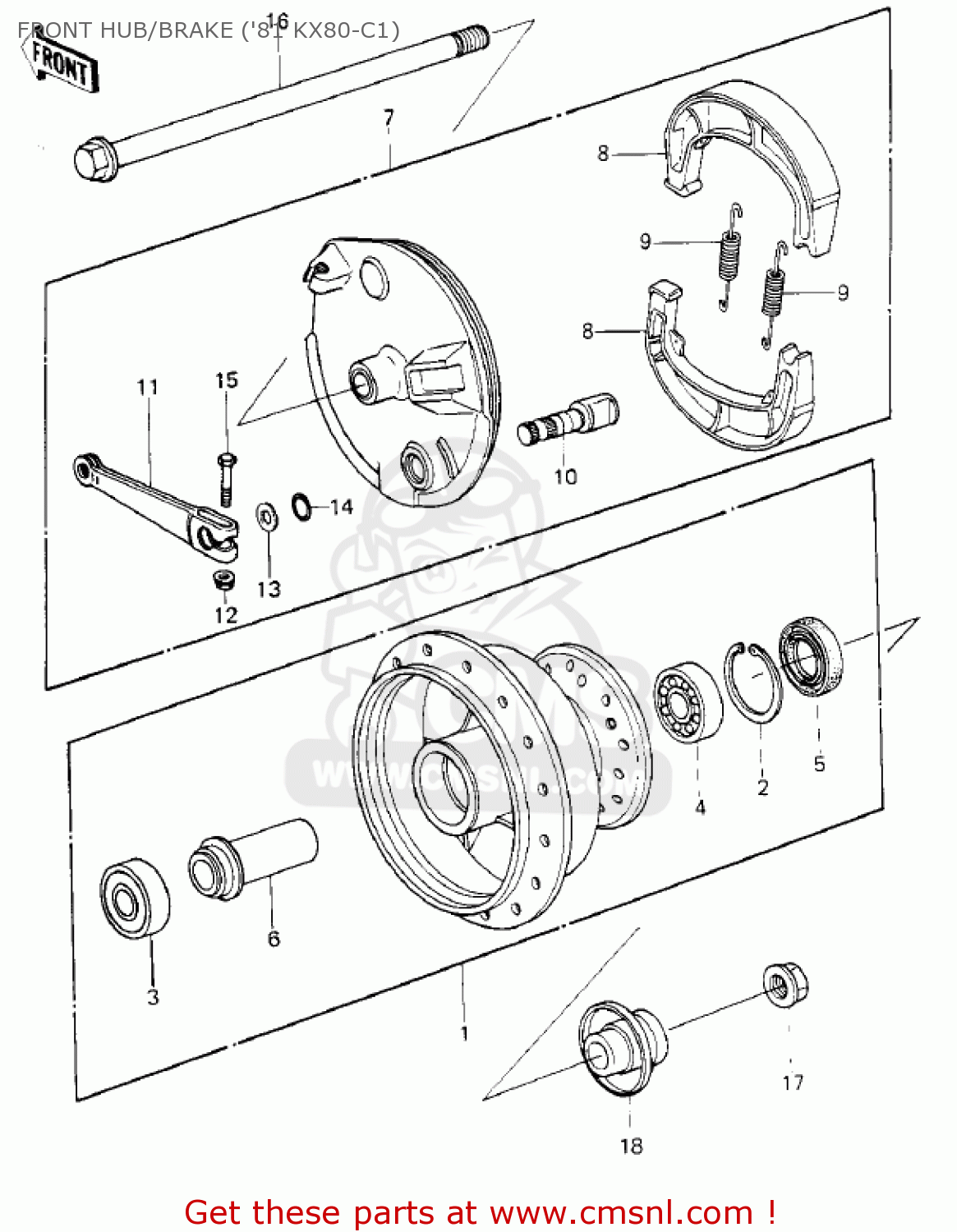

Front hub/brake ('81 kx80-c1) diagram KX80-C2 KX80 1982 USA CANADA
FRONT HUB/BRAKE ('81 KX80-C1) KX80-C2 KX80 1982 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
410341013
ref: 1
DRUM ASSY,FRONT BRAKE
€ 107.50
2
481J3500
ref: 2
CIRCLIP-TYPE-C,35MM
€ 1.00
3
601B6200U
ref: 3
BEARING-BALL,6200LUC3
€ 16.50
4
601B6300
ref: 4
BEARING-BALL,#6300C3
€ 13.00
5
654A203507
ref: 5
OIL SEAL,20X35X7
€ 7.50
6
920271093
ref: 6
COLLAR,FR BRKE DRUM
€ 7.50
7
410351037
ref: 7
PANEL ASSY,FLONT BRAK
€ 158.50
8
410481021
ref: 8
SHOE,BRAKE (MCA)
€ 12.50
9
920811766
ref: 9
SPRING,BRAKE SHOE
€ 5.50
10
410501009
ref: 10
CAM,BRAKE,FRONT
€ 11.50
11
410531011
ref: 11
LEVER,BRAKE CAM,FRONT
€ 36.00
12
41072007
ref: 12
NUT,6MM
€ 2.50
13
92022257
ref: 13
WASHER
€ 9.00
14
670B2012
ref: 14
O RING,12MM
€ 1.00
15
920011135
ref: 15
BOLT,HEX HEAD,6X30
€ 3.00
16
410681011
ref: 16
AXLE,FR,10X191
€ 23.50
17
920151415
ref: 17
NUT,10MM
€ 3.00
18
920271094
ref: 18
COLLAR,FRONT AXLE
€ 12.00
