BRAKE PEDAL/TORQUE LINK ('81 KX8
KX80-C2 KX80 1982 USA CANADA

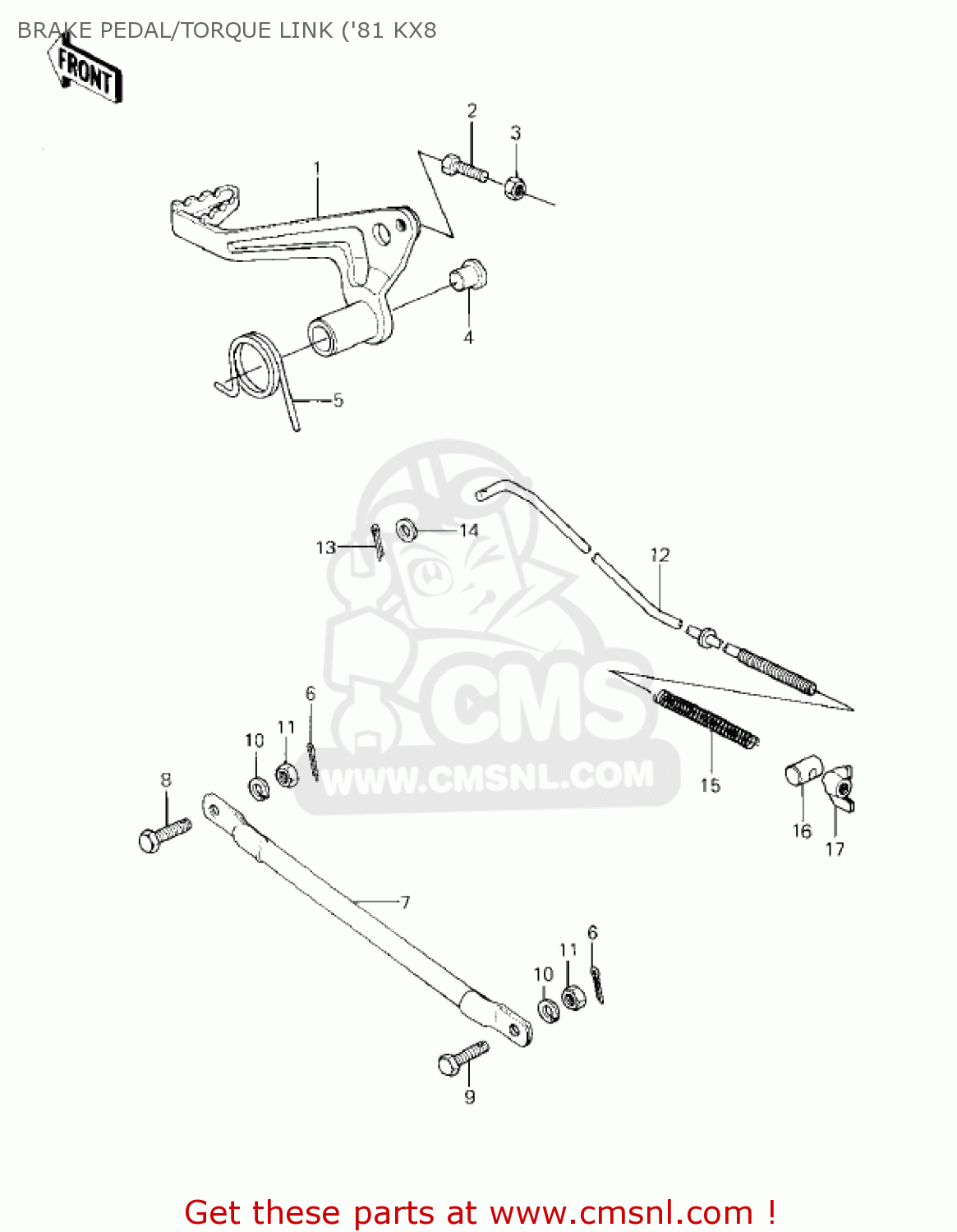

Brake pedal/torque link ('81 kx8 diagram KX80-C2 KX80 1982 USA CANADA
BRAKE PEDAL/TORQUE LINK ('81 KX8 KX80-C2 KX80 1982 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
430011053
ref: 1
LEVER-BRAKE
€ 37.00
2
112G0618
ref: 2
BOLT-UPSET
€ 0.50
3
311B0600
ref: 3
NUT,6MM
€ 0.50
4
920661078
ref: 4
PLUG,BRAKE PEDAL
€ 3.00
5
920811290
ref: 5
SPRING,BRAKE PEDAL
€ 6.00
6
550D2015
ref: 6
PIN-COTTER,2.0X15
€ 1.00
7
430071024
ref: 7
ROD-TORQUE
€ 25.50
8
920011450
ref: 8
BOLT,10X25
€ 3.00
9
92003096
ref: 9
BOLT-TRQ LINK 10X29
€ 7.00
10
461F1000
ref: 10
WASHER-SPRING,10MM
€ 0.50
12
430111028
ref: 12
ROD-BRAKE
€ 12.50
13
550D2015
ref: 13
PIN-COTTER,2.0X15
€ 1.00
14
410B0600
ref: 14
WASHER-PLAIN-SMALL,6M
€ 0.50
15
43012001
ref: 15
SPRING,BRAKE ROD
€ 3.00
16
92043039
ref: 16
PIN,BRAKE ROD
€ 4.50
17
920154004
ref: 17
NUT,BRAKE ADJUSTING
€ 4.50
