FRONT FORK (-F/NO.007513)
KX80-C2 KX80 1982 USA CANADA

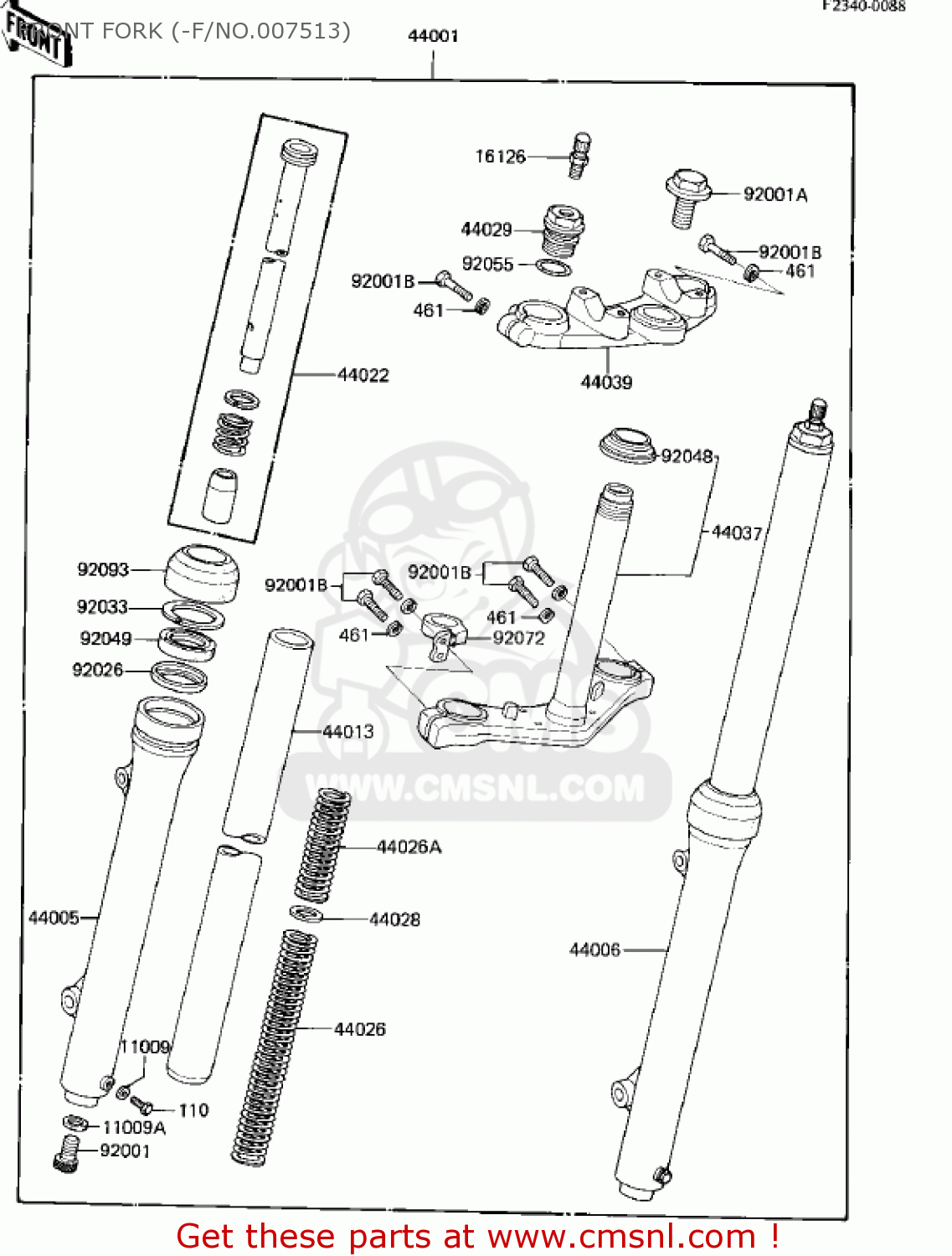

Front fork (-f/no.007513) diagram KX80-C2 KX80 1982 USA CANADA
FRONT FORK (-F/NO.007513) KX80-C2 KX80 1982 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11009
44045047
ref: 11009
GASKET,DRAIN PLUG (NAS)
€ 6.00
11009A
44045051
ref: 11009A
GASKET,FORK CYLINDER (NAS)
€ 4.00
16126
161261041
ref: 16126
VALVE,AIR
€ 12.00
44001
440011360
ref: 44001
FRONT FORK
€ 512.50
44005
440051092
ref: 44005
PIPE-LEFT FORK OUTER
€ 77.50
44006
440061086
ref: 44006
PIPE-RIGHT FORK OUTER
€ 73.50
44013
440131083
ref: 44013
PIPE-FORK INNER
€ 59.00
44022
440221081
ref: 44022
CYLINDER-FORK
€ 18.00
44026
440261134
ref: 44026
SPRING-FRONT FORK
€ 22.00
44026A
440261135
ref: 44026A
SPRING-FRONT FORK
€ 3.50
44028
440281005
ref: 44028
WASHER,FORK SPRING
€ 2.50
44029
440291032
ref: 44029
SEAT-FORK SPRING
€ 17.00
44037
440371079
ref: 44037
HOLDER-FORK UNDER
€ 146.00
44039
440391049
ref: 44039
HOLDER-FORK UPPER
€ 106.00
92001
44041078
ref: 92001
BOLT, FORK CYLINDER
€ 6.50
92001A
920011318
ref: 92001A
BOLT,STEERING STEM
€ 15.50
92001B
920011643
ref: 92001B
BOLT,8X35
€ 3.00
92026
920261099
ref: 92026
SPACER,FORK OUTER
€ 7.00
92033
920331078
ref: 92033
RING-SNAP,FORK OUTER
€ 3.50
92048
92047010
ref: 92048
CONE-STERNG BERG LOW
€ 10.00
92049
920491080
ref: 92049
SEAL-OIL FORK OUTER
€ 14.00
92055
920551124
ref: 92055
RING-0
€ 3.00
92072
920721082
ref: 92072
BAND
€ 7.50
92093
920931066
ref: 92093
SEAL,FORK OUTER
€ 12.50
110
110B0608
ref: 110
BOLT-HEX HEAD,6X8
€ 0.50
461
461F0800
ref: 461
WASHER-SPRING,8MM
€ 0.50
