CARBURETOR
KX80-C2 KX80 1982 USA CANADA

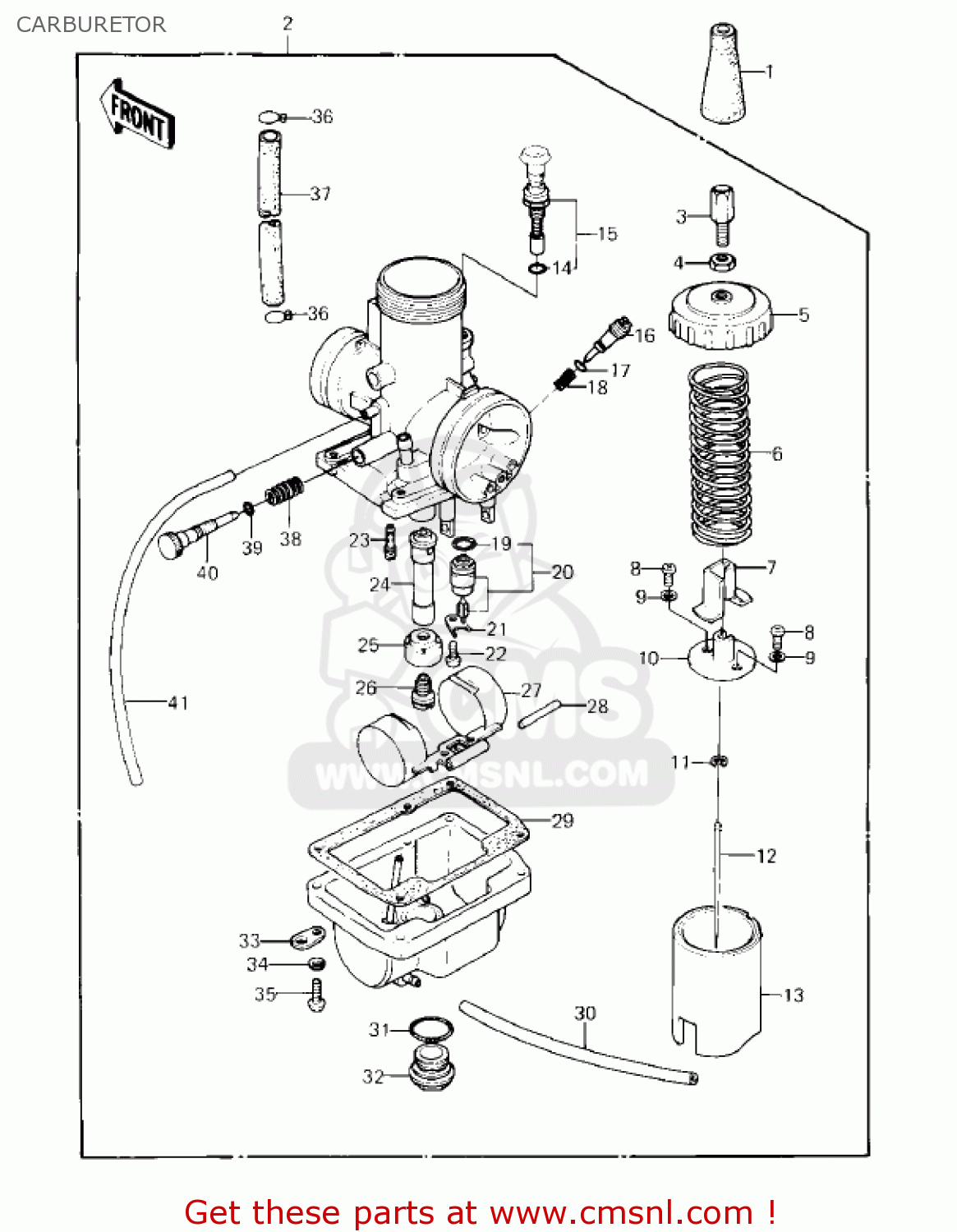

Carburetor diagram KX80-C2 KX80 1982 USA CANADA
CARBURETOR KX80-C2 KX80 1982 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
16036007
ref: 1
BOOT,CABLE ADJUSTER
€ 10.50
2
160011370
ref: 2
CARBURETOR ASSY
€ 144.50
3
16002017
ref: 3
ADJUSTER-CABLE
€ 8.00
4
16003006
ref: 4
NUT-CABLE ADJUST LOCK
€ 4.50
5
16004025
ref: 5
CAP,MIXING CHAMBER
€ 23.50
6
920811388
ref: 6
SPRING,THROTTLE VALVE
€ 9.50
7
140251197
ref: 7
COVER,THROTTLE VALVE
€ 5.50
8
220B0310
ref: 8
SCREW-PAN-CROS,3X10
€ 2.00
9
461F0300
ref: 9
WASHER-SPRING,3MM
€ 0.50
10
131591010
ref: 10
CONNECTOR,THROTTLE
€ 9.00
11
16008010
ref: 11
CLAMP,E-TYPE
€ 5.00
12
160091090
ref: 12
JET NEEDLE,5E28
€ 15.50
13
160251058
ref: 13
VALVE,THROTTLE,CA.3.0
€ 53.50
14
670B1509
ref: 14
O RING,9MM
€ 1.00
15
160161013
ref: 15
PLUNGER,STARTER
€ 24.50
16
160141013
ref: 16
SCREW-PILOT AIR
€ 9.00
17
16038022
ref: 17
GASKET,O-RING
€ 4.50
18
920811153
ref: 18
SPRING,AIR SCREW
€ 3.00
19
920551084
ref: 19
RING-O
€ 1.50
20
160301013
ref: 20
VALVE-FLOAT,#2.5
€ 33.00
21
131691190
ref: 21
PLATE,LOCK
€ 3.50
22
220B0408
ref: 22
SCREW-PAN-CROS
€ 0.50
23
92064022
ref: 23
PILOT JET #30 ISO
€ 11.50
24
160171055
ref: 24
NEEDLE JET,0-8
€ 13.50
25
160651033
ref: 25
HOLDER,MAIN JET RING
€ 10.50
26
92063057
ref: 26
MAIN JET,#130R
€ 9.50
26
92063055
ref: 26
MAIN JET,#125R
€ 9.50
26
920631100
ref: 26
JET-MAIN,#A127.5
€ 9.50
26
92063103
ref: 26
MAIN JET,#132.5R
€ 8.50
26
92063104
ref: 26
JET-MAIN,#135R
€ 8.50
27
160311011
ref: 27
FLOAT
€ 35.00
28
16032003
ref: 28
FLOAT PIN
€ 4.00
29
110091178
ref: 29
GASKET,FLOAT CHAMBER
€ 7.00
30
920811152
ref: 30
SPRING,THROTTLE ADJST
€ 4.00
31
920551076
ref: 31
RING-O
€ 6.00
32
160491003
ref: 32
COVER,MAIN JET
€ 8.00
33
131691226
ref: 33
PLATE,TUBE CLAMP
€ 5.00
34
461F0400
ref: 34
WASHER-SPRING,4MM
€ 0.50
35
220B0416
ref: 35
SCREW-PAN-CROS
€ 2.00
36
92037072
ref: 36
CLAMP,TUBE
€ 4.00
37
92059130
ref: 37
PIPE,FUEL
€ 15.50
38
920811152
ref: 38
SPRING,THROTTLE ADJST
€ 4.00
39
92055044
ref: 39
'O' RING
€ 7.00
40
160211012
ref: 40
SCREW-THROTTLE STOP
€ 10.50
41
920591755
ref: 41
TUBE,3X5X300
€ 6.00
