REAR HUB/BRAKE/CHAIN ('82 KX80-C
KX80-C2 KX80 1982 USA CANADA

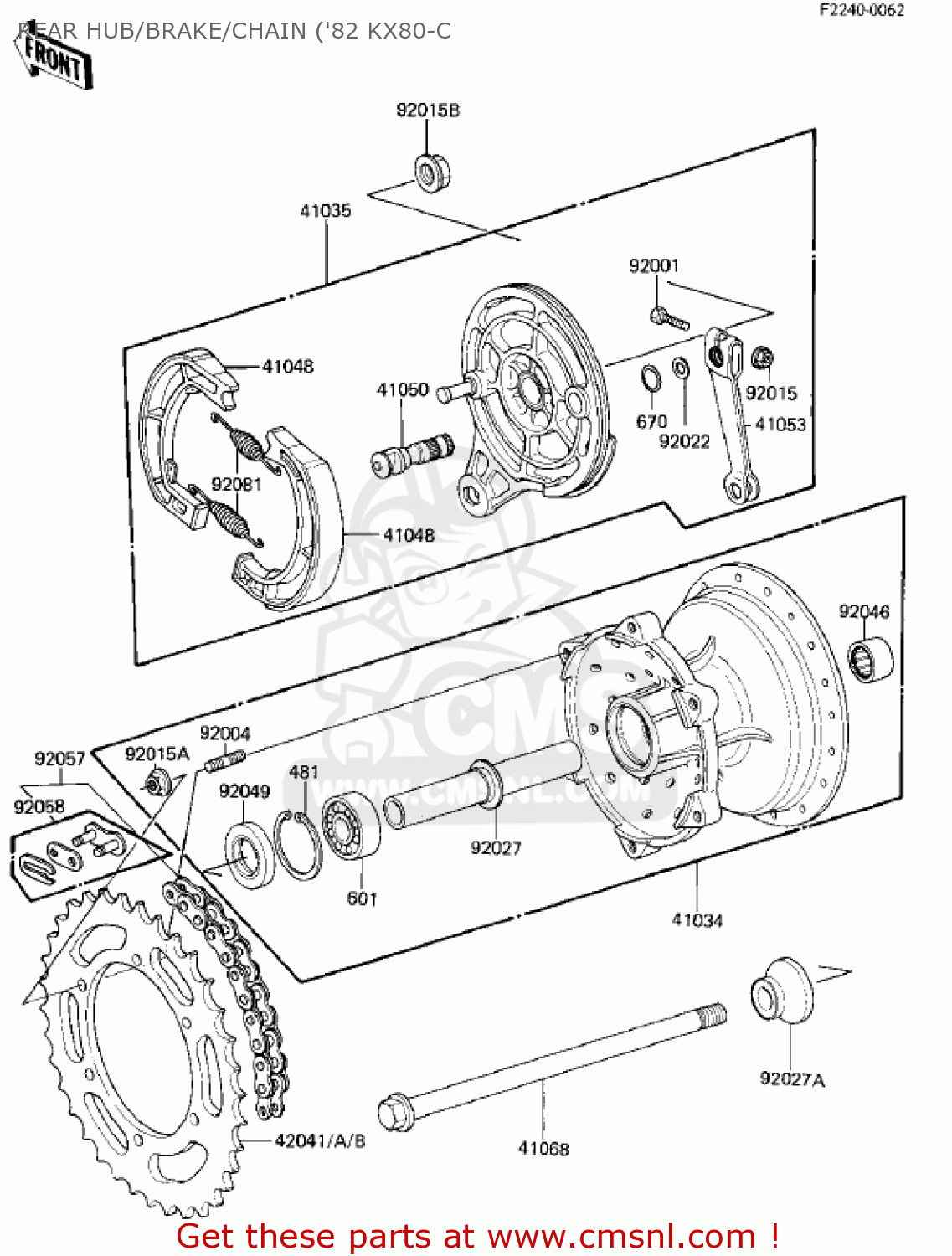

Rear hub/brake/chain ('82 kx80-c diagram KX80-C2 KX80 1982 USA CANADA
REAR HUB/BRAKE/CHAIN ('82 KX80-C KX80-C2 KX80 1982 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
41034
410341054
ref: 41034
DRUM-ASSY,REAR BRAKE
€ 172.50
41035
410351084
ref: 41035
PANEL-ASSY-BRAKE,RR
€ 125.50
41048
410481021
ref: 41048
SHOE,BRAKE (MCA)
€ 12.50
41050
410501021
ref: 41050
CAM-BRAKE
€ 14.50
41053
410531010
ref: 41053
LEVER,BRAKE CAM,REAR
€ 40.00
41068
410681036
ref: 41068
AXLE,RR,12X211
€ 30.00
42041
420411016
ref: 42041
REAR SPROCKET,48T
€ 35.00
42041A
420411034
ref: 42041A
REAR SPROCKET,50T
€ 35.00
42041B
420411035
ref: 42041B
REAR SPROCKET,52T
€ 35.00
92001
920011135
ref: 92001
BOLT,HEX HEAD,6X30
€ 3.00
92004
920041015
ref: 92004
STUD,8X17
€ 2.50
92015
41072007
ref: 92015
NUT,6MM
€ 2.50
92015A
920151022
ref: 92015A
NUT, 8MM
€ 0.50
92015B
920151156
ref: 92015B
NUT,12MM
€ 4.50
92022
92022257
ref: 92022
WASHER
€ 9.00
92027
920271379
ref: 92027
COLLAR,L=110
€ 17.00
92027A
920271381
ref: 92027A
COLLAR,REAR AXLE,LH
€ 10.50
92046
920461040
ref: 92046
BEARING-NEEDLE,RNA491
€ 31.50
92049
92050013
ref: 92049
OIL SEAL SC25376
€ 9.50
92057
920571102
ref: 92057
CHAIN ASSY,EK420SHG
€ 26.50
92058
920581016
ref: 92058
JOINT,CHAIN
€ 4.50
92081
920811766
ref: 92081
SPRING,BRAKE SHOE
€ 5.50
481
481J3700
ref: 481
CIRCLIP-TYPE-C,37MM
€ 1.50
601
601B6301
ref: 601
BEARING-BALL,#6301C3
€ 13.00
670
670B2012
ref: 670
O RING,12MM
€ 1.00
