GENERATOR

KX80-C2 KX80 1982 USA CANADA

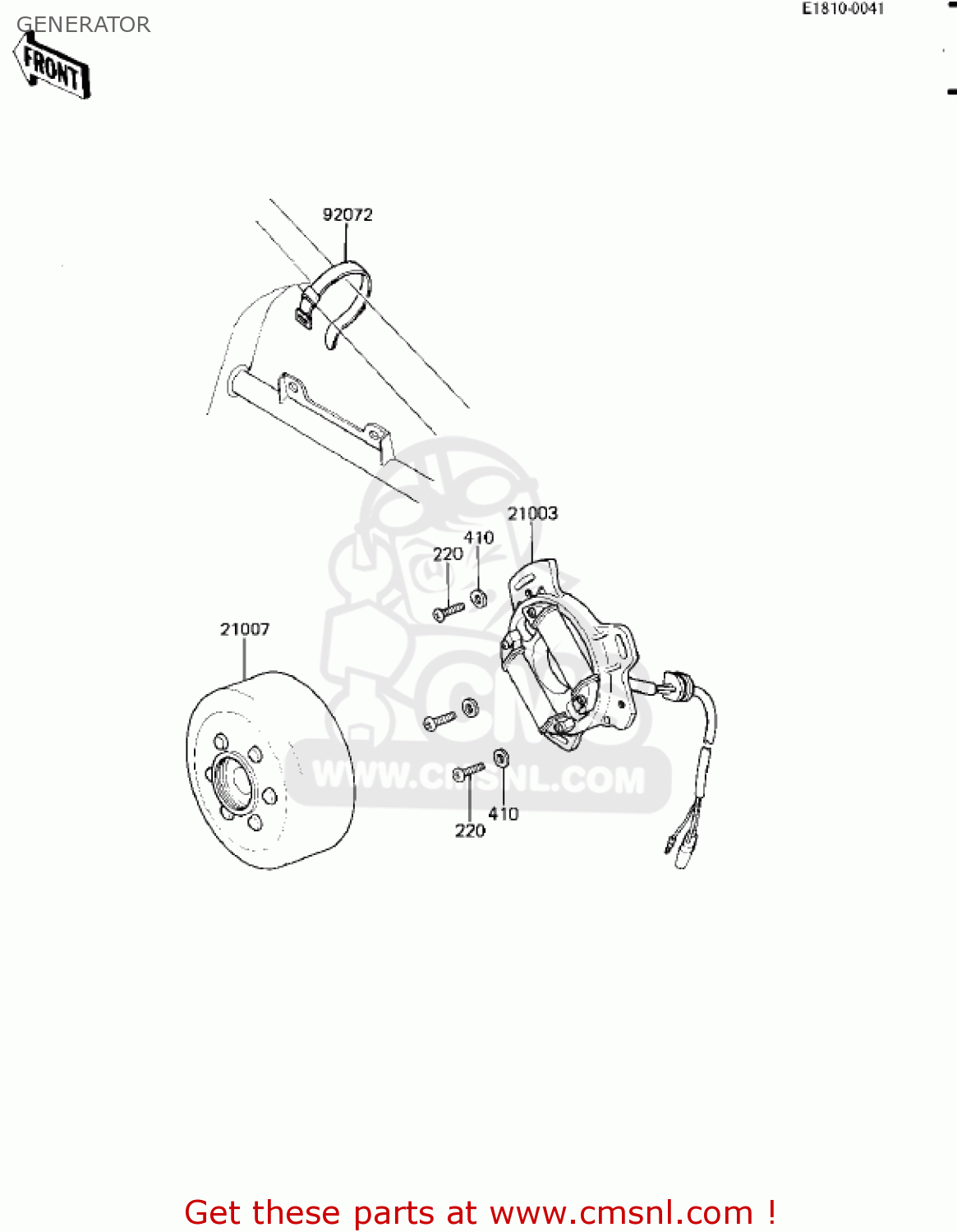

Generator diagram KX80-C2 KX80 1982 USA CANADA

GENERATOR KX80-C2 KX80 1982 USA CANADA

GENERATOR KX80-C2 KX80 1982 USA CANADA

prices are in EUR

ref

part #

description

quantity

21003

210031042
ref: 21003

STATOR

€ 255.50

21007

210071038
ref: 21007

ROTOR

€ 281.00

92072

92072056
ref: 92072

BAND,RUBBER

€ 3.00

220

220B0514
ref: 220

ACREW-PAN HEAD,5X14

€ 2.50

410

410B0500
ref: 410

WASHER-PLAIN-SMALL,5M

€ 0.50
