REAR HUB/BRAKE/CHAIN ('81 KX80-C
KX80-C2 KX80 1982 USA CANADA

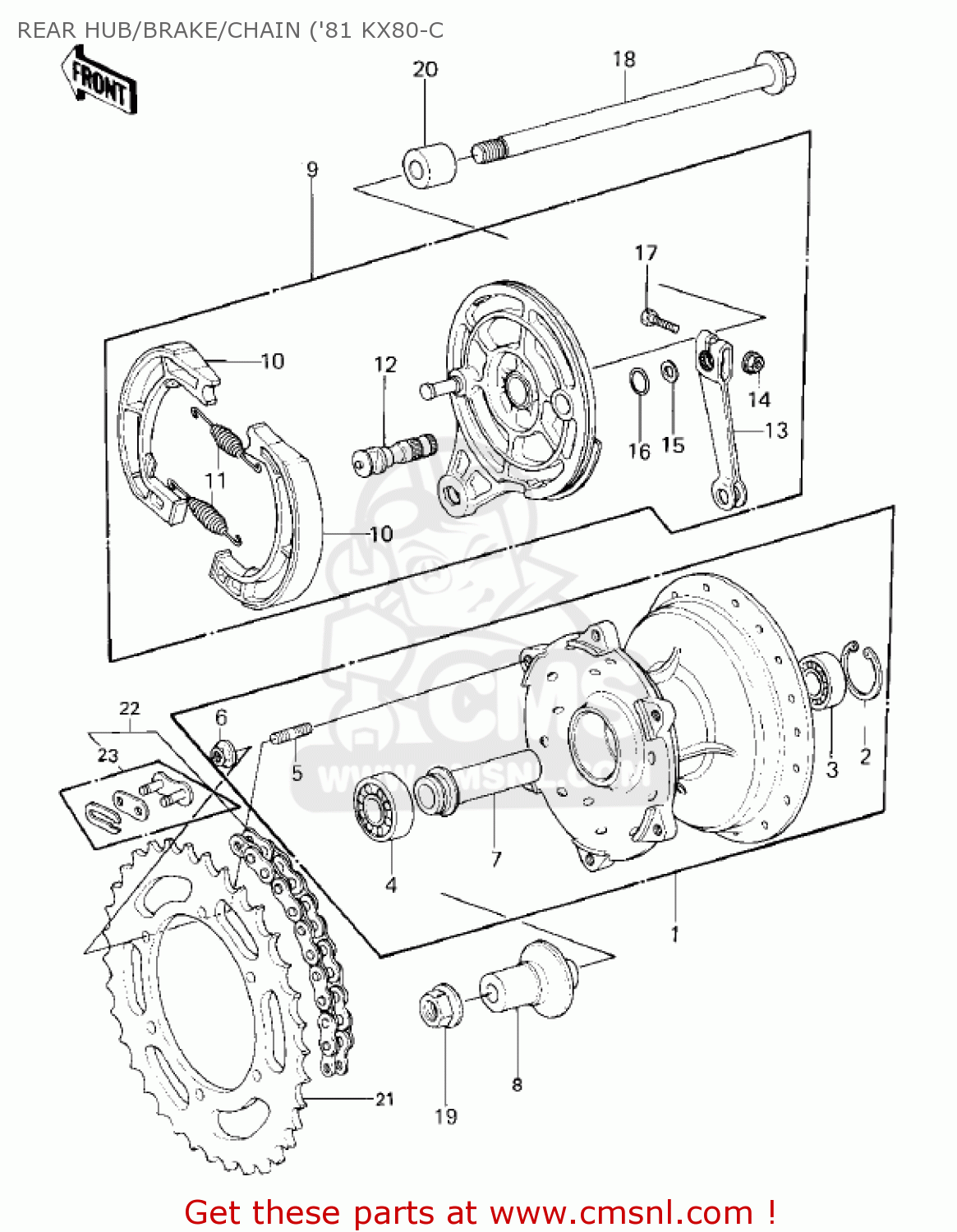

Rear hub/brake/chain ('81 kx80-c diagram KX80-C2 KX80 1982 USA CANADA
REAR HUB/BRAKE/CHAIN ('81 KX80-C KX80-C2 KX80 1982 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
410341044
ref: 1
DRUM ASSY,REAR BRAKE
€ 201.50
2
481J3200
ref: 2
CIRCLIP-TYPE-C,32MM
€ 1.00
3
601B6201U
ref: 3
BEARING-BALL,#6201LUC
€ 18.50
4
601B6203U
ref: 4
BEARING-BALL,#6203LUC
€ 35.50
5
920041015
ref: 5
STUD,8X17
€ 2.50
6
920151022
ref: 6
NUT, 8MM
€ 0.50
7
920271344
ref: 7
COLLAR,RR BRAKE DRUM
€ 21.00
8
920271345
ref: 8
COLLAR,L=39
€ 16.50
9
410351032
ref: 9
PANEL ASSY,REAR BRAKE
€ 136.50
10
410481021
ref: 10
SHOE,BRAKE (MCA)
€ 12.50
11
920811766
ref: 11
SPRING,BRAKE SHOE
€ 5.50
12
410501012
ref: 12
CAM,BRAKE,REAR
€ 13.50
13
410531010
ref: 13
LEVER,BRAKE CAM,REAR
€ 40.00
14
41072007
ref: 14
NUT,6MM
€ 2.50
15
92022257
ref: 15
WASHER
€ 9.00
16
670B2012
ref: 16
O RING,12MM
€ 1.00
17
920011135
ref: 17
BOLT,HEX HEAD,6X30
€ 3.00
18
410681036
ref: 18
AXLE,RR,12X211
€ 30.00
19
920151156
ref: 19
NUT,12MM
€ 4.50
20
920271247
ref: 20
COLLAR,REAR AXLE
€ 5.50
21
420411034
ref: 21
REAR SPROCKET,50T
€ 35.00
21
420411016
ref: 21
REAR SPROCKET,48T
€ 35.00
21
420411035
ref: 21
REAR SPROCKET,52T
€ 35.00
21
420411072
ref: 21
SPROCKET,REAR,54T
€ 27.00
22
920571102
ref: 22
CHAIN ASSY,EK420SHG
€ 26.50
23
920581016
ref: 23
JOINT,CHAIN
€ 4.50
